Getting Started > Module Essentials > Accessing Modules >

Using the Desktop Module Editor

The Desktop Module Editor lets you preview an effect before it is applied to the clip. The option is only available for certain tools, and is indicated by an “E” that appears on the button prior to selecting the clip destination.

You can preview operation results using the Desktop Module Editor. This feature allows you to perform the same functions as on the Desktop, but with the added benefit of being able to preview and, in most cases, modify, the effect before it is applied to the clip.

The desktop Module Editor is available for the following Processing commands:

• Average
• Compound
• Flip
• Logic Ops
• Auto Matte
• Monochrome
• Negative
• Posterise

The desktop Module Editor is available for the following Format commands:

• Deinterlace
• Interlace
• Field Merge
• Film Compress
• Film Expand
• Deal
• Combine

To preview an operation using the Module Editor:

1. Click the button for the operation you want to use.
2. Select the source clips.
   NoteWhen using the same material as in the previous session, you can automatically enter an editing module by first clicking the button when the S appears, and then selecting a destination.

   When the Editing Module option is available for a tool, an E appears on the button.




3. Click the operation button again.
4. Select a destination.

   The editing module appears. Use the controls in the editing module as you would on the Desktop.

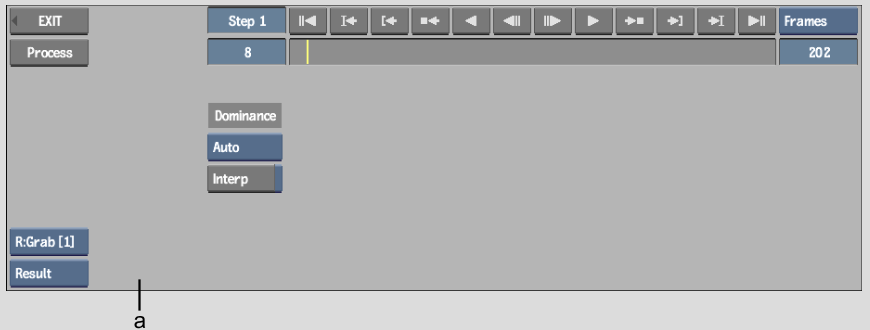

   (a) Deinterlace editing module
