Connecting Clips and Nodes




As you add nodes, you connect them to the process tree by linking the result from one node and using it as a source (front, matte, or back) for the next node in the process tree or by linking backward from the source of a node to the output of another (to reuse a node's output). The only exceptions are the BFX Output, Output, and Export nodes: you cannot link from their result.

To connect nodes, you use the coloured tabs on the node's left side; these tabs are called source tabs. The colours of the source tabs correspond with the cursor colours when selecting clips from the Inferno reels. The yellow tab on the node's right side is called the Result tab. You use the Result tab of a node to connect its result to the front, back, or matte tab of another node.

Show small imageShow large image

(a) Matte tab  (b) Back tab  (c) Front tab  (d) Warning tab  (e) Result tab  (f) Cache tab  

Node source tabs are described in the following table.

Tab Colour Description
Front Red Connects a front clip to a node.
Back Green Connects a back clip to a node.
Matte Blue Connects a matte clip to a node.
Audio Aqua Connects a clip with audio to an Output node.
Result Yellow Connects the result of a node to other nodes.
Output Matte Blue Connects the output matte of a node to other nodes.
Cache Grey and yellow circle Enables, disables, or sets cache as read only for the selected node. See Caching Frames.
Warning Red circle Warns you that clip input to this node is unconnected or missing media, or clips parented to this node do not share the same resolution or a compatible bit-depth. A message also appears in the message bar (press Alt+E and mouse over the node to redisplay the message.)

The available source tabs depend on the node. If the node accepts a front, back, and matte clip, all coloured source tabs are available. If the node only accepts a front clip, the red source tab is available and the other source tabs are grey. The Result tab is always available, except on the BFX Output, Output, and Export nodes. When a source tab or Result tab is not connected to a clip or to another node, the coloured tabs are dimmed.

There are several different ways of connecting clips or nodes together. You can connect them manually or automatically. You can also quickly connect several nodes and clips together using the tap-tap feature.

To connect a clip to a node:

  1. Click the clip and drag the cursor to a source tab on a node. Alternatively, select Parent from the Edit Mode box and drag the cursor to a source tab.

    Show small imageShow large image

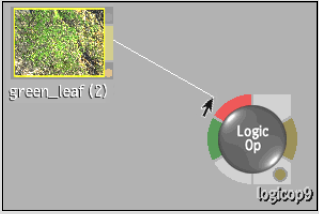

    Dragging from a clip to the front tab of a Logic Op

    Show small imageShow large image

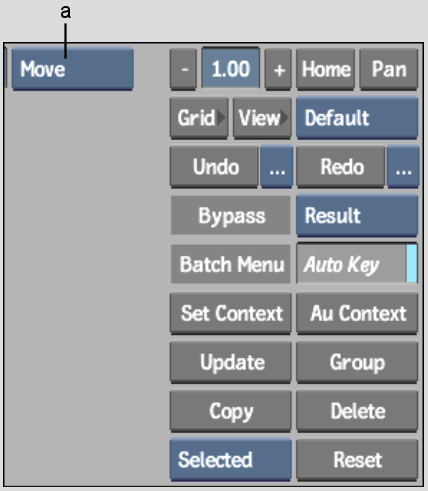

    (a) Edit Mode box  

    An arrowed line is drawn from the clip to the source tab. The colour of the line corresponds to the colour of the source tab to which the clip is connected.

    For example, if you want a clip to be used as the front clip for the Colour Correct node, a red arrowed line is drawn in the schematic connecting the clip and the node.

To connect nodes manually:

  1. Click the Result tab of a node whose result you want to use and drag the cursor to one of the source tabs of the next node in the process tree.

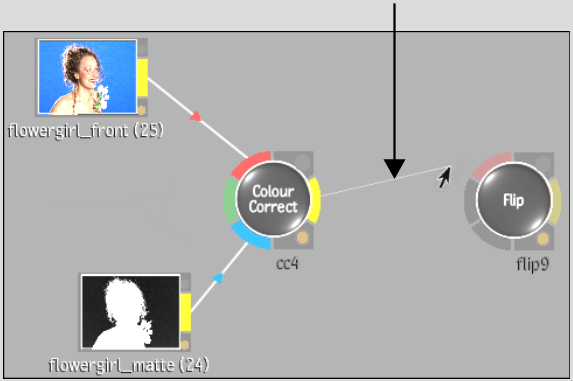

    An arrowed line is drawn from the node to the source tab. For example, click the Result tab of the Colour Correct node and drag the cursor to the front tab of the Flip node to flip the result of the colour-corrected clip.

    Show small imageShow large image

To connect nodes automatically:

  1. Use the Autolink feature by pressing Shift and dragging a node to another node so their tabs touch.

    The nodes are connected.

    NoteUsing Autolink to connect nodes will not connect an audio input to an Export or Output node.

    Action: Press and hold Shift while dragging the Negative node to the Keyer node

    Show small imageShow large image

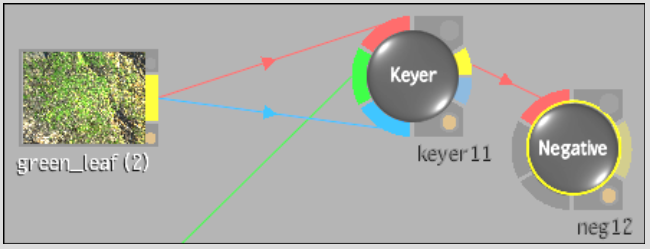

    Result: The Keyer output is the front for the Negative node

    Show small imageShow large image

To create a node connection using tap-tap linking:

  1. Click the socket of the first node or clip you want to connect.
  2. Click the socket of the node you want to connect the first node to.

    The nodes are connected.

    NoteIf the first node you click is an Output node, you can add as many subsequent input socket connections as you like. To finish selecting, click anywhere in the schematic work area.

To simultaneously break a connection and add a new input:

  1. Connect the new clip or node's Result tab to the source tab of a node that is already connected to a different source.

    The source tab's original link is disconnected and replaced with a connection to the new Result tab.

To disconnect nodes or clips:

  1. Drag the cursor across the connecting line between a clip and a node or between two nodes.

    The arrowed line is cut and the source tab is dimmed.

  2. You can cut multiple connections in a single stroke by clicking and dragging over several connecting lines in the schematic.
    TipTo quickly disconnect a node, press Ctrl+Alt and click the node to disconnect.
