Inputting and Outputting Media > Clip Input/Output Using a VTR > Inputting Clips From a VTR >
Accessing the Input Clip Menu




Use the Input Clip menu to adjust the settings for the clip you want to input.

You can access the Input Clip menu from the Library menu on the desktop.

To access the Input Clip menu from the Desktop:

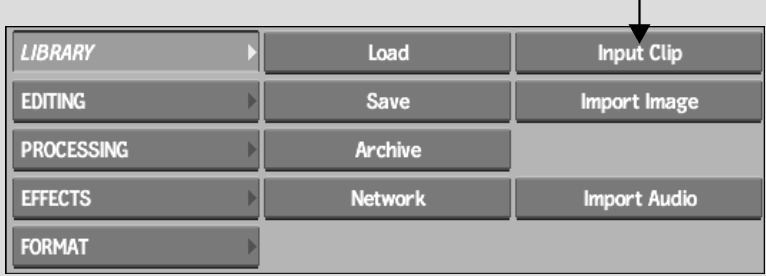

  1. In the Main menu, click Library (or press 1).
  2. Click Input Clip.

    Show small imageShow large image

  3. Click in a destination reel where you want the clips to be captured.

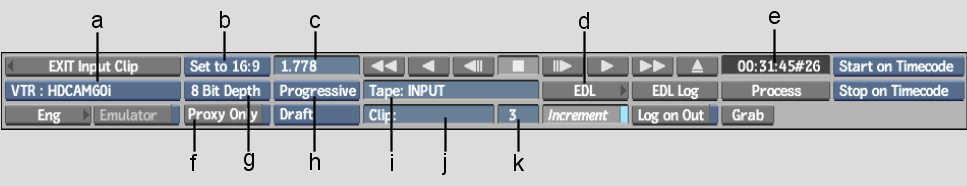

    The Input Clip menu appears.

Show small imageShow large image

(a) Device Name box  (b) Aspect Ratio box  (c) Aspect Ratio field  (d) EDL button  (e) Current Timecode field  (f) Proxy Quality box  (g) Bit Depth box   (h) Scan mode box    (i) Tape Name field  (j) Clip Name field  (k) Increment Name field
