Interpolating Features




Set interpolation values for each set of Spline nodes you linked in the Distort schematic.

The interpolation value determines the percentage that the feature defined in the Input1 source spline mixes with the feature defined in the Input2 source spline.

To set the interpolation value between linked splines:

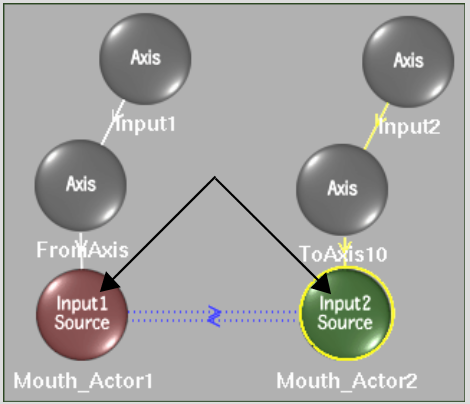

  1. Select the Input1 or Input2 source Spline node of a linked pair in the Distort schematic.

    Show small imageShow large image

    The current interpolation value for the linked splines appears in the Interpolation field.

    Show small imageShow large image

  2. Set the value for the interpolation. A value of 0 results in the Input1 feature remaining in its original form, while a value of 100 results in the Input1 feature distorting into the shape defined by the Input2 spline.
