Inputs/Outputs




Depending on how your audio is set up, different input and output settings appear.

Show small imageShow large image

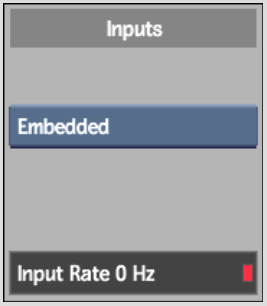

Input Source boxUse this box to select AES-BNC, AES-XLR, or Embedded. AES uses the device connected to the AES connection on the video I/O board (BNC or XLR). Embedded extracts the audio tracks from the video signal.

Input Sampling Rate fieldThis locked field displays the current input sampling rate.

Output Source fieldThis locked field displays all current outputs.

Output Sampling Rate fieldThis locked field displays the current output sampling rate.
