Editing > Soft Effects > Creating Axis Soft Effects >
Working with Axis Soft Effect Layers




Working with global and axis transitions is different in the Axis Editor than in Action. Only one layer is available with the Axis soft effect.

Show small imageShow large image

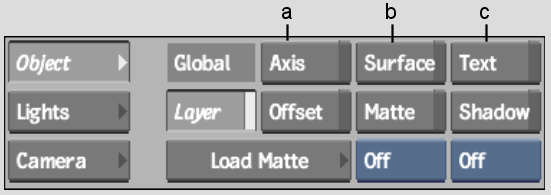

(a) Axis button  (b) Surface button  (c) Text button  

To work with a specific axis:

  1. Click Object.
  2. Select the axis you want to modify, or click Surface, Text, or Axis.

    Show small imageShow large image

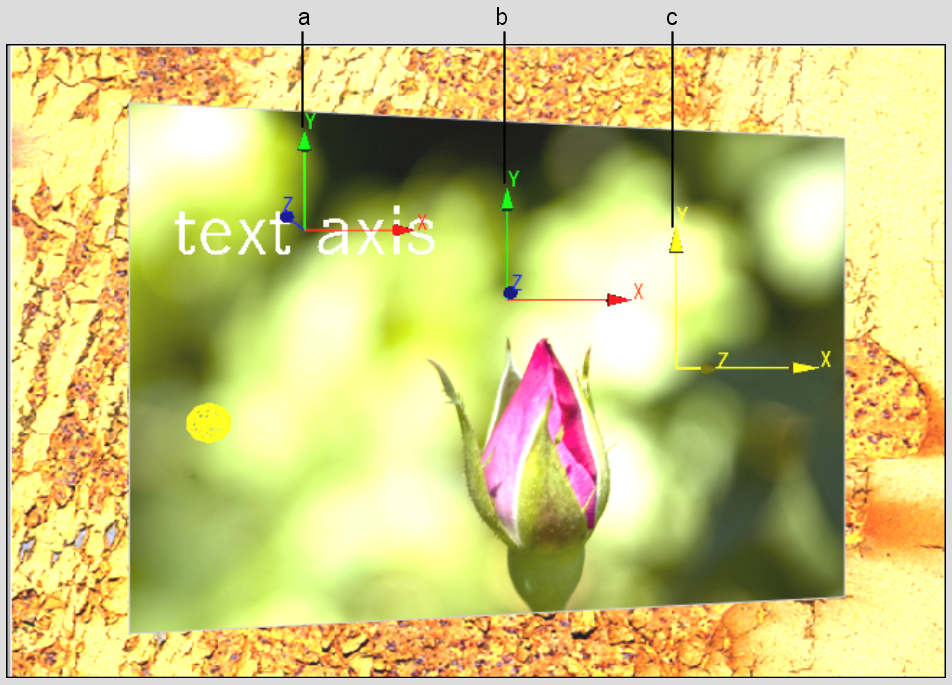

    (a) Text axis (b) Global axis (controls each axis in the scene) (c) Surface axis 

  3. Modify the attributes of the selected axis. You can modify attributes using the respective fields or select an option from the Edit Mode box and work directly in the image window.

To work with the layer:

  1. Click Object.
  2. Click Layer.
  3. Click the border of the layer to select it.
  4. Modify the layer attributes, You can modify attributes using the respective fields or select an option from the Edit Mode box and work directly in the image window.
