Inserting Frames




You can insert a portion of a source clip after a selected frame in the target clip.

To insert frames:

  1. Click Insert in the Editing menu.
  2. Select Src In/Out Rec In from the Insert Mode option box.
  3. Select the in point of the source clip (the starting frame of the segment that you want to insert).
  4. Select the out point of the source clip (the ending frame of the segment that you want to insert).
  5. Select an in point frame in the target clip.

    The frames between the in point and out point of the source clip are inserted after the selected frame (the in point) in the target clip. The remaining frames of the target clip are placed at the end of the inserted frames.

    Show small imageShow large image

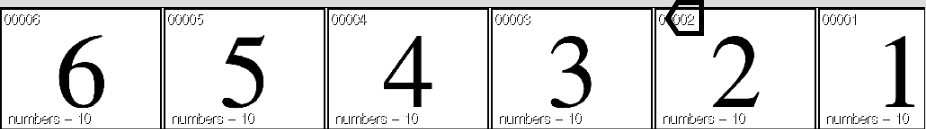

    Action: Select the in point of the source clip

    Show small imageShow large image

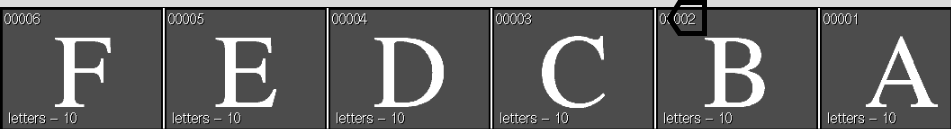

    Action: Select the out point of the source clip

    Show small imageShow large image

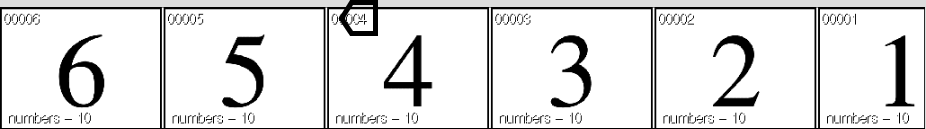

    Action: Select an in point frame on the target clip

    Show small imageShow large image

    Result: The selected frames are inserted into the target clip
