Previewing Results




While creating your process tree, you can preview results at any time. If you do not like the result of one operation, you can modify or delete it without affecting the other operations in the sequence. You can preview your results in Batch by:

To preview results using proxies:

  1. Click Setup.
  2. In the Setup menu, enable Auto Update.
  3. In the schematic, select the node whose result you want to preview.
  4. Double-click the Result tab. Alternatively, press T as you click the Result tab.

    The result proxy appears and shows the result up to and including the selected node.

    Show small imageShow large image

  5. To close the proxy, double-click the Result tab again, or press T as you click the Result tab.

To preview results in the image window:

  1. Select the node whose results you want to preview.

    Show small imageShow large image

    (a) For example, click the Keyer node  

  2. In the Batch menu, select Result from the View box.

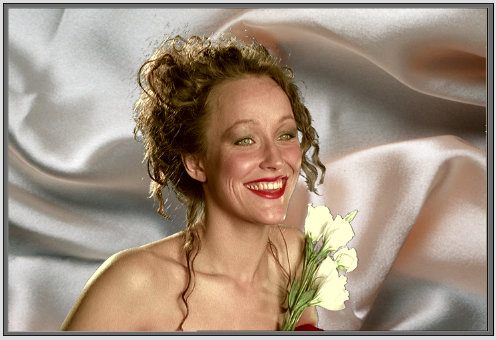

    The intermediate nodes are processed up to and including the selected node, and the result of the selected node is displayed in the image window.

    Show small imageShow large image
