Effects > Keyer >
Accessing the Keyer




You load three clips into the Keyer to create a composite: a front clip, a back clip, and a key-in clip. The key-in clip, which is usually the same as the front clip, is used to create the matte for the front clip.

To access the Keyer:

  1. In the Main menu, click Effects, and then Keyer.
  2. Select the front, back, and key-in clips. Make sure the front, back, and matte clips are the same resolution. If not, resize them. See Accessing Resize and Resize Settings.
    TipUse the S option on the Keyer button on the EditDesk to automatically load the same clips used in the previous session. Click the S option, and then select the destination.
  3. Select the destination.

    The Keyer appears.

    Show small imageShow large image

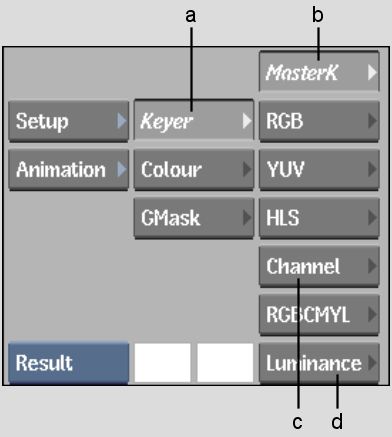

    (a) Keyer button  (b) Master Keyer button  (c) Channel button  (d)  Luminance button
