Cropping the Key Area




You can limit the keyed area by drawing a crop box on the image.

To draw the crop box:

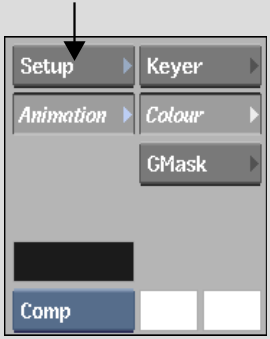

  1. In the Keyer, click Setup.

    Show small imageShow large image

    The Setup menu appears.

    Show small imageShow large image

  2. Enable Draw Crop.
  3. Draw the crop box by selecting a point on the image and dragging the cursor diagonally.
  4. Click Crop to enable the crop box.

    Keying operations now affect only the cropped area.

    NoteWhen the clip is processed with the crop box enabled, only the cropped area is keyed. Remember to disable the crop box if you want to apply the key to the entire frame.
