Using the Wipe Schematic

The schematic uses nodes to represent the elements in the scene. The schematic also shows the relationship between a garbage mask and its axis.

Use the schematic, for example, to create new relationships between elements in complex animations.

Show small image Show large image

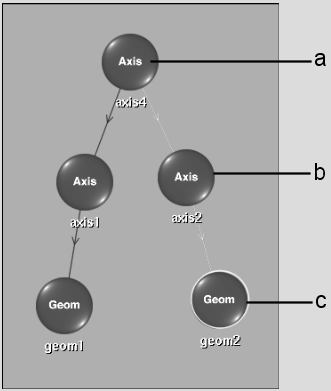

(a) Axis4 is the parent of axis2 and geom2 (b) Geom node represents a wipe mask (c) Axis for geom 2

To view the schematic:

Do one of the following:
- Press Esc.
  Note Pressing Esc a second time returns to the previous view.
- Select Schematic from the World View box.
