Displaying Timecode and Keycode on Clip Proxies




Keycode can be displayed on clip proxies on the desktop and in the clip library.

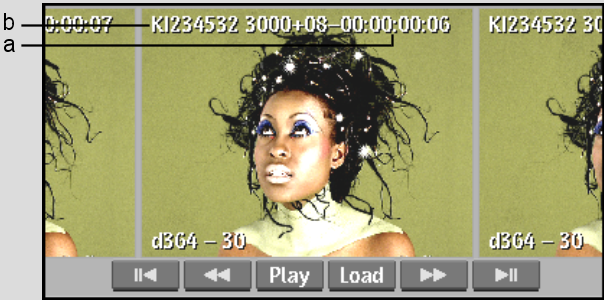

Timecode and keycode are displayed in clips as follows.

Show small imageShow large image

(a) Timecode for the current frame  (b) Keycode for the current frame  

Image courtesy of The House

To display timecode and keycode on proxies in the clip library:

  1. In the clip library, ensure that View Mode is set to Proxies.

    Show small imageShow large image

    (a) View Mode box  (b) Information box  

  2. From the Information box, select any option except No Display.

To display timecode and keycode on proxies on the desktop:

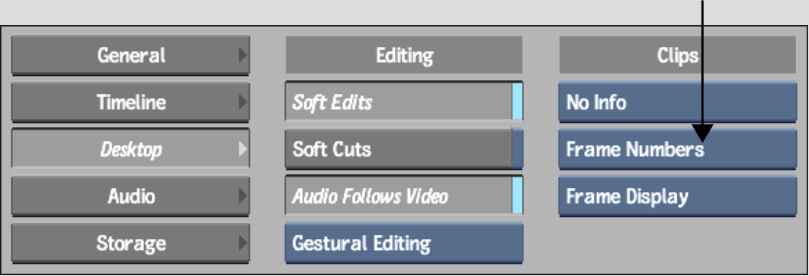

  1. On the desktop, click Preferences.
  2. In the Preferences menu, click the Desktop tab.
  3. In the Clips group, from the Frame ID box, select an option that includes framecode/keycode.

    Show small imageShow large image

    Select: To display:
    KC and Rec TC Keycode and Record Timecode.
    Src and Rec TC Source Timecode and Record Timecode.
    Record TimeCode Record Timecode only.
    Keycode Keycode only.
    Source TimeCode Source Timecode only.

    These settings are applied to the proxies on the desktop.
