fbvideo.h File Reference

---

Detailed Description

fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h fbvideo.h

FBVideo and derivative classes.

Definition in file fbvideo.h.

#include <kaydaradef.h>
#include <fbsdk/fbcomponent.h>
#include <fbsdk/fbcore.h>

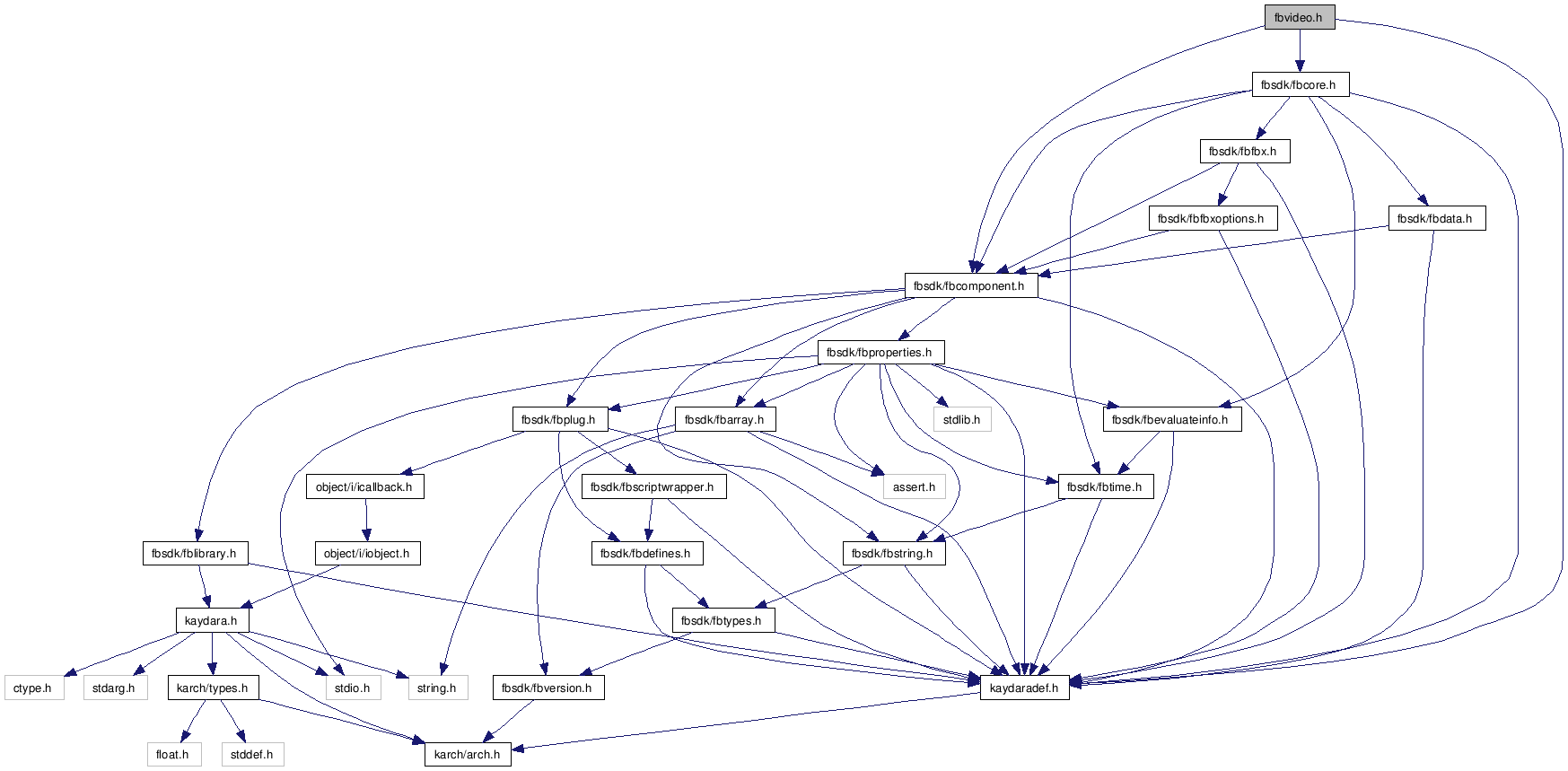

Include dependency graph for fbvideo.h:

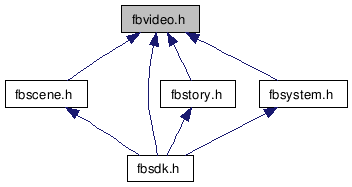

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	FBVideo
	Video media class. More...
class	FBVideoClip
class	FBVideoMemory
	Video media class. More...
class	FBVideoIn
	Video media class. More...
class	FBVideoOut
	Video media class. More...
class	FBEventVideoSwitcher
	Video switcher callback event. More...
class	FBVideoSwitcher
	Video Switcher class. More...
class	FBPropertyListVideoClip
	PropertyList: VideoClip More...
class	FBPropertyListVideoIn
	PropertyList: VideoIn More...
class	FBPropertyListVideoOut
	PropertyList: VideoOut More...
Defines
#define	FBSDK_DLL   K_DLLIMPORT
	Be sure that FBSDK_DLL is defined only once.
#define	FBVideoDeclare(ClassName, Parent)
	Video declaration.
#define	FBVideoImplementation(ThisComponent)   FBClassImplementation( ThisComponent )
	Video implementation.
Enumerations
enum	FBVideoProxyMode {    kFBVideoProxyNone,    kFBVideoProxyOnPlay,    kFBVideoProxyAlways }
	Video proxy modes. More...
enum	FBVideoStorageMode {    kFBVideoStorageDisk,    kFBVideoStorageMemory,    kFBVideoStorageFreeRunning }
	Video storage modes. More...
enum	FBVideoInterlaceMode {    kFBVideoInterlaceNone,    kFBVideoInterlaceHalfFrameEven,    kFBVideoInterlaceHalfFrameOdd,    kFBVideoInterlaceFullFrameEven,    kFBVideoInterlaceFullFrameOdd }
	Video interlace modes. More...
enum	FBVideoFormat {    kFBVideoFormat_Any,    kFBVideoFormat_Other,    kFBVideoFormat_RGBA_32,    kFBVideoFormat_RGB_24,    kFBVideoFormat_BGRA_32,    kFBVideoFormat_BGR_24,    kFBVideoFormat_BGR_16,    kFBVideoFormat_ABGR_32,    kFBVideoFormat_ARGB_32,    kFBVideoFormat_422 }
	Video color modes. More...
enum	FBClipEnd {    kFBClipEndEnd,    kFBClipEndLoop }
	Clip end actions. More...
enum	FBPlayMode {    kFBPlayModeNoPlay,    kFBPlayModePreviewToEnd,    kFBPlayModePlay,    kFBPlayModeLoop,    kFBPlayModePlayToEnd }
	Play modes. More...

---

Define Documentation

#define FBSDK_DLL   K_DLLIMPORT

Be sure that FBSDK_DLL is defined only once.

..

Definition at line 48 of file fbvideo.h.

#define FBVideoDeclare	(	ClassName,
		Parent		)

Value:

FBClassDeclare( ClassName,Parent ); \
  public: \
  ClassName(char * pName):Parent(pName) { FBClassInit; } \
  private:

Video declaration.

Parameters:

	ClassName	Name of Video class.
	Parent	Parent class of ClassName.

Definition at line 68 of file fbvideo.h.

#define FBVideoImplementation

(

ThisComponent

)

FBClassImplementation( ThisComponent )

Video implementation.

Parameters:

ThisComponent

Name of Video class to implement.

Definition at line 77 of file fbvideo.h.

---

Enumeration Type Documentation

enum FBClipEnd

Clip end actions.

Enumerator:

kFBClipEndEnd	On clip end stop clip.
kFBClipEndLoop	On clip end loop clip.

Definition at line 291 of file fbvideo.h.

enum FBPlayMode

Play modes.

Enumerator:

kFBPlayModeNoPlay	No play (most common).
kFBPlayModePreviewToEnd	Preview clip until end.
kFBPlayModePlay	Play clip.
kFBPlayModeLoop	Loop clip.
kFBPlayModePlayToEnd	Play clip to end.

Definition at line 296 of file fbvideo.h.

enum FBVideoFormat

Video color modes.

Enumerator:

kFBVideoFormat_Any
kFBVideoFormat_Other
kFBVideoFormat_RGBA_32
kFBVideoFormat_RGB_24
kFBVideoFormat_BGRA_32
kFBVideoFormat_BGR_24
kFBVideoFormat_BGR_16
kFBVideoFormat_ABGR_32
kFBVideoFormat_ARGB_32
kFBVideoFormat_422

Definition at line 110 of file fbvideo.h.

enum FBVideoInterlaceMode

Video interlace modes.

Enumerator:

kFBVideoInterlaceNone	No interacling.
kFBVideoInterlaceHalfFrameEven	Half frame (even field).
kFBVideoInterlaceHalfFrameOdd	Half frame (odd field).
kFBVideoInterlaceFullFrameEven	Full frame (even field).
kFBVideoInterlaceFullFrameOdd	Full frame (odd field).

Definition at line 101 of file fbvideo.h.

enum FBVideoProxyMode

Video proxy modes.

Enumerator:

kFBVideoProxyNone	No video proxy.
kFBVideoProxyOnPlay	Video proxy on play.
kFBVideoProxyAlways	Always video proxy.

Definition at line 87 of file fbvideo.h.

enum FBVideoStorageMode

Video storage modes.

Enumerator:

kFBVideoStorageDisk	Storage on disk.
kFBVideoStorageMemory	Storage in memory.
kFBVideoStorageFreeRunning	Free running (always playing).

Definition at line 94 of file fbvideo.h.

---
