fbio.h File Reference

Detailed Description

fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h fbio.h
Hardware input and output interfaces.

Contains the defintions for the input and output class, such as TCP/IP and communication ports.

Definition in file fbio.h.

#include <kaydaradef.h>
#include <fbsdk/fbcomponent.h>

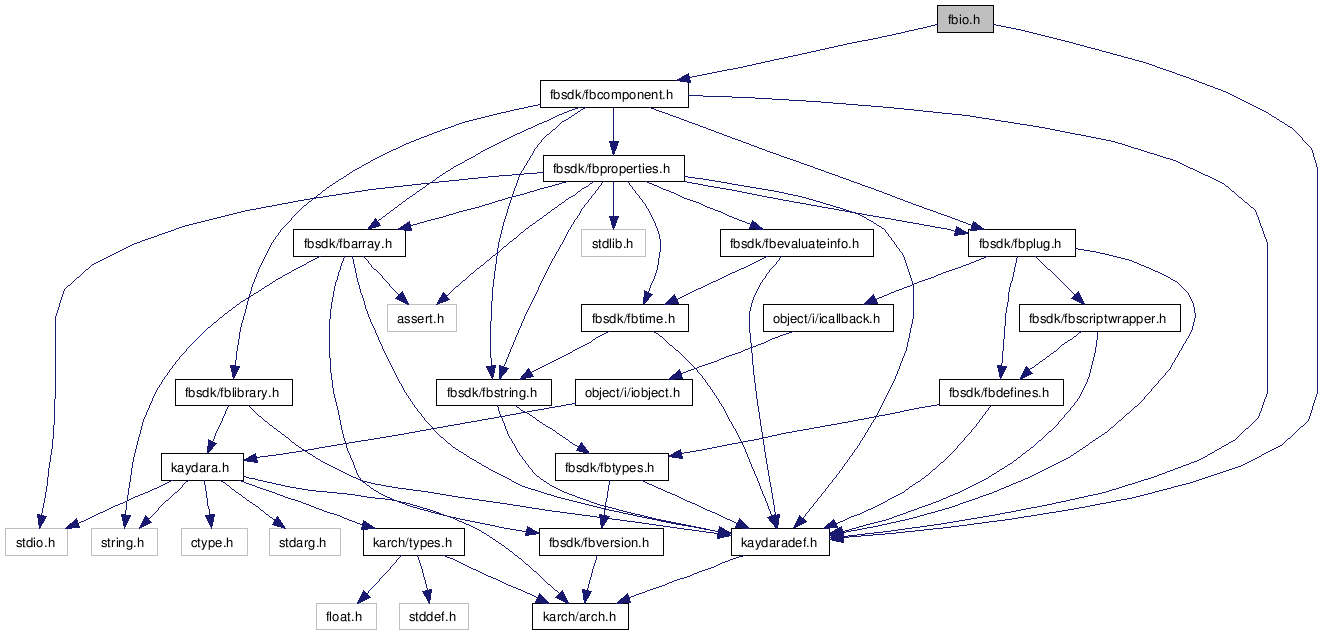

Include dependency graph for fbio.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.


Classes
class   FBCommPort
  Comm port class. More...
class   FBPropertyListCommPort
  PropertyList: CommPort. More...
class   FBTCPIP
  TCP/IP class. More...

Defines
#define  FBSDK_DLL   K_DLLIMPORT
  Be sure that FBSDK_DLL is defined only once.
#define  FBCOMMPORT_DEFAULT_BLOCKING_TIMEOUT   500
  FBCOMMPORT_DEFAULT_BLOCKING_TIMEOUT.
#define  FBTCPIP_DEFAULT_BLOCKING_TIMEOUT   500
  FBTCPIP_DEFAULT_BLOCKING_TIMEOUT define.

Typedefs
typedef class
K_DLLIMPORT
FBPropertyBaseList
< int > 		 FBPropertyBaseListInt
  typedef class FBSDK_DLL FBPropertyBaseList< int > FBPropertyBaseListInt

Enumerations
enum   FBParity {
   kFBParityNone,
   kFBParityOdd,
   kFBParityEven
}
  Parity modes. More...
enum   FBRSType {
   kFBRS232,
   kFBRS422
}
  RS type for serial port. More...
enum   FBCommPortType {
   kFBPhysical,
   kFBVirtual,
   kFBInternal
}
  Communication port type. More...
enum   FBTCPIPSocketType {
   kFBTCPIP_Stream,
   kFBTCPIP_DGRAM,
   kFBTCPIP_RAW
}
  Types of TCP/IP Sockets. More...

Define Documentation

#define FBCOMMPORT_DEFAULT_BLOCKING_TIMEOUT   500

FBCOMMPORT_DEFAULT_BLOCKING_TIMEOUT.

Definition at line 62 of file fbio.h.

#define FBSDK_DLL   K_DLLIMPORT

Be sure that FBSDK_DLL is defined only once.

..

Definition at line 49 of file fbio.h.

#define FBTCPIP_DEFAULT_BLOCKING_TIMEOUT   500

FBTCPIP_DEFAULT_BLOCKING_TIMEOUT define.

Definition at line 194 of file fbio.h.

Typedef Documentation

typedef class K_DLLIMPORT FBPropertyBaseList< int > FBPropertyBaseListInt

typedef class FBSDK_DLL FBPropertyBaseList< int > FBPropertyBaseListInt

Definition at line 159 of file fbio.h.

Enumeration Type Documentation

enum FBCommPortType

Communication port type.

Enumerator:
kFBPhysical  Physical.
kFBVirtual  Virtual.
kFBInternal  Internal.

Definition at line 77 of file fbio.h.

enum FBParity

Parity modes.

Enumerator:
kFBParityNone  No parity.
kFBParityOdd  Odd parity.
kFBParityEven  Even parity.

Definition at line 65 of file fbio.h.

enum FBRSType

RS type for serial port.

Enumerator:
kFBRS232  RS-232 serial protocol.
kFBRS422  RS-422 serial protocol.

Definition at line 72 of file fbio.h.

enum FBTCPIPSocketType

Types of TCP/IP Sockets.

Enumerator:
kFBTCPIP_Stream  Streaming data (TCP).
kFBTCPIP_DGRAM  Datagrams (UDP).
kFBTCPIP_RAW  Raw data (TCP).

Definition at line 197 of file fbio.h.
