fbcharactermanipulator.h File Reference

---

Detailed Description

fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h fbcharactermanipulator.h

This class allows customization of the character manipulator behavior.

Definition in file fbcharactermanipulator.h.

#include <kaydaradef.h>
#include <fbsdk/fbcomponent.h>
#include <fbsdk/fbcore.h>
#include <fbsdk/fbcharacter.h>

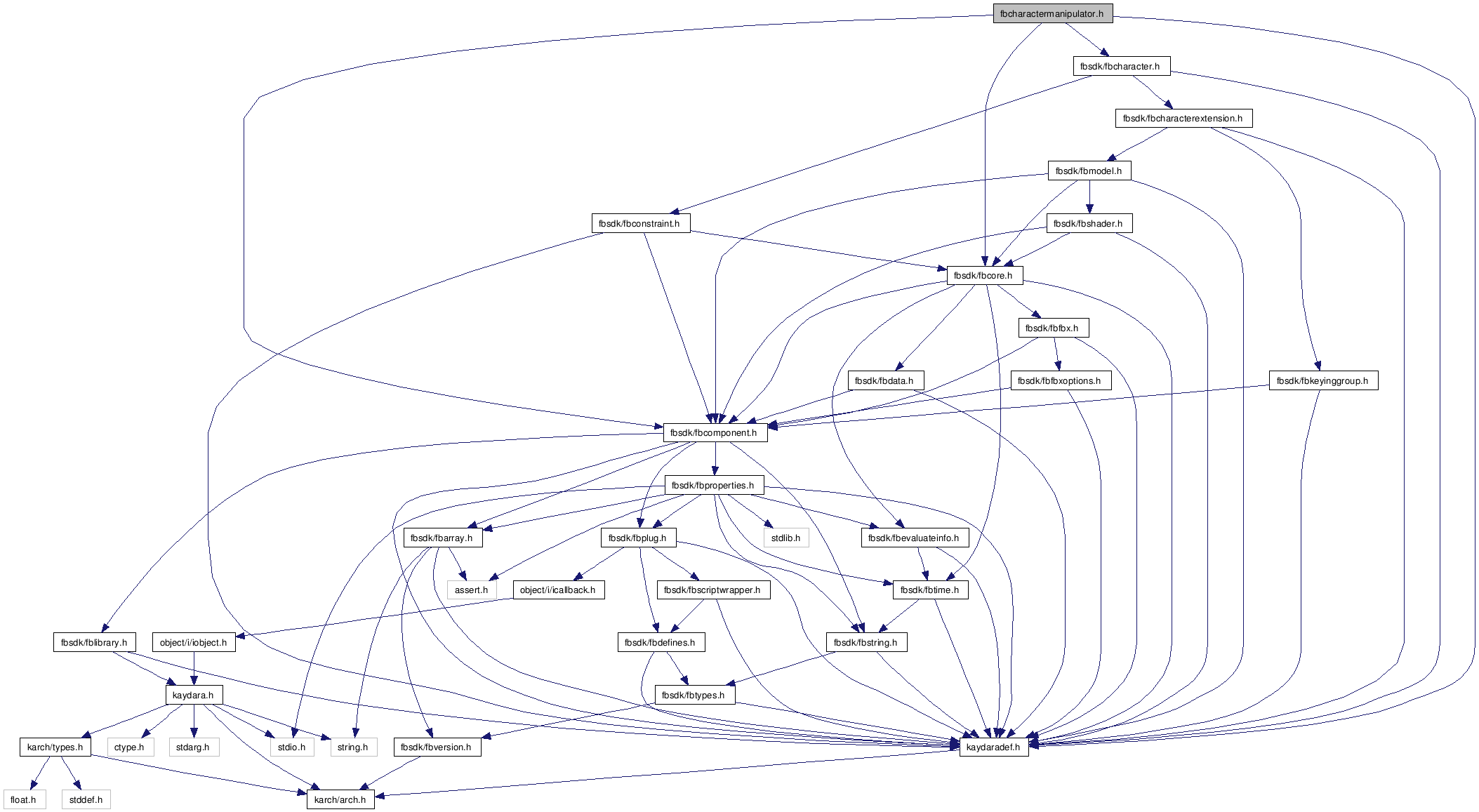

Include dependency graph for fbcharactermanipulator.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	FBCharacterManipulator
	Character Manipulator class. More...
class	FBCharacterManipulatorCtrlSet
	Constraint class. More...
Defines
#define	FBSDK_DLL   K_DLLIMPORT
	Be sure that FBSDK_DLL is defined only once.
#define	FBCharacterManipulatorCtrlSetDeclare(ClassName, Parent)
	Manipulator class declaration.
#define	FBCharacterManipulatorCtrlSetImplementation(ThisComponent)   FBClassImplementation( ThisComponent )
	Manipulator class implementation.
Enumerations
enum	FBManipulationStartResult {    kFBManipulationOK,    kFBManipulationOKNoUndo,    kFBManipulationRefuse }
	Manipulation Start Result. More...
enum	FBManipulationGetResult {    kFBManipulationGetDone,    kFBManipulationGetContinue,    kFBManipulationGetFail }
	Manipulation Get Result. More...
enum	FBManipulationSetResult {    kFBManipulationSetContinue,    kFBManipulationSetFail }
	Manipulation Set Result. More...
enum	FBReferencialType {    FBRefTypeNone,    FBRefTypeGlobal,    FBRefTypeLocal,    FBRefTypeLayer,    FBRefTypeSumLayers,    FBRefTypeParent }
	Specify the referential when a manipulation function is called. More...
enum	FBSetType {    FBSetTypeNone,    FBSetTypeExact,    FBSetTypeCumulative }
	Specify what to do with the provided value. More...
enum	FBSetWhat {    FBSetWhatNone,    FBSetWhatX,    FBSetWhatY,    FBSetWhatZ,    FBSetWhatXYZ,    FBSetWhatAll }
	Specify what part of the provided value should be used. More...
enum	FBManipPivot {    FBManipPivotObjectTranslation,    FBManipPivotObjectRotation,    FBManipPivotObjectScaling,    FBManipPivotObjectUnknown }
	Specify how the pivot should be interpreted. More...
enum	FBManipMode {    FBManip_EditorOther,    FBManip_EditorTranslation,    FBManip_EditorRotation,    FBManip_EditorScaling }
	Manipulator Mode. More...
Functions
	__FB_FORWARD (FBCharacterManipulator)
	Character manipulator class.

---

Define Documentation

#define FBCharacterManipulatorCtrlSetDeclare	(	ClassName,
		Parent		)

Value:

FBClassDeclare( ClassName, Parent ); \
  public: \
    ClassName(char * pName):Parent(pName) { FBClassInit; } \
  private:

Manipulator class declaration.

Parameters:

	ClassName	Manipulator class name.
	Parent	Parent class name.

Warning:

The class must inherit directly from FBCharacterManipulatorContact.

Definition at line 298 of file fbcharactermanipulator.h.

#define FBCharacterManipulatorCtrlSetImplementation

(

ThisComponent

)

FBClassImplementation( ThisComponent )

Manipulator class implementation.

Parameters:

ThisComponent

The name of the class to implement.

Definition at line 307 of file fbcharactermanipulator.h.

#define FBSDK_DLL   K_DLLIMPORT

Be sure that FBSDK_DLL is defined only once.

..

Definition at line 48 of file fbcharactermanipulator.h.

---

Enumeration Type Documentation

enum FBManipMode

Manipulator Mode.

Enumerator:

FBManip_EditorOther	Unknown Manipulation Mode.
FBManip_EditorTranslation	Translation Manipulation Mode.
FBManip_EditorRotation	Rotation Manipulation Mode.
FBManip_EditorScaling	Scaling Manipulation Mode.

Definition at line 125 of file fbcharactermanipulator.h.

enum FBManipPivot

Specify how the pivot should be interpreted.

Enumerator:

FBManipPivotObjectTranslation	Consider the translation of the pivot.
FBManipPivotObjectRotation	Consider the rotation of the pivot.
FBManipPivotObjectScaling	Consider the scaling of the pivot.
FBManipPivotObjectUnknown	Don't consider the pivot.

Definition at line 116 of file fbcharactermanipulator.h.

enum FBManipulationGetResult

Manipulation Get Result.

Enumerator:

kFBManipulationGetDone	Return this value when you can provided the requested value.
kFBManipulationGetContinue	Return this value when you cannot provided the requested value, another manipulator will try to provided the value.
kFBManipulationGetFail	Return this value to prevent other manipulator to handle the request.

Definition at line 71 of file fbcharactermanipulator.h.

enum FBManipulationSetResult

Manipulation Set Result.

Enumerator:

kFBManipulationSetContinue	Return this value when you don't want handle the request, another manipulator will try to handle it.
kFBManipulationSetFail	Return this value when you have set the value.

Definition at line 79 of file fbcharactermanipulator.h.

enum FBManipulationStartResult

Manipulation Start Result.

Enumerator:

kFBManipulationOK	This is the default value to return, means that you will handle the manipulation.
kFBManipulationOKNoUndo	This value means that the manipulation will be done, but the manipulation will not be undoable.
kFBManipulationRefuse	Manipulation will be skipped.

Definition at line 63 of file fbcharactermanipulator.h.

enum FBReferencialType

Specify the referential when a manipulation function is called.

Enumerator:

FBRefTypeNone	No type specified.
FBRefTypeGlobal	Referential is in global coordinate.
FBRefTypeLocal	Referential is in local coordinate.
FBRefTypeLayer	Local additive rotation.
FBRefTypeSumLayers	Global additive rotation.
FBRefTypeParent	Parenting mode.

Definition at line 86 of file fbcharactermanipulator.h.

enum FBSetType

Specify what to do with the provided value.

Enumerator:

FBSetTypeNone	Do nothing with the value.
FBSetTypeExact	Set the value directly.
FBSetTypeCumulative	Add the provided value to the original value.

Definition at line 97 of file fbcharactermanipulator.h.

enum FBSetWhat

Specify what part of the provided value should be used.

Enumerator:

FBSetWhatNone	Do nothing with the value.
FBSetWhatX	Set only the X component of the value.
FBSetWhatY	Set only the Y component of the value.
FBSetWhatZ	Set only the Z component of the value.
FBSetWhatXYZ	Set the XYZ components of the value.
FBSetWhatAll	Set all components of the value.

Definition at line 105 of file fbcharactermanipulator.h.

---

Function Documentation

__FB_FORWARD

(

FBCharacterManipulator

)

Character manipulator class.

These classes are under development and may change dramatically between versions. This class exposes part of the functionality associated with Character manipulation. This class is a pure virtual class, it defined the basic functions that a manipulator must implement to be useful. Here is an example of how a manipulator works (translation manipulator in this case): 1- After a model has been selected in the viewer, the manipulator is displayed. The function TranslationGet() is called to determnine the location of the manipulator. 2- The user select the manipualtor and start a manipulation. The function TranslationIsEditable() is called. Based on the returned value, the manipulation will continue or will be stopped (the manipulator will not moved). 3- If the manipulation continues, the function TranslationStartManipulation() will be called. This function is useful to setup internal state before the actual manipulation starts. Based on the returned value of TranslationStartManipulation(), the manipulation will continue or will be stopped. 4- If the manipulation continue, a TranslationSet() will be called. This function will contains a new value and information about the manipulation. Use this information to set the new TRS values of the manipulated model. 5- TranslationGet() and TranslationSet() will be called one after the other until the manipulation is done, to reposition the manipulator and to update the model location. 6- When the manipulation is finished, TranslationStopManipulation() is called.

---
