Constraining an IK system





You can constrain the IK Handle to the control object (ArmControl) using a point constraint. A point constraint allows the transformation attributes of one object to be controlled by the transformations of another object. For example, you select and position ArmControl without having to touch the IK Handle. You also set the constraint so ArmControl maintains the current distance (offset) from the IK Handle. The offset ensures that the constrained IK handle doesn’t move to the same position as the control object.

To constrain the IK Handle to the control object

  1. In the Hypergraph, select the ArmControl node and then Shift-select the ikHandle1 node.

    The order of selection when applying a constraint is important: you must select the constraining object first, and the item to be constrained second.

  2. In the main menu, select Constrain > Point > .

    The Point Constraint Options window appears.

  3. In the Point Constraint Options window, do the following:
    • Select Edit > Reset Settings to set the tool to its default settings.
    • Turn on the Maintain Offset setting.
    • Click the Add button.

    The IK handle is constrained to the control object. In the Hypergraph, a constraint node is created beneath the ikHandle1 node.

  4. In the Hypergraph, select only the ArmControl node.
  5. In the Toolbox, select the Move Tool.

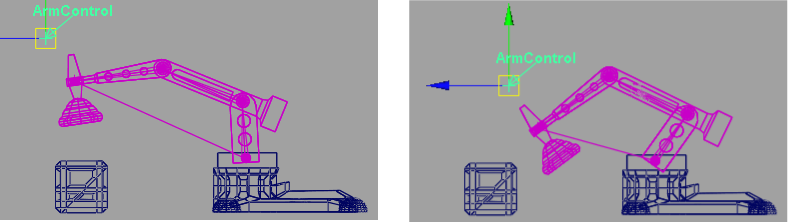

  6. In the side view, drag the manipulator to reposition the control object. (Experiment with a few different positions in the side view only.)

    When you drag the manipulator, the control object moves, which in turn moves the IKHandle. Because the IK handle controls the skeleton and the mechanical arm model, they also move. The offset between the control object and the IK Handle is maintained.

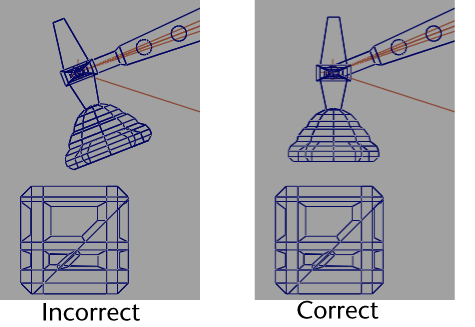

The Cargo Magnet does not continuously point downwards when rotated. Its orientation is based on the rotation it had in its original position.

The mechanical arm will be easier to pose if you set Cargo Magnet to be oriented downwards towards the floor of the scene regardless of the orientation of the other components of the arm.

You make CargoMagnet point downwards using an orient constraint. An orient constraint constrains the orientation (rotation) of the X, Y, and Z axes of one object to match those of the constraining (target) object.

In the next steps, you reset the position of the mechanical arm to its default position, and then apply an orient constraint to the last joint in the IK system so that its orientation matches the control object. The effect is that CargoMagnet points downwards regardless of any other movement in the scene.

To set the IK system to its default position

  1. In the Hypergraph, select the ArmControl node.
  2. Open the Channel Box by clicking the Show/Hide Channel Box icon .
  3. In the Channel Box, set the X, Y, and Z transformations for ArmControl to 0.

    Zeroing the transformations on ArmControl resets the mechanical arm to its home position because of the freeze transformations step you performed in the previous section.

  4. Close the Channel Box by clicking the Show/Hide Channel Box icon.

To apply an orient constraint for the IK system

  1. In the Hypergraph menu, select View > Frame All.

    The Hypergraph displays all the nodes in the scene.

  2. In the Hypergraph, select ArmControl and then Shift-select the node named joint4. (You may need to dolly and track the Hypergraph view to view these nodes.)
  3. In the main menu bar, select Constrain > Orient > .
  4. In the Orient Constraint Options window, do the following:
    • Select Edit > Reset Settings to set the tool to the default settings.
    • Click the Add button.

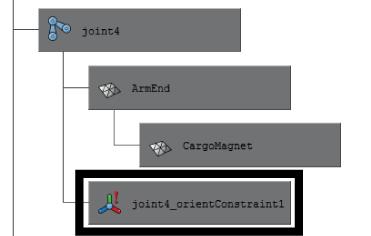

    Joint4 is constrained to have the same orientation as the control object. In the Hypergraph, the constraint node is created below the joint4 node in the hierarchy.

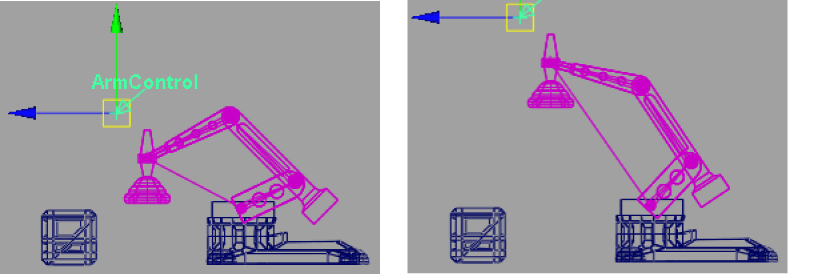

  5. With only the ArmControl node selected, use the Move Tool to reposition ArmControl in the side view.

    CargoMagnet maintains an orientation facing the floor of the scene regardless of how the mechanical arm is positioned in the side view.

In the next section, you learn how to limit the range of movement for the IK system.
