Applying animation as reference edits

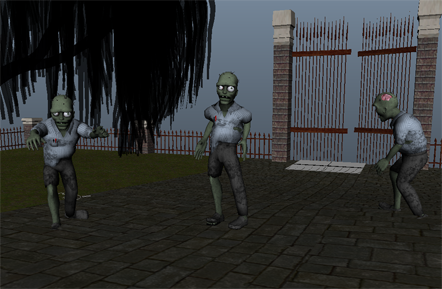

To change this scene from a horror-filled graveyard to an undead fashion show, you will apply the runway strut animation to one of the zombies in the scene.

However, all the zombies are animated. The runway strut animation you exported is meant to be used on a non-animated skeleton. Thus, you need to replace one of the zombie references with its non-animated counterpart.

To replace a reference

1. In the Outliner, select the zombieShuffleRN reference node.
2. -click and select Reference > Replace from the menu that appears.

   The File Browser appears.

3. Select zombiePlain.mb and click Reference.

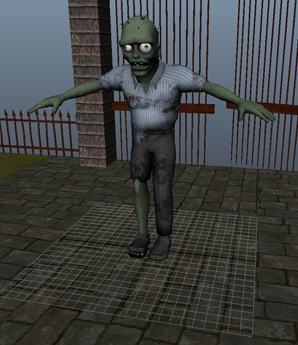

   The animated zombie is replaced with a non-animated version.



The non-animated zombie model is more appropriate for the strut animation since it more closely matches the reference that the strut was created from. The asset has all the correct published attributes, however the default View hides them from you.

To apply the strut animation

1. In the Outliner, select the zombieShuffleRN reference node.
2. - click and select Reference > Assign Offline File from the menu that appears.

   The File Browser appears.

3. Browse to the location of your saved runwayStrut.editMA reference edits file, select it, and click Assign Offline File.

   The zombie changes positions. If you play the scene, the zombie walks with the same runway strut as the animated skeleton.
