MRenderData Class Reference
[OpenMayaRender - API module for rendering]

#include <MRenderData.h>

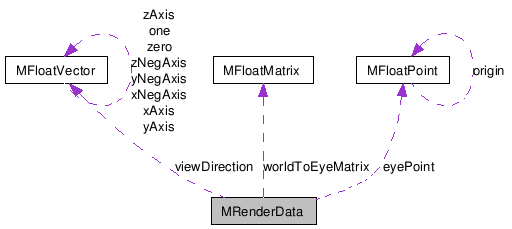

Collaboration diagram for MRenderData:
Collaboration graph
[legend]

List of all members.


Detailed Description

Access Rendering Data.

The rendered image and depth map can be changed following the software render by instanciating a MRenderCallback and overriding renderCallback() or postProcessCallback(). When these methods are invoked, a MRenderData is passed as an argument; the rgbaArr and depthArr can then be changed by this API. Methods and data are provided to assist in transforming back and forth from world space to image space. Paint Effects and Fur are two examples which use this mechanism to change the rendered image.

Examples:

renderAccessNode.cpp.


Public Member Functions

  MRenderData ()
void  worldToScreen (const MFloatPoint &worldPoint, MFloatPoint &screenPoint) const
void  screenToWorld (const MFloatPoint &screenPoint, MFloatPoint &worldPoint) const

Public Attributes

bool  perspective
  set if the camera has a perspective projection
unsigned short  resX
  the x resolution of the rendered image
unsigned short  resY
  the y resolution of the rendered image
unsigned short  left
  the left (low) render region dimension
unsigned short  bottom
  the bottom (low) render region dimension
unsigned short  right
  the right (high) render region dimension
unsigned short  top
  the top (high) render region dimension
unsigned short  bytesPerChannel
  number of bytes per channel of the rgbaArr
unsigned short  xsize
  the actual x resolution of rgbaArr and depthArr
unsigned short  ysize
  the actual y resolution of rgbaArr and depthArr
float  fieldOfView
  camera horizontal field of view in radians
float  aspectRatio
  camera pixel aspect ratio
MFloatVector  viewDirection
  view direction of the camera (object space)
MFloatPoint  eyePoint
  position of the camera (object space)
MFloatMatrix  worldToEyeMatrix
  camera matrix to transform to eye space
unsigned char *  rgbaArr
float *  depthArr

Constructor & Destructor Documentation

MRenderData::MRenderData (  )

Default class Constructor


Member Function Documentation

void MRenderData::worldToScreen ( const MFloatPoint inPoint,
MFloatPoint outPoint
) const

Converts world space point to screen space. Screen depth is stored in outPoint.z.

Parameters:
[in]  inPoint  The original point in world space
[out]  outPoint  The converted point in screen space
Examples:

void MRenderData::screenToWorld ( const MFloatPoint inPoint,
MFloatPoint outPoint
) const

Converts screen space point to world space. Screen depth is stored in inPoint.z.

Parameters:
[in]  inPoint  The original point in screen space
[out]  outPoint  The converted point in world space
Examples:

Member Data Documentation

unsigned char* MRenderData::rgbaArr

this is a 1d array representing the output image buffer. It is of size: resX * resY * 4 * bytesPerChannel. The array is indexed as [(resX * x + y) * 4 * bytesPerChannel], where (x,y) is the current pixel coordinates. The "4" multiplier is used for storing RGBA information, in the order of a,b,g,r (on OSX) or b,g,r,a (on Windows and Linux).

Examples:

this is a 1d array representing the output depth buffer. It is of size: resX * resY, where each depth value is a single precision floating point vlue. It is indexed as [resX * x + y], where (x,y) is the current pixel coordinates.

Examples:
