MFnVolumeAxisField Class Reference
[OpenMayaFX - API module for effectsFunctionSet classes]

#include <MFnVolumeAxisField.h>
Inheritance diagram for MFnVolumeAxisField:
Inheritance graph
[legend]

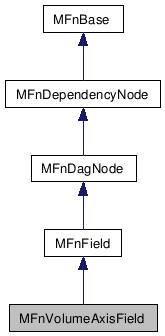

Collaboration diagram for MFnVolumeAxisField:
Collaboration graph
[legend]

List of all members.


Detailed Description

Function set for VolumeAxis Fields.

Function set for creation, edit, and query of VolumeAxis Fields.

A volume axis field provides in field form some of the speed controls of volume emitters.


Public Member Functions

virtual MFn::Type  type () const
  Function set type.
virtual  ~MFnVolumeAxisField ()
  Destructor.
  MFnVolumeAxisField ()
  Default constructor.
  MFnVolumeAxisField (MObject &object, MStatus *ReturnStatus=NULL)
  Constructor.
  MFnVolumeAxisField (const MDagPath &object, MStatus *ret=NULL)
  Constructor.
bool  invertAttenuation (MStatus *ReturnStatus=NULL) const
MVector  direction (MStatus *ReturnStatus=NULL) const
double  speedAlongAxis (MStatus *ReturnStatus=NULL) const
double  speedAroundAxis (MStatus *ReturnStatus=NULL) const
double  speedAwayFromAxis (MStatus *ReturnStatus=NULL) const
double  speedAwayFromCenter (MStatus *ReturnStatus=NULL) const
double  directionalSpeed (MStatus *ReturnStatus=NULL) const
double  turbulence (MStatus *ReturnStatus=NULL) const
double  turbulenceSpeed (MStatus *ReturnStatus=NULL) const
MVector  turbulenceFrequency (MStatus *ReturnStatus=NULL) const
MVector  turbulenceOffset (MStatus *ReturnStatus=NULL) const
double  detailTurbulence (MStatus *ReturnStatus=NULL) const
MStatus  setInvertAttenuation (bool enable)
MStatus  setDirection (const MVector &direction)
MStatus  setSpeedAlongAxis (double value)
MStatus  setSpeedAroundAxis (double value)
MStatus  setSpeedAwayFromAxis (double value)
MStatus  setSpeedAwayFromCenter (double value)
MStatus  setDirectionalSpeed (double value)
MStatus  setTurbulence (double value)
MStatus  setTurbulenceSpeed (double value)
MStatus  setTurbulenceFrequency (const MVector &value)
MStatus  setTurbulenceOffset (const MVector &value)
MStatus  detailTurbulence (double value)
  MFnVolumeAxisField (const MObject &object, MStatus *ret=NULL)
  Constructor.

Protected Member Functions

virtual const char *  className () const
  Class name.

Constructor & Destructor Documentation

MFnVolumeAxisField::~MFnVolumeAxisField (  )  [virtual]

Destructor.

Class destructor.

MFnVolumeAxisField::MFnVolumeAxisField ( MObject object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:
[in]  object  The MObject to attach the function set to
[out]  ReturnStatus  the return status
Status Codes:

MFnVolumeAxisField::MFnVolumeAxisField ( const MDagPath object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given constant MDagPath object.

Parameters:
[in]  object  The const MDagPath to attach the function set to
[out]  ReturnStatus  The return status
Status Codes:

MFnVolumeAxisField::MFnVolumeAxisField ( const MObject object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:
[in]  object  The MObject to attach the function set to
[out]  ReturnStatus  the return status
Status Codes:

Member Function Documentation

MFn::Type MFnVolumeAxisField::type (  )  const [virtual]

Function set type.

Return the class type : MFn::kVolumeAxis

Reimplemented from MFnField.

bool MFnVolumeAxisField::invertAttenuation ( MStatus ReturnStatus = NULL  )  const

Returns the value of the invertAttenuation attribute for the field force.

Parameters:
[out]  ReturnStatus  Status code
Returns:
  • true Field is strongest close to volume outer boundary.
  • false Field is strongest close to volume center.
Status Codes:

MVector MFnVolumeAxisField::direction ( MStatus ReturnStatus = NULL  )  const

Returns the direction attribute for the field force.

Parameters:
[out]  ReturnStatus  Status code
Returns:
A vector representing direction.
Status Codes:

double MFnVolumeAxisField::speedAlongAxis ( MStatus ReturnStatus = NULL  )  const

Returns the alongAxis attribute of the field.

Parameters:
[out]  ReturnStatus  Status code
Returns:
A double value representing the speed along axis.
Status Codes:

double MFnVolumeAxisField::speedAroundAxis ( MStatus ReturnStatus = NULL  )  const

Returns the aroundAxis attribute of the field.

Parameters:
[out]  ReturnStatus  Status code
Returns:
A double value representing the speed around axis.
Status Codes:

double MFnVolumeAxisField::speedAwayFromAxis ( MStatus ReturnStatus = NULL  )  const

Returns the awayFromAxis attribute of the field.

Parameters:
[out]  ReturnStatus  Status code
Returns:
A double value representing the speed away from axis.
Status Codes:

double MFnVolumeAxisField::speedAwayFromCenter ( MStatus ReturnStatus = NULL  )  const

Returns the awayFromCenter attribute of the field.

Parameters:
[out]  ReturnStatus  Status code
Returns:
A double value representing the speed away from center.
Status Codes:

double MFnVolumeAxisField::directionalSpeed ( MStatus ReturnStatus = NULL  )  const

Returns the directionalSpeed attribute of the field.

Parameters:
[out]  ReturnStatus  Status code
Returns:
A double value representing the directional speed.
Status Codes:

double MFnVolumeAxisField::turbulence ( MStatus ReturnStatus = NULL  )  const

Returns the turbulence intensity of the field.

Parameters:
[out]  ReturnStatus  Status code
Returns:
A double value representing the turbulence intensity.
Status Codes:

double MFnVolumeAxisField::turbulenceSpeed ( MStatus ReturnStatus = NULL  )  const

Returns the rate of change of the turbulence over time.

Parameters:
[out]  ReturnStatus  Status code
Returns:
A double value representing the turbulence speed.
Status Codes:

MVector MFnVolumeAxisField::turbulenceFrequency ( MStatus ReturnStatus = NULL  )  const

Returns the turbulenceFrequency attribute for the field force.

Parameters:
[out]  ReturnStatus  Status code
Returns:
A vector representing frequency or scale of the turbulence.
Status Codes:

MVector MFnVolumeAxisField::turbulenceOffset ( MStatus ReturnStatus = NULL  )  const

Returns the turbulenceOffset attribute for the field force.

Parameters:
[out]  ReturnStatus  Status code
Returns:
A vector representing an offset or translation of the turbulence.
Status Codes:

double MFnVolumeAxisField::detailTurbulence ( MStatus ReturnStatus = NULL  )  const

Returns the intensity of a second higher frequency turbulence.

Parameters:
[out]  ReturnStatus  Status code
Returns:
A double value for the intensity of fine scale turbulence.
Status Codes:

MStatus MFnVolumeAxisField::setInvertAttenuation ( bool  enable  )

Enables the field will be stronger the closer to the edge of the volume a point is.

Parameters:
[in]  enable  Flag to invert falloff of intensity.
Returns:
Status code
Status Codes:

MStatus MFnVolumeAxisField::setDirection ( const MVector direction  )

Sets the direction attribute for the field force.

Parameters:
[in]  direction  A vector representing direction.
Returns:
Status code
Status Codes:

MStatus MFnVolumeAxisField::setSpeedAlongAxis ( double  speed  )

Sets the speed along axis attribute for the field force.

Parameters:
[in]  speed  A double representing the speed along axis.
Returns:
Status code
Status Codes:

MStatus MFnVolumeAxisField::setSpeedAroundAxis ( double  speed  )

Sets the speed around axis attribute for the field force.

Parameters:
[in]  speed  A double representing the speed around axis.
Returns:
Status code
Status Codes:

MStatus MFnVolumeAxisField::setSpeedAwayFromAxis ( double  speed  )

Sets the speed away from axis attribute for the field force.

Parameters:
[in]  speed  A double representing the speed away from axis.
Returns:
Status code
Status Codes:

MStatus MFnVolumeAxisField::setSpeedAwayFromCenter ( double  speed  )

Sets the speed away from center attribute for the field force.

Parameters:
[in]  speed  A double representing the speed away from center.
Returns:
Status code
Status Codes:

MStatus MFnVolumeAxisField::setDirectionalSpeed ( double  speed  )

Sets the directional speed attribute for the field force.

Parameters:
[in]  speed  A double representing the directional speed.
Returns:
Status code
Status Codes:

MStatus MFnVolumeAxisField::setTurbulence ( double  value  )

Sets the turbulence attribute for the field force.

Parameters:
[in]  value  A double representing the turbulence intensity.
Returns:
Status code
Status Codes:

MStatus MFnVolumeAxisField::setTurbulenceSpeed ( double  value  )

Sets the turbulence speed attribute for the field force.

Parameters:
[in]  value  A double representing the rate of change of the turbulence.
Returns:
Status code
Status Codes:

MStatus MFnVolumeAxisField::setTurbulenceFrequency ( const MVector value  )

Sets the turbulenceFrequency attribute for the field force.

Parameters:
[in]  value  A vector representing the frequency of turbulence.
Returns:
Status code
Status Codes:

MStatus MFnVolumeAxisField::setTurbulenceOffset ( const MVector value  )

Sets the turbulenceOffset attribute for the field force.

Parameters:
[in]  value  A vector representing the translation of turbulence.
Returns:
Status code
Status Codes:

MStatus MFnVolumeAxisField::detailTurbulence ( double  value  )

Sets the detailTurbulence attribute for the field force.

Parameters:
[in]  value  A double representing the intensity of a second higher frequency turbulence.
Returns:
Status code
Status Codes:
