MFnLambertShader Class Reference
[OpenMaya - API module for common classesFunctionSet classes]

#include <MFnLambertShader.h>

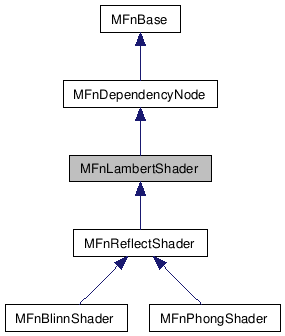

Inheritance diagram for MFnLambertShader:
Inheritance graph
[legend]
Collaboration diagram for MFnLambertShader:
Collaboration graph
[legend]

List of all members.


Detailed Description

Manage Lambert shaders.

MFnLambertShader facilitates creation and manipulation of dependency graph nodes representing lambertian shaders.


Public Member Functions

virtual MFn::Type  type () const
  Function set type.
virtual  ~MFnLambertShader ()
  Destructor.
  MFnLambertShader ()
  Default constructor.
  MFnLambertShader (MObject &object, MStatus *ReturnStatus=NULL)
  Constructor.
MObject  create (bool UIvisible=true, MStatus *ReturnStatus=NULL)
short  refractedRayDepthLimit (MStatus *ReturnStatus=NULL) const
MStatus  setRefractedRayDepthLimit (const short &new_limit)
float  refractiveIndex (MStatus *ReturnStatus=NULL) const
MStatus  setRefractiveIndex (const float &refractive_index)
bool  rtRefractedColor (MStatus *ReturnStatus=NULL) const
MStatus  setRtRefractedColor (const bool &rt_refracted_color)
float  diffuseCoeff (MStatus *ReturnStatus=NULL) const
MStatus  setDiffuseCoeff (const float &diffuse_coeff)
MColor  color (MStatus *ReturnStatus=NULL) const
MStatus  setColor (const MColor &col)
MColor  transparency (MStatus *ReturnStatus=NULL) const
MStatus  setTransparency (const MColor &transp)
MColor  ambientColor (MStatus *ReturnStatus=NULL) const
MStatus  setAmbientColor (const MColor &ambient_color)
MColor  incandescence (MStatus *ReturnStatus=NULL) const
MStatus  setIncandescence (const MColor &incand)
float  translucenceCoeff (MStatus *ReturnStatus=NULL) const
MStatus  setTranslucenceCoeff (const float &translucence_coeff)
float  glowIntensity (MStatus *ReturnStatus=NULL) const
MStatus  setGlowIntensity (const float &glow_intensity)
bool  hideSource (MStatus *ReturnStatus=NULL) const
MStatus  setHideSource (const bool &hide_source)
  MFnLambertShader (const MObject &object, MStatus *ReturnStatus=NULL)
  Constructor.

Protected Member Functions

virtual const char *  className () const
  Class name.

Constructor & Destructor Documentation

MFnLambertShader::MFnLambertShader ( MObject object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:
[in]  object  The MObject to attach the function set to
[out]  ReturnStatus  the return status
Status Codes:

MFnLambertShader::MFnLambertShader ( const MObject object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:
[in]  object  The MObject to attach the function set to
[out]  ReturnStatus  the return status
Status Codes:

Member Function Documentation

MFn::Type MFnLambertShader::type (  )  const [virtual]

Function set type.

Return the class type : MFn::kLambert

Reimplemented from MFnDependencyNode.

Reimplemented in MFnBlinnShader, MFnPhongShader, and MFnReflectShader.

const char * MFnLambertShader::className (  )  const [protected, virtual]

Class name.

Return the class name : "MFnLambertShader"

Reimplemented from MFnDependencyNode.

Reimplemented in MFnBlinnShader, MFnPhongShader, and MFnReflectShader.

MObject MFnLambertShader::create ( bool  UIvisible = true,
MStatus ReturnStatus = NULL
)

Creates a new lambert shader dependency graph node and adds it to the dependency graph. If the UIvisible parameter is true, the new node will be connected to the shader classification node (which allows the UI to recognize the node as a shader). If UIvisible is false, the node will be created in isolation.

Parameters:
[in]  UIvisible  determines whether or not the new node will be connected to the shader classification node.
[out]  ReturnStatus  return status
Returns:
MObject representing the new dependency node.
Status Codes:
  • MS::kSuccess operation successful
  • MS::kInsufficientMemory ran out of memory
  • MS::kNoModelActive no model is currently active
  • MS::kLicenseFailure application not licensed for attempted operation
  • MS::kFailure the new node could not be created, or the new node could not be added to the dependency graph, or the new node could not be connected to the classification node.

Reimplemented in MFnBlinnShader, and MFnPhongShader.

short MFnLambertShader::refractedRayDepthLimit ( MStatus ReturnStatus = NULL  )  const

Retrieves the value of the "refractedRayDepthLimit" attribute of a lambert shader node. This attribute represents the maximum refracted ray depth used in the shading calculation.

Parameters:
[out]  ReturnStatus  return status
Returns:
The value of the "refractedRayDepthLimit" attribute of the node.
Status Codes:

MStatus MFnLambertShader::setRefractedRayDepthLimit ( const short &  refracted_ray_depth_limit  )

Sets the value of the "refractedRayDepthLimit" attribute of a lambert shader node.

Parameters:
[in]  refracted_ray_depth_limit  value to which the attribute will be set.
Returns:
Return status
Status Codes:

float MFnLambertShader::refractiveIndex ( MStatus ReturnStatus = NULL  )  const

Retrieves the value of the "refractiveIndex" attribute of a lambert shader node. This attribute represents the refractive index of the shader.

Parameters:
[out]  ReturnStatus  return status
Returns:
The value of the "refractiveIndex" attribute of the shader node.
Status Codes:

MStatus MFnLambertShader::setRefractiveIndex ( const float &  refractive_index  )

Sets the value of the "refractiveIndex" attribute of a shader node.

Parameters:
[in]  refractive_index  value to which the attribute will be set.
Returns:
Return status
Status Codes:

bool MFnLambertShader::rtRefractedColor ( MStatus ReturnStatus = NULL  )  const

Retrieves the value of the "rtRefractedColor" attribute of a shader node. This attribute determines whether the shader uses the value of the "refractedColor" attribute for the refracted color or calculated the refracted color itself.

Parameters:
[out]  ReturnStatus  return status
Returns:
The value of the "rtRefractedColor" attribute of the shader node.
Status Codes:

MStatus MFnLambertShader::setRtRefractedColor ( const bool &  rt_refracted_color  )

Sets the value of the "rtRefractedColor" attribute of a shader node.

Parameters:
[in]  rt_refracted_color  value to which the attribute will be set.
Returns:
Return status
Status Codes:

float MFnLambertShader::diffuseCoeff ( MStatus ReturnStatus = NULL  )  const

Retrieves the value of the "diffuseCoeff" attribute of a lambert shader node. This attribute represents the diffuse reflectivity of the shader.

Parameters:
[out]  ReturnStatus  return status
Returns:
The value of the "diffuseCoeff" attribute of the shader node.
Status Codes:

MStatus MFnLambertShader::setDiffuseCoeff ( const float &  diffuse_coeff  )

Sets the value of the "diffuseCoeff" attribute of a shader node.

Parameters:
[in]  diffuse_coeff  value to which the attribute will be set.
Returns:
Return status
Status Codes:

MColor MFnLambertShader::color ( MStatus ReturnStatus = NULL  )  const

Retrieves the value of the "color" attribute of a shader node. This attribute represents the surface color of the shader.

Parameters:
[out]  ReturnStatus  return status
Returns:
The value of the "color" attribute of the shader node.
Status Codes:

MStatus MFnLambertShader::setColor ( const MColor col  )

Sets the value of the "color" attribute of a shader node.

Parameters:
[in]  col  value to which the attribute will be set.
Returns:
Return status
Status Codes:

MColor MFnLambertShader::transparency ( MStatus ReturnStatus = NULL  )  const

Retrieves the value of the "transparency" attribute of a shader node. This attribute represents the surface transparency of the shader.

Parameters:
[out]  ReturnStatus  return status
Returns:
The value of the "transparency" attribute of the shader node.
Status Codes:

MStatus MFnLambertShader::setTransparency ( const MColor transp  )

Sets the value of the "transparency" attribute of a shader node.

Parameters:
[in]  transp  value to which the attribute will be set.
Returns:
Return status
Status Codes:

MColor MFnLambertShader::ambientColor ( MStatus ReturnStatus = NULL  )  const

Retrieves the value of the "ambientColor" attribute of a shader node. This attribute represents the ambient color of the shader.

Parameters:
[out]  ReturnStatus  return status
Returns:
The value of the "ambientColor" attribute of the shader node.
Status Codes:

MStatus MFnLambertShader::setAmbientColor ( const MColor ambient_color  )

Sets the value of the "ambientColor" attribute of a shader node.

Parameters:
[in]  ambient_color  value to which the attribute will be set.
Returns:
Return status
Status Codes:

MColor MFnLambertShader::incandescence ( MStatus ReturnStatus = NULL  )  const

Retrieves the value of the "incandescence" attribute of a shader node. This attribute represents the incandescence of the shader.

Parameters:
[out]  ReturnStatus  return status
Returns:
The value of the "incandescence" attribute of the shader node.
Status Codes:

MStatus MFnLambertShader::setIncandescence ( const MColor incand  )

Sets the value of the "incandescence" attribute of a shader node.

Parameters:
[in]  incand  value to which the attribute will be set.
Returns:
Return status
Status Codes:

float MFnLambertShader::translucenceCoeff ( MStatus ReturnStatus = NULL  )  const

Retrieves the value of the "translucenceCoeff" attribute of a lambert shader node. This attribute represents a constant multiplier applied to the transparency attribute of the shader.

Parameters:
[out]  ReturnStatus  return status
Returns:
The value of the "translucenceCoeff" attribute of the shader node.
Status Codes:

MStatus MFnLambertShader::setTranslucenceCoeff ( const float &  translucence_coeff  )

Sets the value of the "translucenceCoeff" attribute of a shader node.

Parameters:
[in]  translucence_coeff  value to which the attribute will be set.
Returns:
Return status
Status Codes:

float MFnLambertShader::glowIntensity ( MStatus ReturnStatus = NULL  )  const

Retrieves the value of the "glowIntensity" attribute of a shader node. This attribute represents the constant multplier applied to the glow color of the shader.

Parameters:
[out]  ReturnStatus  return status
Returns:
The value of the "glowIntensity" attribute of the shader node.
Status Codes:

MStatus MFnLambertShader::setGlowIntensity ( const float &  glow_intensity  )

Sets the value of the "glowIntensity" attribute of a shader node.

Parameters:
[in]  glow_intensity  value to which the attribute will be set.
Returns:
Return status
Status Codes:

bool MFnLambertShader::hideSource ( MStatus ReturnStatus = NULL  )  const

Retrieves the value of the "hideSource" attribute of a shader node. This attribute determines whether or not the computed surface color is used in the shading computation. If hideSource is true, then only the computed shader glow color will be used. Otherwise, both the glow and surface colors will be used.

Parameters:
[out]  ReturnStatus  return status
Returns:
The value of the "hideSource" attribute of the shader node.
Status Codes:

MStatus MFnLambertShader::setHideSource ( const bool &  hide_source  )

Sets the value of the "hideSource" attribute of a shader node.

Parameters:
[in]  hide_source  value to which the attribute will be set.
Returns:
Return status
Status Codes:
