MFnRadialField Class Reference
[OpenMayaFX - API module for effects, FunctionSet classes]

#include <MFnRadialField.h>

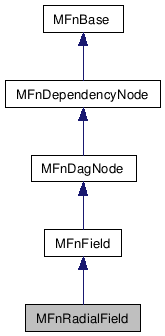

Inheritance diagram for MFnRadialField:

[legend]

Collaboration diagram for MFnRadialField:

[legend]

List of all members.

---

Detailed Description

Function set for Radial Fields.

Function set for creation, edit, and query of Radial Fields.

A radial field pushes objects directly away or pulls them directly toward itself, like a magnet.

Public Member Functions
virtual MFn::Type	type () const
	Function set type.
virtual	~MFnRadialField ()
	Destructor.
	MFnRadialField ()
	Default constructor.
	MFnRadialField (MObject &object, MStatus *ReturnStatus=NULL)
	Constructor.
	MFnRadialField (const MDagPath &object, MStatus *ret=NULL)
	Constructor.
double	radialType (MStatus *ReturnStatus=NULL) const
MStatus	setType (double value)
	MFnRadialField (const MObject &object, MStatus *ret=NULL)
	Constructor.
Protected Member Functions
virtual const char *	className () const
	Class name.

---

Constructor & Destructor Documentation

MFnRadialField::~MFnRadialField

(

)

[virtual]

Destructor.

Class destructor.

MFnRadialField::MFnRadialField	(	MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnRadialField::MFnRadialField	(	const MDagPath &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given constant MDagPath object.

Parameters:

[in]	object	The const MDagPath to attach the function set to
[out]	ReturnStatus	The return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnRadialField::MFnRadialField	(	const MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

---

Member Function Documentation

MFn::Type MFnRadialField::type

(

)

const [virtual]

Function set type.

Return the class type : MFn::kRadial

Reimplemented from MFnField.

double MFnRadialField::radialType

(

MStatus *

ReturnStatus = NULL

)

const

Returns a type that controls the way the radial field is attenuated.

Parameters:

[out]

ReturnStatus

Status code

Returns:

• A value representing a type of radial field attenuation.
• A value of 1 uses the magnitude, attenuation, and distance settings from the field to determine the net force of the radial field.
• A value of 0 will use the ratio of the absolute distance and the maximum distance setting.
• A value between 0 and 1 will create a linear blend between the two types.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnRadialField::setType

(

double

value

)

Sets a radial field type that controls the way the field is attenuated.

Parameters:

[in]

value

A value representing a type of radial field attenuation. A value of 1 uses the magnitude, attenuation, and distance settings from the field to determine the net force of the radial field. A value of 0 will use the ratio of the absolute distance and the maximum distance setting. A value between 0 and 1 will create a linear blend between the two types.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.
