MFnIkEffector Class Reference
[OpenMayaAnim - API module for animation, FunctionSet classes]

#include <MFnIkEffector.h>

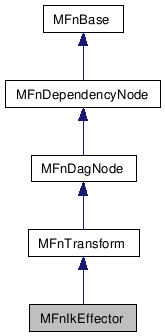

Inheritance diagram for MFnIkEffector:

[legend]

Collaboration diagram for MFnIkEffector:

[legend]

List of all members.

---

Detailed Description

Inverse kinematics end effector function set.

MFnIkEffector is the function set for inverse kinematic end effectors. An end effector is a point on the skeleton, usually the last bone. When an IK system solves, it is trying to calculate the rotations on the joints necessary to get the end effector to the target point.

The methods of the parent class MFnTransform used to position the end effector.

Public Member Functions
virtual MFn::Type	type () const
	Function set type.
virtual	~MFnIkEffector ()
	Destructor.
	MFnIkEffector ()
	Default constructor.
	MFnIkEffector (MObject &object, MStatus *ReturnStatus=NULL)
	Constructor.
	MFnIkEffector (const MDagPath &object, MStatus *ret=NULL)
	Constructor.
MObject	create (MObject parent=MObject::kNullObj, MStatus *ReturnStatus=NULL)
	MFnIkEffector (const MObject &object, MStatus *ret=NULL)
	Constructor.
Protected Member Functions
virtual const char *	className () const
	Class name.

---

Constructor & Destructor Documentation

MFnIkEffector::~MFnIkEffector

(

)

[virtual]

Destructor.

Class destructor.

MFnIkEffector::MFnIkEffector	(	MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnIkEffector::MFnIkEffector	(	const MDagPath &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given constant MDagPath object.

Parameters:

[in]	object	The const MDagPath to attach the function set to
[out]	ReturnStatus	The return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnIkEffector::MFnIkEffector	(	const MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

---

Member Function Documentation

MFn::Type MFnIkEffector::type

(

)

const [virtual]

Function set type.

Return the class type : MFn::kIkEffector

Reimplemented from MFnTransform.

const char * MFnIkEffector::className

(

)

const [protected, virtual]

Class name.

Return the class name : "MFnIkEffector"

Reimplemented from MFnTransform.

MObject MFnIkEffector::create	(	MObject	parent = MObject::kNullObj,
		MStatus *	ReturnStatus = NULL
	)

Creates a new end effector. For the effector to work properly, it should be given a joint as the parent. It should be given the joint before the last bone.

Parameters:

[in]	parent	parent DAG node (should be a joint)
[out]	ReturnStatus	return status

Returns:

A handle to the new object

Status Codes:

• MS::kSuccess operation successful
• MS::kLicenseFailure application not licensed for attempted operation
• MS::kFailure unexpected failure

Reimplemented from MFnTransform.
