MFnDragField Class Reference
[OpenMayaFX - API module for effects, FunctionSet classes]

#include <MFnDragField.h>

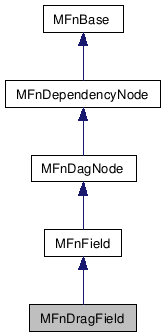

Inheritance diagram for MFnDragField:

[legend]

Collaboration diagram for MFnDragField:

[legend]

List of all members.

---

Detailed Description

Function set for Drag Fields.

Function set for creation, edit, and query of Drag Fields.

A drag field exerts a friction, or braking force, proportional to the speed of a moving object.

Public Member Functions
virtual MFn::Type	type () const
	Function set type.
virtual	~MFnDragField ()
	Destructor.
	MFnDragField ()
	Default constructor.
	MFnDragField (MObject &object, MStatus *ReturnStatus=NULL)
	Constructor.
	MFnDragField (const MDagPath &object, MStatus *ret=NULL)
	Constructor.
MVector	direction (MStatus *ReturnStatus=NULL) const
MStatus	setDirection (const MVector &dragDirection)
bool	useDirection (MStatus *ReturnStatus=NULL) const
MStatus	setUseDirection (bool enable)
	MFnDragField (const MObject &object, MStatus *ret=NULL)
	Constructor.
Protected Member Functions
virtual const char *	className () const
	Class name.

---

Constructor & Destructor Documentation

MFnDragField::~MFnDragField

(

)

[virtual]

Destructor.

Class destructor.

MFnDragField::MFnDragField	(	MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnDragField::MFnDragField	(	const MDagPath &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given constant MDagPath object.

Parameters:

[in]	object	The const MDagPath to attach the function set to
[out]	ReturnStatus	The return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnDragField::MFnDragField	(	const MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

---

Member Function Documentation

MFn::Type MFnDragField::type

(

)

const [virtual]

Function set type.

Return the class type : MFn::kDrag

Reimplemented from MFnField.

MVector MFnDragField::direction

(

MStatus *

ReturnStatus = NULL

)

const

Returns the direction of the drag force's influence along the x, y, and z axes. You must have the Use Direction setting turned on for this attribute to take effect.

Parameters:

[out]

ReturnStatus

Status code

Returns:

A vector representing direction.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnDragField::setDirection

(

const MVector &

dragDirection

)

Sets the direction of the drag force's influence along the x, y, and z axes. You must have the Use Direction setting turned on for this attribute to take effect.

Parameters:

[in]

dragDirection

A vector representing direction.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

bool MFnDragField::useDirection

(

MStatus *

ReturnStatus = NULL

)

const

Returns true if the braking force is exerted only against the component of the object's velocity that lies along the direction of the drag force.

Parameters:

[out]

ReturnStatus

Status code

Returns:

• true Use the direction setting to determine the braking force.
• false Use the objects velocity to determine the braking force.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnDragField::setUseDirection

(

bool

enable

)

Enables the braking force to be exerted only against the component of the object's velocity that lies along the direction setting of the drag force.

Parameters:

[in]

enable

Flag to enable or disable direction setting.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.
