MFnComponent Class Reference
[OpenMaya - API module for common classes, FunctionSet classes]

#include <MFnComponent.h>

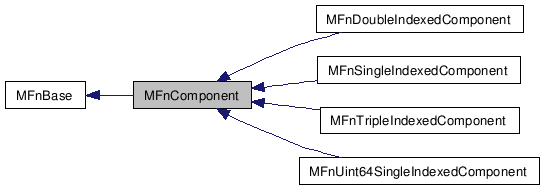

Inheritance diagram for MFnComponent:

[legend]

Collaboration diagram for MFnComponent:

[legend]

List of all members.

---

Detailed Description

Base class for component function sets.

This is the base class for all function sets which deal with component objects.

Components are MObjects which hold index information for shapes. The component object does not contain any information about the shape, it just contains index values and type information.

Components can be marked as complete meaning that the component represents a complete set of indices from 0 to numElements-1;

Components come is 3 varieties based upon the dimensions of the index. The types are single, double, and triple indexed. Examples of these types are mesh vertices (single indexed), nurbs surface CVs (double indexed), and lattice points (triple indexed).

To create, edit, or query a specific type of component, use the derived classes MFnSingleIndexedComponent, MFnDoubleIndexedComponent, and MFnTripleIndexedComponent.

Examples:

componentScaleManip.cpp.

Public Member Functions
virtual MFn::Type	type () const
	Function set type.
virtual	~MFnComponent ()
	Destructor.
	MFnComponent (MObject &object, MStatus *ReturnStatus=NULL)
	Constructor.
	MFnComponent ()
int	elementCount (MStatus *ReturnStatus=NULL)
MFn::Type	componentType (MStatus *ReturnStatus=NULL)
bool	isEmpty (MStatus *ReturnStatus=NULL) const
bool	isEqual (MObject &, MStatus *ReturnStatus=NULL) const
bool	isComplete (MStatus *ReturnStatus=NULL) const
MStatus	setComplete (bool)
bool	hasWeights () const
MWeight	weight (int index, MStatus *ReturnStatus=NULL) const
	MFnComponent (const MObject &object, MStatus *ReturnStatus=NULL)
	Constructor.
MFn::Type	type (MStatus *ReturnStatus=NULL)
	Obsolete & no script support.
Protected Member Functions
virtual const char *	className () const
	Class name.

---

Constructor & Destructor Documentation

MFnComponent::MFnComponent	(	MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnComponent::MFnComponent

(

)

Default class constructor

MFnComponent::MFnComponent	(	const MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

---

Member Function Documentation

MFn::Type MFnComponent::type

(

)

const [virtual]

Function set type.

Return the class type : MFn::kComponent

Reimplemented from MFnBase.

Reimplemented in MFnDoubleIndexedComponent, MFnSingleIndexedComponent, MFnTripleIndexedComponent, and MFnUint64SingleIndexedComponent.

const char * MFnComponent::className

(

)

const [protected, virtual]

Class name.

Return the class name : "MFnComponent"

Reimplemented from MFnBase.

Reimplemented in MFnDoubleIndexedComponent, MFnSingleIndexedComponent, MFnTripleIndexedComponent, and MFnUint64SingleIndexedComponent.

int MFnComponent::elementCount

(

MStatus *

ReturnStatus = NULL

)

Returns the number of elements that this component contains.

Parameters:

[out]

ReturnStatus

Status code

Returns:

The number of elements

Status Codes:

• MS::kSuccess The operation succeeded
• MS::kFailure Object error

MFn::Type MFnComponent::componentType

(

MStatus *

ReturnStatus = NULL

)

Returns the MFn type of the component.

Parameters:

[out]

ReturnStatus

Status code

Returns:

The type

Status Codes:

• MS::kSuccess The operation succeeded
• MS::kFailure Object error

bool MFnComponent::isEmpty

(

MStatus *

ReturnStatus = NULL

)

const

Determines if this component is empty, i.e. there are no index elements.

Parameters:

[out]

ReturnStatus

Status code

Returns:

True if empty, false otherwise

Status Codes:

• MS::kSuccess The operation succeeded
• MS::kFailure Object error

bool MFnComponent::isEqual	(	MObject &	component,
		MStatus *	ReturnStatus = NULL
	)			const

Compares this component with the given component.

Parameters:

[in]	component	component to compare
[out]	ReturnStatus	Status code

Returns:

True if the components are equal, false otherwise

Status Codes:

• MS::kSuccess The operation succeeded
• MS::kFailure Object error

bool MFnComponent::isComplete

(

MStatus *

ReturnStatus = NULL

)

const

Returns the complete state of the component.

Components can be marked as complete meaning that the component represents a complete set of indices from 0 to numElements-1;

Parameters:

[out]

ReturnStatus

Status code

Returns:

True if this component is complete, false otherwise

Status Codes:

• MS::kSuccess The operation succeeded
• MS::kFailure Object error

MStatus MFnComponent::setComplete

(

bool

complete

)

Sets the complete state of the component.

Components can be marked as complete meaning that the component represents a complete set of indices from 0 to numElements-1;

Important: if the component is set as complete, setCompleteData must also be called with the appropriate parameter (the total number of elements in the object). Note that setCompleteData(...) also sets the component as complete, thus 'setComplete(true)' may never need to appear in your code.

setCompleteData(...) is defined in derived classes.

Parameters:

[in]

complete

true sets the component as complete

Returns:

Status code

Status Codes:

• MS::kSuccess The operation succeeded
• MS::kFailure Object error

bool MFnComponent::hasWeights

(

)

const

Query this component for the existance of attached weight data. Weight data will be added to a component as part of soft selection and/or symmetry. Note that this method does not test for the existance of external weight information (e.g. deformer weights stored in separate attributes).

Returns:

True if the component includes weight data, false otherwise

MWeight MFnComponent::weight	(	int	index,
		MStatus *	ReturnStatus = NULL
	)			const

Return the weight data for a given element within this component. Note that this method does not return external weight data (e.g. deformer weights stored in separate attributes).

Parameters:

[in]	index	The element to return weight data for (note that this is the linear index between 0 and elementCount())
[out]	ReturnStatus	Status code

Returns:

The element weight data.

Status Codes:

• MS::kSuccess The operation succeeded
• MS::kFailure Object error

MFn::Type MFnComponent::type

(

MStatus *

ReturnStatus = NULL

)

Obsolete & no script support.

This method is obsolete. This method is not available in Python.

Deprecated:

Use the MFnComponent::componentType method instead.

Parameters:

[out]

ReturnStatus

Return status.
