MFnBlinnShader Class Reference
[OpenMaya - API module for common classesFunctionSet classes]

#include <MFnBlinnShader.h>

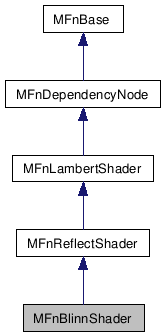

Inheritance diagram for MFnBlinnShader:
Inheritance graph
[legend]
Collaboration diagram for MFnBlinnShader:
Collaboration graph
[legend]

List of all members.


Detailed Description

Manage Blinn shaders.

MFnBlinnShader facilitates creation and manipulation of dependency graph nodes representing Blinn shaders.


Public Member Functions

virtual MFn::Type  type () const
  Function set type.
virtual  ~MFnBlinnShader ()
  Destructor.
  MFnBlinnShader ()
  Default constructor.
  MFnBlinnShader (MObject &object, MStatus *ReturnStatus=NULL)
  Constructor.
MObject  create (bool UIvisible=true, MStatus *ReturnStatus=NULL)
float  eccentricity (MStatus *ReturnStatus=NULL) const
MStatus  setEccentricity (const float &eccentricity)
float  specularRollOff (MStatus *ReturnStatus=NULL) const
MStatus  setSpecularRollOff (const float &specular_rolloff)
  MFnBlinnShader (const MObject &object, MStatus *ReturnStatus=NULL)
  NO SCRIPT SUPPORT.

Protected Member Functions

virtual const char *  className () const
  Class name.

Constructor & Destructor Documentation

MFnBlinnShader::MFnBlinnShader ( MObject object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:
[in]  object  The MObject to attach the function set to
[out]  ReturnStatus  the return status
Status Codes:

MFnBlinnShader::MFnBlinnShader ( const MObject object,
MStatus ReturnStatus = NULL
)

NO SCRIPT SUPPORT.

Constructor

Class constructor that initializes the function set to the given MObject.

Parameters:
[in]  object  The MObject to attach the function set to
[out]  ReturnStatus  the return status
Status Codes:

Member Function Documentation

MFn::Type MFnBlinnShader::type (  )  const [virtual]

Function set type.

Return the class type : MFn::kBlinn

Reimplemented from MFnReflectShader.

const char * MFnBlinnShader::className (  )  const [protected, virtual]

Class name.

Return the class name : "MFnBlinnShader"

Reimplemented from MFnReflectShader.

MObject MFnBlinnShader::create ( bool  UIvisible = true,
MStatus ReturnStatus = NULL
)

Creates a new blinn shader dependency graph node and adds it to the dependency graph. If the UIvisible parameter is true, the new node will be connected to the shader classification node (which allows the UI to recognize the node as a shader). If UIvisible is false, the node will be created in isolation.

Parameters:
[in]  UIvisible  determines whether or not the new node will be connected to the shader classification node.
[out]  ReturnStatus  return status
Returns:
MObject representing the new dependency node.
Status Codes:
  • MS::kSuccess operation successful
  • MS::kInsufficientMemory ran out of memory
  • MS::kNoModelActive no model is currently active
  • MS::kLicenseFailure application not licensed for attempted operation
  • MS::kFailure the new node could not be created, or the new node could not be added to the dependency graph, or the new node could not be connected to the classification node.

Reimplemented from MFnLambertShader.

float MFnBlinnShader::eccentricity ( MStatus ReturnStatus = NULL  )  const

Retrieves the value of the "eccentricity" attribute of a blinn shader node. This attribute determines the size of the highlight produced by the shader.

Parameters:
[out]  ReturnStatus  return status
Returns:
The value of the "eccentricity" attribute of the shader node.
Status Codes:

MStatus MFnBlinnShader::setEccentricity ( const float &  eccentr  )

Sets the value of the "eccentricity" attribute of a shader node.

Parameters:
[in]  eccentr  value to which the attribute will be set.
Returns:
Return status
Status Codes:

float MFnBlinnShader::specularRollOff ( MStatus ReturnStatus = NULL  )  const

Retrieves the value of the "specularRollOff" attribute of a blinn shader node. This attribute controls the increased oblique angle reflectivity of the shader.

Parameters:
[out]  ReturnStatus  return status
Returns:
The value of the "specularRollOff" attribute of the shader node.
Status Codes:

MStatus MFnBlinnShader::setSpecularRollOff ( const float &  specular_rolloff  )

Sets the value of the "specularRollOff" attribute of a shader node.

Parameters:
[in]  specular_rolloff  value to which the attribute will be set.
Returns:
Return status
Status Codes:
