Select a vertex loop

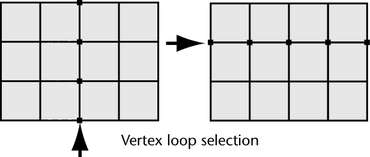

A vertex loop is a path of vertices that are connected in sequence by their shared edges. For example, if you select one vertex on a sphere, a loop selection selects all of the vertices along the same line of latitude or longitude on the sphere by selecting each successive vertex that is adjacent to the selected face.

Vertex loop selections let you select several vertices across a polygon mesh without having to select each vertex individually.

There are several options for selecting a vertex loop on a polygonal mesh in Maya. You can select:

• A vertex loop that fully traverses a polygonal mesh (closed loop)
• A vertex loop that partially traverses a polygonal mesh (open loop)

To select a vertex loop on a polygonal mesh

1. In the scene view, select the polygon mesh upon which you want to select the vertex loop.
2. Select one vertex in the vertex loop you want to select.
3. Double-click a vertex connected to an adjacent edge in the direction you want the vertex loop.

   All the vertices along the same line are selected.

To select a partial vertex loop on a polygonal mesh

1. In the scene view, select the polygon mesh upon which you want to select the vertex loop.
2. Select all the vertices you do not want to appear in the vertex loop.
3. Double-click an adjacent vertex in the direction you want the vertexloop.

   All the vertices along the same line are selected except for the vertices that were previously highlighted.
