One of the main characteristics of water is its volume uniformly fills the area inside a holding vessel or container. To give nParticles this volume characteristic, there needs to be space between individual particles. Be aware that having too much space can hinder the fluidity of the particles, which is another important characteristic of a liquid simulation.

Using the Liquid Radius Scale attribute, you can control the amount of space between nParticles.

Adjusting the liquid volume

To set Liquid Radius Scale and create liquid volume

In the Outliner, select nParticle_Water.
In the Attribute Editor, click the nParticle_WaterShape tab.
In the Liquid Simulation section, ensure that Enable Liquid Simulation is on.
Set Liquid Radius Scale to 2.0.
Play back the simulation.

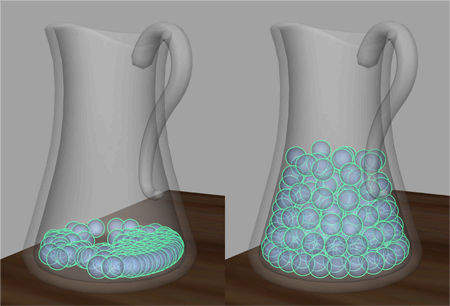

The nParticles are now stacked on top of each other, creating more volume in the pitcher.

For this liquid simulation, you want the nParticles to fill one-third of the pitcher. You can add more volume to the nParticles by adjusting the Nucleus solver Substeps and Max Collision Iterations.
Set Substeps and Max Collision Iterations by doing the following:
- In the Attribute Editor, click the nucleus1 tab.
- In the Solver Attributes section, set Substeps to 7.
- Set Max Collision Iterations to 10.
Play back the simulation.
The nParticles now fill the water pitcher, and when the pitcher tilts to pour, the nParticles have enough volume to exit and fill the glass.

More about Liquid Radius Scale

Be aware that Liquid Radius Scale can be affected by other nParticle attributes such as Radius and Collide Width Scale. For example, Liquid Radius Scale uses the nParticle object's Radius to determine how nParticles overlap, and any change in the nParticle Radius affects how nParticles overlap in the liquid simulation.

Adjusting the Nucleus solver Substeps and Max Collision Iterations also affects the volume that is generated by the Liquid Radius Scale value. You can experiment with these settings by changing Substeps to 10 and Max Collision Iterations to 15 and observing how your liquid simulation is affected.

In the next section of this lesson, you adjust nParticle Collide Scale Width and Incompressibility attributes to add fluidity to your simulation.
