Lesson 2: Creating a smoke simulation with nParticles

Adjusting nParticle velocity



Learning Resources > Tutorials > Getting Started with Maya > nParticles > Lesson 2: Creating a smoke simulation with nParticles >

Adding a Volume Axis field

You can use Maya Fields to animate the motion of nParticles and create the effect of nParticles flowing around obstacles, as well as creating pluming smoke, swirling tornadoes, and rocket exhaust. For a smoke simulation, you can add a Volume Axis field to the scene to create turbulence and swirling effects in the smoke as it rises through the air.

Maya Fields are not part of an nParticle object's Nucleus system and therefore you may need to compensate for the force of Nucleus Gravity and Wind by increasing or decreasing the field's magnitude. Depending on the effect you are creating, you can also turn on Ignore Solver Gravity or Ignore Solver Wind on the nParticleShape node so that your nParticle object is only affected by Maya Fields. For more information about Maya fields see the Dynamics guide.

To create a Volume Axis field

1. In the Outliner, select nParticle_Smoke, then add a Volume Axis field by selecting Fields > Volume Axis > .

   The Volume Axis Options window appears.

2. In the Volume Axis Options window, select Edit > Reset Settings.
3. In Volume axis field name, type Field_Smoke.
4. Set the following Volume Axis field settings:
   • Magnitude: 90
   • Attenuation: 2.0
   • Volume Shape: Cube
   • Away From Center: 4.546
   • Directional Speed: 1.834
   • Direction: X to 0 and Y to 1.0.
   • Turbulence: 0.661
   • Turbulence Speed: 0.157
5. Click Create.

   A Field_Smoke1 node appears in the Attribute Editor and in the Outliner.



   The Volume Axis field is placed at the scene origin by default. You must reposition the field so that the emitted nParticles travel through the volume.

To position the field in the path of the emitted nParticles

1. In the Outliner, select Field_Smoke1 and open the Channel Box by clicking .
2. In the Channel Box under Field_Smoke1, set the following:
   • TranslateX: 49.57
   • TranslateY: 133.8
   • TranslateZ: -26.49
   • ScaleX: 10
   • ScaleY: 10
   • ScaleZ: 10
3. Play the simulation.

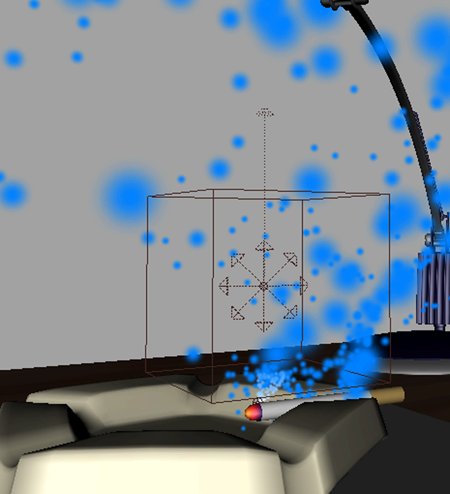

   The field creates turbulence in the nParticle smoke as it rises.

   However, to create the effect of the smoke curling and dissipating, you need to adjust the field and nParticle attributes further. For example, the emitted nParticles have too much velocity for the field to influence their behavior. You will make these adjustments in the next section.
