Stiffness Scale along curve and emit particles from curve example

User Guide > Dynamics and Effects > Hair > Samples and techniques for Hair > Sample dynamic curve scenarios >

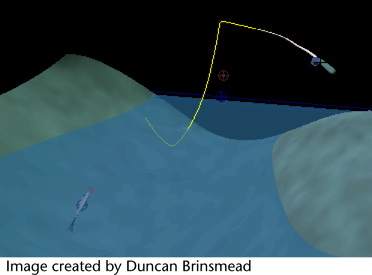

In this scenario a dynamic curve is created to simulate casting a fishing line. The Stiffness Scale is varied along the curve so it is somewhat stiff at the fishing rod end and very flexible along the fishing line. Particles are set to emit from the dynamic curve to simulate water dripping off the fishing line once it’s been cast and reeled in.

To play the animation, click the link below.

fishing.mov

To make the fishing rod and line

Create a new scene and switch to the Side orthographic view, then dolly out so you can see at least 30 spans.
Using Create > CV Curve Tool, create a long curve of about 30 spans straight up the Y-axis. You can use grid snap to help you. This curve will be both the fishing pole and the line.
Create a narrow NURBS cylinder for the base of the rod and position it beneath the curve.
Select the curve and to make it dynamic, select Hair > Make Selected Curves Dynamic.
Select Hair > Display > Current Position.
Open Hypergraph ( Window > Hypergraph: Hierarchy) and middle-drag the follicle under the cylinder. This parents the follicle to the cylinder.

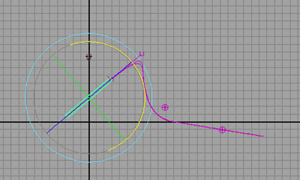

Rotate the cylinder 45 degrees to the right, as in the image below. The curve rotates with it.
Select the curve, then in the follicleShape in the Attribute Editor, set Point Lock to Base.
In the hairSystemShape, do the following:
- in the Dynamics section, set Stiffness to 0.500 and Drag to 0.005.
- in the Collisions section, turn on Collide Ground and set the Ground Height to -5.0.

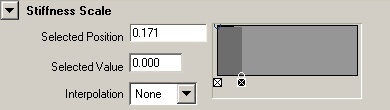

- in the Dynamics section, edit Stiffness Scale graph by setting Interpolation to None and then add one point to the graph as shown in the image below. The first part of the graph represents the fishing pole and has stiffness scale value of 1, while the rest is the fishing line with a stiffness scale value of 0.
Play the simulation.
Once the simulation has settled down, stop the simulation.
Select Hair > Set Start Position > from Current.

To add the water

Select the curve and, in the Surfaces menu set, select Edit Curves > Rebuild Curve > .
You want to add water dripping from just the part of the line which is under water.
In the Rebuild Curve Options window, set the following and then click Rebuild:
- Rebuild Type to Uniform
- for Keep, turn on CVs
- turn on Keep Original
Select the original curve (curveShape2) in the Outliner and hide it. ( Display > Hide > Selection)
Using the X-axis as the water line, select a curve point at the point the fishing line is under water.
Select Edit Curves > Detach Curves > , turn off Keep Original and then click Detach.
Delete the first half of the curve.
Select the remainder of the curve and select Particles > Emit from Object > .
In the Emitter Options (Emitter from Object) window, select Curve as the Emitter Type, set Speed to 0 and then click Create.
Play to see the particles.
Select the particles and in the particleShape tab in the Attribute Editor, set the Inherit Factor to 0.5.
To add a gravity field, select Fields > Gravity.
Select Display > Show > Show Last Hidden.
Play the simulation to see the particles, which should be dripping downwards from the part of the line that is underwater.

To cast the fishing line

Select the cylinder.
Select Solvers > Interactive Playback. Make sure your playback frame range is high.
Move the cylinder up above the water line.
Rotate the cylinder backwards and then quickly forwards in the X direction to cast the line.
If the line is not whippy enough, increase the Stiffness value. If Stiffness is already at 1, increase the Iterations until you achieve the desired effect.
