Turn on the properties you
want to be represented by gradients. You must select at least one
property. When a property is turned off, the default method is applied
(for Density and Velocity, Dynamic
Grid, and for Temperature and Fuel,
Off (zero).
Density/Velocity/Temperature/FuelGradient

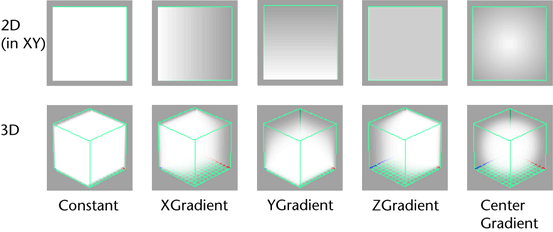

Select which predefined set
of values you want to place in the container:
Constant
Sets the value to 1 throughout
the fluid.
X Gradient
Sets a ramp of values from
1 to 0 along the X axis.
Y Gradient
Sets a ramp of values from
1 to 0 along the Y axis.
Z Gradient
Sets a ramp of values from
1 to 0 along the Z axis.
-X Gradient
Sets a ramp of values from
0 to 1 along the X axis.
-Y Gradient
Sets a ramp of values from
0 to 1 along the Y axis.
-Z Gradient
Sets a ramp of values from
0 to 1 along the Z axis.
Center Gradient
Sets a ramp of values from
1 at the center, to 0 along the edges.
