Connect default output to a specific input attribute

For more information about render nodes and connections, see About shading networks.

To connect two rendering nodes using a default output and explicit input connection

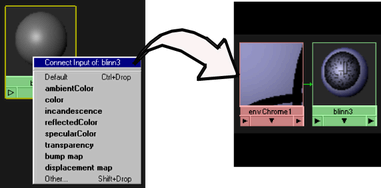

1. Middle-drag a node from within Hypershade, the Create Render Node window, or the Create Bar onto a node in Hypershade. The Connect Input menu of the receiving node appears.
2. Select the input attribute from the pop-up menu to make the desired connection.
