MMessage Class Reference
[OpenMaya - API module for common classes]

#include <MMessage.h>

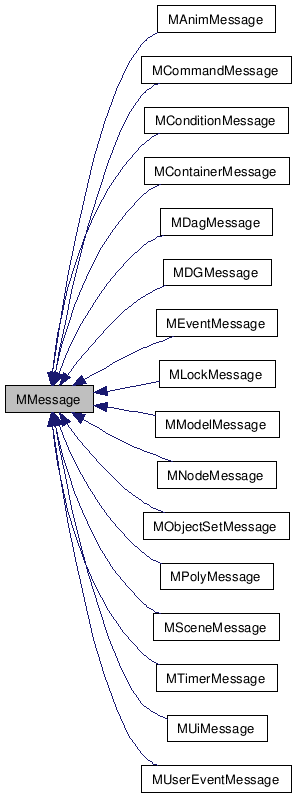

Inheritance diagram for MMessage:

Inheritance graph
[legend]

List of all members.


Detailed Description

Message base class.

This is the base class for message callbacks. This base class allows the user to remove a message callback. To register a callback, the user must use the addCallback methods in the message classes which inherit from this base class.

When a callback is added a number or id is returned. This id is used to keep track of the callback and is necessary for removing it. A callback id with the value 'NULL' represents an invalid callback. Use the removeCallback member function of this class for removing a callback.

It is the user's responsibility to keep track of the callback id's and remove all callbacks for a plug-in when it is unloaded.

Public Types

typedef void(* MBasicFunction )(void *clientData)
 Pointer to a basic callback function.
typedef void(* MElapsedTimeFunction )(float elapsedTime, float lastTime, void *clientData)
 Pointer to an elapsed time callback function.
typedef void(* MCheckFunction )(bool *retCode, void *clientData)
 Pointer to callback function which returns a true/false result.
typedef void(* MCheckFileFunction )(bool *retCode, MFileObject &file, void *clientData)
 Pointer to a callback function which takes a file object and returns a result.
typedef void(* MCheckPlugFunction )(bool *retCode, MPlug &plug, void *clientData)
 Pointer to a callback function which takes a plug and returns a result.
typedef void(* MComponentFunction )(MUintArray componentIds[], unsigned int count, void *clientData)
 Pointer to a callback function which takes an array of component ids.
typedef void(* MNodeFunction )(MObject &node, void *clientData)
 Pointer to a callback function which takes a dependency node.
typedef void(* MStringFunction )(const MString &str, void *clientData)
 Pointer to callback function which takes a string.
typedef void(* MNodeStringBoolFunction )(MObject &node, const MString &, bool, void *clientData)
 Pointer to a callback function which takes a node, a string and a boolean.
typedef void(* MStateFunction )(bool state, void *clientData)
 Pointer to a callback function which takes a boolean state.
typedef void(* MTimeFunction )(MTime &time, void *clientData)
 Pointer to callback function which takes a time.
typedef void(* MPlugFunction )(MPlug &srcPlug, MPlug &destPlug, bool made, void *clientData)
 Pointer to plug connection callback function.
typedef void(* MNodePlugFunction )(MObject &node, MPlug &plug, void *clientData)
 Pointer to a callback function which takes a dependency node and a plug.
typedef void(* MNodeStringFunction )(MObject &node, const MString &str, void *clientData)
 Pointer to a callback function which takes a dependency node and a string.
typedef void(* MParentChildFunction )(MDagPath &child, MDagPath &parent, void *clientData)
 Pointer to to a callback function which takes two DAG nodes in a parent/child relationship.
typedef void(* MModifierFunction )(MDGModifier &modifier, void *clientData)
 Pointer to a callback function which takes a DG modifier.
typedef void(* MStringArrayFunction )(const MStringArray &strs, void *clientData)
 Pointer to a callback function which takes a string array.
typedef void(* MNodeModifierFunction )(MObject &node, MDGModifier &modifier, void *clientData)
 Pointer to a callback function which takes a dependency node and a DG modifier.
typedef void(* MObjArray )(MObjectArray &objects, void *clientData)
 Pointer to a callback function which takes an array of objects.
typedef void(* MNodeObjArray )(MObject &node, MObjectArray &objects, void *clientData)
 Pointer to a callback function which takes a dependency node and an array of objects.
typedef void(* MStringNode )(const MString &str, MObject &node, void *clientData)
 Pointer to a callback function which takes a string and a dependency node.

Static Public Member Functions

static MStatus removeCallback (MCallbackId id)
static MStatus removeCallbacks (MCallbackIdArray &ids)
static MCallbackId currentCallbackId (MStatus *ReturnStatus=NULL)
static MStatus nodeCallbacks (MObject &node, MCallbackIdArray &ids)
static void setRegisteringCallableScript ()
static bool registeringCallableScript ()
static MStatus removeCallbacks (MIntArray &ids)
 This method is obsolete. This method is not available in Python.
static MStatus nodeCallbacks (MObject &node, MIntArray &ids)
 This method is obsolete. This method is not available in Python.


Member Typedef Documentation

typedef void(* MMessage::MBasicFunction)(void *clientData)

Pointer to a basic callback function.

Parameters:
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MElapsedTimeFunction)(float elapsedTime, float lastTime, void *clientData)

Pointer to an elapsed time callback function.

Parameters:
[in] elapsedTime The amount of time since the callback was last called.
[in] lastTime The execution time at the previous call to this callback.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MCheckFunction)(bool *retCode, void *clientData)

Pointer to callback function which returns a true/false result.

Parameters:
[in] retCode Result of the function. The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MCheckFileFunction)(bool *retCode, MFileObject &file, void *clientData)

Pointer to a callback function which takes a file object and returns a result.

Parameters:
[in] retCode Result of the function. The meaning depends upon the specific message type for which the callback was registered.
[in,out] file File object. The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MCheckPlugFunction)(bool *retCode, MPlug &plug, void *clientData)

Pointer to a callback function which takes a plug and returns a result.

Parameters:
[in] retCode Result of the function. The meaning depends upon the specific message type for which the callback was registered.
[in,out] plug The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MComponentFunction)(MUintArray componentIds[], unsigned int count, void *clientData)

Pointer to a callback function which takes an array of component ids.

Parameters:
[in] componentIds Array of component ids.
[in] count Number of component ids in the array.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MNodeFunction)(MObject &node, void *clientData)

Pointer to a callback function which takes a dependency node.

Parameters:
[in,out] node The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MStringFunction)(const MString &str, void *clientData)

Pointer to callback function which takes a string.

Parameters:
[in] str The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

Reimplemented in MUiMessage.

typedef void(* MMessage::MNodeStringBoolFunction)(MObject &node, const MString &, bool, void *clientData)

Pointer to a callback function which takes a node, a string and a boolean.

Parameters:
[in,out] node The meaning depends upon the specific message type for which the callback was registered.
[in] str The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MStateFunction)(bool state, void *clientData)

Pointer to a callback function which takes a boolean state.

Parameters:
[in] state The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MTimeFunction)(MTime &time, void *clientData)

Pointer to callback function which takes a time.

Parameters:
[in,out] time The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MPlugFunction)(MPlug &srcPlug, MPlug &destPlug, bool made, void *clientData)

Pointer to plug connection callback function.

Parameters:
[in,out] srcPlug Plug which is the source the connection.
[in,out] destPlug Plug which is the destination of the connection.
[in] made True if the connection is being made, false if the connection is being broken.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MNodePlugFunction)(MObject &node, MPlug &plug, void *clientData)

Pointer to a callback function which takes a dependency node and a plug.

Parameters:
[in,out] node The meaning depends upon the specific message type for which the callback was registered.
[in,out] plug The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MNodeStringFunction)(MObject &node, const MString &str, void *clientData)

Pointer to a callback function which takes a dependency node and a string.

Parameters:
[in,out] node The meaning depends upon the specific message type for which the callback was registered.
[in] str The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MParentChildFunction)(MDagPath &child, MDagPath &parent, void *clientData)

Pointer to to a callback function which takes two DAG nodes in a parent/child relationship.

Parameters:
[in,out] child Path to the child node.
[in,out] parent Path to the parent node.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MModifierFunction)(MDGModifier &modifier, void *clientData)

Pointer to a callback function which takes a DG modifier.

Parameters:
[in,out] modifier The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MStringArrayFunction)(const MStringArray &strs, void *clientData)

Pointer to a callback function which takes a string array.

Parameters:
[in] strs The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MNodeModifierFunction)(MObject &node, MDGModifier &modifier, void *clientData)

Pointer to a callback function which takes a dependency node and a DG modifier.

Parameters:
[in,out] node The meaning depends upon the specific message type for which the callback was registered.
[in,out] modifier The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MObjArray)(MObjectArray &objects, void *clientData)

Pointer to a callback function which takes an array of objects.

Parameters:
[in,out] objects The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MNodeObjArray)(MObject &node, MObjectArray &objects, void *clientData)

Pointer to a callback function which takes a dependency node and an array of objects.

Parameters:
[in,out] node The meaning depends upon the specific message type for which the callback was registered.
[in,out] objects The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.

typedef void(* MMessage::MStringNode)(const MString &str, MObject &node, void *clientData)

Pointer to a callback function which takes a string and a dependency node.

Parameters:
[in] str The meaning depends upon the specific message type for which the callback was registered.
[in,out] node The meaning depends upon the specific message type for which the callback was registered.
[in] clientData Pointer to user-defined data supplied when the callback was registered.


Member Function Documentation

MStatus MMessage::removeCallback ( MCallbackId  id  )  [static]

Remove the specified callback from maya.

This method must be called for all callbacks registered by a plug-in before that plug-in is unloaded.

Parameters:
[in] id identifier of callback to be removed
Returns:
Status code
Status Codes:
Examples:

MStatus MMessage::removeCallbacks ( MCallbackIdArray idList  )  [static]

Remove all of the specified callbacks from maya.

This method must be called for all callbacks registered by a plug-in before that plug-in is unloaded.

Parameters:
[in] idList identifier list of callbacks to be removed
Returns:
Status code
Status Codes:
Examples:

MCallbackId MMessage::currentCallbackId ( MStatus ReturnStatus = NULL  )  [static]

Return the callback ID of the currently executing callback. If called outside of a callback, an invalid MCallbackId and failed status will be returned.

Parameters:
[in] ReturnStatus Status code
Returns:
Callback ID of currently executing callback
Status Codes:
  • MS::kSuccess The callbackId was successfully retrieved.
  • MS::kFailure This method was executed outside of a user callback.
Examples:

MStatus MMessage::nodeCallbacks ( MObject node,
MCallbackIdArray ids
) [static]

Returns a list of callback IDs associated registered to a given node.

Parameters:
[in] node Node to query for callbacks.
[out] ids MCallbackId array to store the list of callback IDs.
Returns:
Status Code
Status Codes:

void MMessage::setRegisteringCallableScript (  )  [static]

Mark this MMessage object as one that will be passed callbacks defined in script.

bool MMessage::registeringCallableScript (  )  [static]

Return true if this MMessage object has its callbacks defined in script.

MStatus MMessage::removeCallbacks ( MIntArray idList  )  [static]

This method is obsolete. This method is not available in Python.

Deprecated:
Please use the other MMessage::removeCallbacks method.
Remove all of the specified callbacks from maya.

This method must be called for all callbacks registered by a plug-in before that plug-in is unloaded.

Parameters:
[in] idList identifier of callback to be removed
Returns:
Status code
Status Codes:

MStatus MMessage::nodeCallbacks ( MObject node,
MIntArray ids
) [static]

This method is obsolete. This method is not available in Python.

Deprecated:
Please use the other MMessage::nodeCallbacks method.
Returns a list of callback IDs associated registered to a given node.

Parameters:
[in] node Node to query for callbacks.
[out] ids Integer array to store the list of callback IDs.
Returns:
Status Code
Status Codes:


Autodesk® Maya® 2010 © 1997-2009 Autodesk, Inc. All rights reserved. Generated with doxygen 1.5.6
