MFnVolumeAxisField Class Reference
[OpenMayaFX - API module for effects, FunctionSet classes]

#include <MFnVolumeAxisField.h>

Inheritance diagram for MFnVolumeAxisField:

[legend]

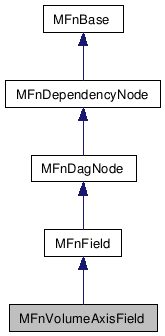

Collaboration diagram for MFnVolumeAxisField:

[legend]

List of all members.

---

Detailed Description

Function set for VolumeAxis Fields.

Function set for creation, edit, and query of VolumeAxis Fields.

A volume axis field provides in field form some of the speed controls of volume emitters.

Public Member Functions
virtual MFn::Type	type () const
	Function set type.
virtual	~MFnVolumeAxisField ()
	Destructor.
	MFnVolumeAxisField ()
	Default constructor.
	MFnVolumeAxisField (MObject &object, MStatus *ReturnStatus=NULL)
	Constructor.
	MFnVolumeAxisField (const MDagPath &object, MStatus *ret=NULL)
	Constructor.
bool	invertAttenuation (MStatus *ReturnStatus=NULL) const
MVector	direction (MStatus *ReturnStatus=NULL) const
double	speedAlongAxis (MStatus *ReturnStatus=NULL) const
double	speedAroundAxis (MStatus *ReturnStatus=NULL) const
double	speedAwayFromAxis (MStatus *ReturnStatus=NULL) const
double	speedAwayFromCenter (MStatus *ReturnStatus=NULL) const
double	directionalSpeed (MStatus *ReturnStatus=NULL) const
double	turbulence (MStatus *ReturnStatus=NULL) const
double	turbulenceSpeed (MStatus *ReturnStatus=NULL) const
MVector	turbulenceFrequency (MStatus *ReturnStatus=NULL) const
MVector	turbulenceOffset (MStatus *ReturnStatus=NULL) const
double	detailTurbulence (MStatus *ReturnStatus=NULL) const
MStatus	setInvertAttenuation (bool enable)
MStatus	setDirection (const MVector &direction)
MStatus	setSpeedAlongAxis (double value)
MStatus	setSpeedAroundAxis (double value)
MStatus	setSpeedAwayFromAxis (double value)
MStatus	setSpeedAwayFromCenter (double value)
MStatus	setDirectionalSpeed (double value)
MStatus	setTurbulence (double value)
MStatus	setTurbulenceSpeed (double value)
MStatus	setTurbulenceFrequency (const MVector &value)
MStatus	setTurbulenceOffset (const MVector &value)
MStatus	detailTurbulence (double value)
	MFnVolumeAxisField (const MObject &object, MStatus *ret=NULL)
	Constructor.
Protected Member Functions
virtual const char *	className () const
	Class name.

---

Constructor & Destructor Documentation

MFnVolumeAxisField::~MFnVolumeAxisField

(

)

[virtual]

Destructor.

Class destructor.

MFnVolumeAxisField::MFnVolumeAxisField	(	MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnVolumeAxisField::MFnVolumeAxisField	(	const MDagPath &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given constant MDagPath object.

Parameters:

[in]	object	The const MDagPath to attach the function set to
[out]	ReturnStatus	The return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

MFnVolumeAxisField::MFnVolumeAxisField	(	const MObject &	object,
		MStatus *	ReturnStatus = NULL
	)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:

[in]	object	The MObject to attach the function set to
[out]	ReturnStatus	the return status

Status Codes:

• MS::kSuccess if the function set is successfully attached
• MS::kInvalidParameter if the MObject does not represent a valid Maya object or if the function set is not allowed to attach to this MObject

---

Member Function Documentation

MFn::Type MFnVolumeAxisField::type

(

)

const [virtual]

Function set type.

Return the class type : MFn::kVolumeAxis

Reimplemented from MFnField.

bool MFnVolumeAxisField::invertAttenuation

(

MStatus *

ReturnStatus = NULL

)

const

Returns the value of the invertAttenuation attribute for the field force.

Parameters:

[out]

ReturnStatus

Status code

Returns:

• true Field is strongest close to volume outer boundary.
• false Field is strongest close to volume center.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MVector MFnVolumeAxisField::direction

(

MStatus *

ReturnStatus = NULL

)

const

Returns the direction attribute for the field force.

Parameters:

[out]

ReturnStatus

Status code

Returns:

A vector representing direction.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

double MFnVolumeAxisField::speedAlongAxis

(

MStatus *

ReturnStatus = NULL

)

const

Returns the alongAxis attribute of the field.

Parameters:

[out]

ReturnStatus

Status code

Returns:

A double value representing the speed along axis.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

double MFnVolumeAxisField::speedAroundAxis

(

MStatus *

ReturnStatus = NULL

)

const

Returns the aroundAxis attribute of the field.

Parameters:

[out]

ReturnStatus

Status code

Returns:

A double value representing the speed around axis.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

double MFnVolumeAxisField::speedAwayFromAxis

(

MStatus *

ReturnStatus = NULL

)

const

Returns the awayFromAxis attribute of the field.

Parameters:

[out]

ReturnStatus

Status code

Returns:

A double value representing the speed away from axis.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

double MFnVolumeAxisField::speedAwayFromCenter

(

MStatus *

ReturnStatus = NULL

)

const

Returns the awayFromCenter attribute of the field.

Parameters:

[out]

ReturnStatus

Status code

Returns:

A double value representing the speed away from center.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

double MFnVolumeAxisField::directionalSpeed

(

MStatus *

ReturnStatus = NULL

)

const

Returns the directionalSpeed attribute of the field.

Parameters:

[out]

ReturnStatus

Status code

Returns:

A double value representing the directional speed.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

double MFnVolumeAxisField::turbulence

(

MStatus *

ReturnStatus = NULL

)

const

Returns the turbulence intensity of the field.

Parameters:

[out]

ReturnStatus

Status code

Returns:

A double value representing the turbulence intensity.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

double MFnVolumeAxisField::turbulenceSpeed

(

MStatus *

ReturnStatus = NULL

)

const

Returns the rate of change of the turbulence over time.

Parameters:

[out]

ReturnStatus

Status code

Returns:

A double value representing the turbulence speed.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MVector MFnVolumeAxisField::turbulenceFrequency

(

MStatus *

ReturnStatus = NULL

)

const

Returns the turbulenceFrequency attribute for the field force.

Parameters:

[out]

ReturnStatus

Status code

Returns:

A vector representing frequency or scale of the turbulence.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MVector MFnVolumeAxisField::turbulenceOffset

(

MStatus *

ReturnStatus = NULL

)

const

Returns the turbulenceOffset attribute for the field force.

Parameters:

[out]

ReturnStatus

Status code

Returns:

A vector representing an offset or translation of the turbulence.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

double MFnVolumeAxisField::detailTurbulence

(

MStatus *

ReturnStatus = NULL

)

const

Returns the intensity of a second higher frequency turbulence.

Parameters:

[out]

ReturnStatus

Status code

Returns:

A double value for the intensity of fine scale turbulence.

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnVolumeAxisField::setInvertAttenuation

(

bool

enable

)

Enables the field will be stronger the closer to the edge of the volume a point is.

Parameters:

[in]

enable

Flag to invert falloff of intensity.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnVolumeAxisField::setDirection

(

const MVector &

direction

)

Sets the direction attribute for the field force.

Parameters:

[in]

direction

A vector representing direction.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnVolumeAxisField::setSpeedAlongAxis

(

double

speed

)

Sets the speed along axis attribute for the field force.

Parameters:

[in]

speed

A double representing the speed along axis.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnVolumeAxisField::setSpeedAroundAxis

(

double

speed

)

Sets the speed around axis attribute for the field force.

Parameters:

[in]

speed

A double representing the speed around axis.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnVolumeAxisField::setSpeedAwayFromAxis

(

double

speed

)

Sets the speed away from axis attribute for the field force.

Parameters:

[in]

speed

A double representing the speed away from axis.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnVolumeAxisField::setSpeedAwayFromCenter

(

double

speed

)

Sets the speed away from center attribute for the field force.

Parameters:

[in]

speed

A double representing the speed away from center.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnVolumeAxisField::setDirectionalSpeed

(

double

speed

)

Sets the directional speed attribute for the field force.

Parameters:

[in]

speed

A double representing the directional speed.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnVolumeAxisField::setTurbulence

(

double

value

)

Sets the turbulence attribute for the field force.

Parameters:

[in]

value

A double representing the turbulence intensity.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnVolumeAxisField::setTurbulenceSpeed

(

double

value

)

Sets the turbulence speed attribute for the field force.

Parameters:

[in]

value

A double representing the rate of change of the turbulence.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnVolumeAxisField::setTurbulenceFrequency

(

const MVector &

value

)

Sets the turbulenceFrequency attribute for the field force.

Parameters:

[in]

value

A vector representing the frequency of turbulence.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnVolumeAxisField::setTurbulenceOffset

(

const MVector &

value

)

Sets the turbulenceOffset attribute for the field force.

Parameters:

[in]

value

A vector representing the translation of turbulence.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.

MStatus MFnVolumeAxisField::detailTurbulence

(

double

value

)

Sets the detailTurbulence attribute for the field force.

Parameters:

[in]

value

A double representing the intensity of a second higher frequency turbulence.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kFailure An object error has occurred.
