MFnScaleManip Class Reference
[OpenMayaUI - API module for user interfaceFunctionSet classes]

#include <MFnScaleManip.h>

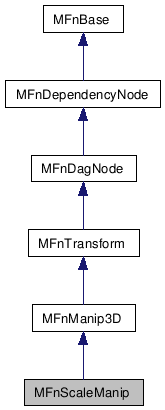

Inheritance diagram for MFnScaleManip:

Inheritance graph
[legend]
Collaboration diagram for MFnScaleManip:

Collaboration graph
[legend]

List of all members.


Detailed Description

ScaleManip function set.

This class provides access to the built-in Maya scale manipulator. The manipulator consists of three constrained-axis scale handles for non-proportional scaling, and a central handle for proportional scaling.

The manipulator provides data to the plugin through the scale manipVal. The scale value is a vector consisting of X, Y, and Z scale values. Each scale value represents a factor controlling how much an object should be extended along that dimension. The scale values are absolute and the initial scale value has a default of <1.0,1.0,1.0>.

The manipulator can be configured either to display with an object (which must be a DAG node) or to display at an arbitrary point using the scaleCenter manipVal.

Examples:

componentScaleManip.cpp, and swissArmyManip.cpp.


Public Member Functions

virtual MFn::Type type () const
 Function set type.
virtual ~MFnScaleManip ()
 Destructor.
 MFnScaleManip ()
 Default constructor.
 MFnScaleManip (MObject &object, MStatus *ReturnStatus=NULL)
 Constructor.
 MFnScaleManip (const MDagPath &object, MStatus *ret=NULL)
 Constructor.
MObject create (MStatus *ReturnStatus=NULL)
MObject create (const MString &manipName, const MString &scaleName, MStatus *ReturnStatus=NULL)
MStatus connectToScalePlug (const MPlug &scalePlug)
MStatus connectToScaleCenterPlug (const MPlug &scaleCenterPlug)
MStatus setInitialScale (const MVector &scale)
MStatus displayWithNode (const MObject &node)
MStatus setSnapMode (bool snapEnabled)
bool isSnapModeOn () const
MStatus setSnapIncrement (double snapInc)
double snapIncrement () const
unsigned int scaleIndex (MStatus *ReturnStatus=NULL) const
unsigned int scaleCenterIndex (MStatus *ReturnStatus=NULL) const
 MFnScaleManip (const MObject &object, MStatus *ret=NULL)
 Constructor.

Protected Member Functions

virtual const char * className () const
 Class name.

Constructor & Destructor Documentation

MFnScaleManip::~MFnScaleManip (  )  [virtual]

Destructor.

Class destructor.

MFnScaleManip::MFnScaleManip ( MObject object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:
[in] object The MObject to attach the function set to
[out] ReturnStatus the return status
Status Codes:

MFnScaleManip::MFnScaleManip ( const MDagPath object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given constant MDagPath object.

Parameters:
[in] object The const MDagPath to attach the function set to
[out] ReturnStatus The return status
Status Codes:

MFnScaleManip::MFnScaleManip ( const MObject object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:
[in] object The MObject to attach the function set to
[out] ReturnStatus the return status
Status Codes:


Member Function Documentation

MFn::Type MFnScaleManip::type (  )  const [virtual]

Function set type.

Return the class type : MFn::kScaleManip

Reimplemented from MFnManip3D.

const char * MFnScaleManip::className (  )  const [protected, virtual]

Class name.

Return the class name : "MFnScaleManip"

Reimplemented from MFnManip3D.

MObject MFnScaleManip::create ( MStatus ReturnStatus = NULL  )

Creates a new ScaleManip, and attaches this function set to the new manipulator.

This method should only be used to create a non-composite manipulator, meaning that the manipulator is standalone and not part of a container.

When the manipulator is being used, the feedback line will display a string including "Scale", indicating that this manipulator is in use.

Parameters:
[out] ReturnStatus return status
Returns:
An object corresponding to the new manipulator
Status Codes:

MObject MFnScaleManip::create ( const MString manipName,
const MString scaleName,
MStatus ReturnStatus = NULL
)

Creates a new ScaleManip, and attaches this function set to the new manipulator.

This method should only be used to create a non-composite manipulator, meaning that the manipulator is standalone and not part of a container.

When the manipulator is being used, the feedback line will display a string including scaleName, indicating that this manipulator is in use.

Parameters:
[in] manipName The name for the manipulator
[in] scaleName The string that displays in the feedback line while the scale value is being changed
[out] ReturnStatus return status
Returns:
An object corresponding to the new manipulator
Status Codes:

Reimplemented from MFnDependencyNode.

MStatus MFnScaleManip::connectToScalePlug ( const MPlug scalePlug  )

Create a 1-1 connection from the scale manipVal to the scalePlug parameter. Any changes to the scale manipVal will be immediately reflected in the connected plug. Connecting to the "scale" plug on a transform node will produce similar behavior to the built-in scale manipulator.

The plug must have a data type of MFnNumericData::k3Double.

Parameters:
[in] scalePlug The plug to connect the scale value to
Returns:
  • MS::kSuccess Successfully connected the plug
  • MS::kFailure Could not connect to the plug or an invalid object is attached to the function set

MStatus MFnScaleManip::connectToScaleCenterPlug ( const MPlug scaleCenterPlug  )

Create a 1-1 association of the scale center on the manipulator and the scaleCenterPlug parameter. When both the scale center is attached to a plug and the displayWithNode() method has been called, the manipulator will display with the node regardless of the connection made to the scale center.

The plug must have a data type of MFnNumericData::k3Double.

Parameters:
[in] scaleCenterPlug The plug to connect the scale center to
Returns:
  • MS::kSuccess Successfully connected the plug
  • MS::kFailure Could not connect to the plug or an invalid object is attached to the function set

MStatus MFnScaleManip::setInitialScale ( const MVector scale  )

Sets the initial scale for the scale manipulator. Setting the initial scale will prevent the manipulator from jumping back to the default scale when there is already an existing scale on the target plug.

Parameters:
[in] scale The initial scale
Returns:
  • MS::kSuccess Successfully set the initial scale
  • MS::kFailure Could not set the scale or an invalid object is attached to the function set

MStatus MFnScaleManip::displayWithNode ( const MObject node  )

Configures the manipulator to display with the node, causing the position of the manipulator to follow the position of the node whenever the node is moved. The node must be a DAG object.

Parameters:
[in] node The node the manipulator should display with
Returns:

MStatus MFnScaleManip::setSnapMode ( bool  snapEnabled  )

Sets the snap mode. The snap modes can be either on (true) or off (false). When snap mode is on, scale values will snap to scale value within some interval apart. The interval is set using setSnapIncrement().

Parameters:
[in] snapEnabled The new snap mode
Returns:

bool MFnScaleManip::isSnapModeOn (  )  const

Returns true when snap mode is on.

Returns:
Snap mode

MStatus MFnScaleManip::setSnapIncrement ( double  snapInc  )

Sets the snap increment. The snap increment is specified in the working unit, and is the distance between snap points when dragging the scale handles.

Parameters:
[in] snapInc The new snap increment
Returns:

double MFnScaleManip::snapIncrement (  )  const

Returns the snapping increment in working units.

Returns:
Snapping increment

unsigned int MFnScaleManip::scaleIndex ( MStatus ReturnStatus = NULL  )  const

Returns the index of the scale manipVal for this manipulator.

Parameters:
[out] ReturnStatus return status
Returns:
Scale index
Status Codes:
  • MS::kSuccess Successfully retrieved the index
  • MS::kFailure Failed to retrieve the index or the object attached to this function set is invalid

unsigned int MFnScaleManip::scaleCenterIndex ( MStatus ReturnStatus = NULL  )  const

Returns the index of the scale center manipVal for this manipulator.

Note that the scale center is only used for display of the manipulator and has no effect on scale values produced by the manipulator.

Parameters:
[out] ReturnStatus return status
Returns:
Scale center index
Status Codes:
  • MS::kSuccess Successfully retrieved the index
  • MS::kFailure Failed to retrieve the index or the object attached to this function set is invalid
