MFnPhongShader Class Reference
[OpenMaya - API module for common classesFunctionSet classes]

#include <MFnPhongShader.h>

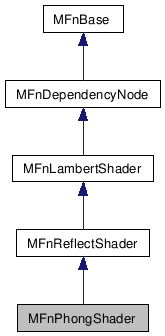

Inheritance diagram for MFnPhongShader:

Inheritance graph
[legend]
Collaboration diagram for MFnPhongShader:

Collaboration graph
[legend]

List of all members.


Detailed Description

Manage Phong Shaders.

MFnPhongShader facilitates the creation and manipulation of dependency graph nodes representing Phong shaders.

Public Member Functions

virtual MFn::Type type () const
 Function set type.
virtual ~MFnPhongShader ()
 Destructor.
 MFnPhongShader ()
 Default constructor.
 MFnPhongShader (MObject &object, MStatus *ReturnStatus=NULL)
 Constructor.
MObject create (bool UIvisible=true, MStatus *ReturnStatus=NULL)
float cosPower (MStatus *ReturnStatus=NULL) const
MStatus setCosPower (const float &cos_power)
 MFnPhongShader (const MObject &object, MStatus *ReturnStatus=NULL)
 Constructor.

Protected Member Functions

virtual const char * className () const
 Class name.


Constructor & Destructor Documentation

MFnPhongShader::MFnPhongShader ( MObject object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:
[in] object The MObject to attach the function set to
[out] ReturnStatus the return status
Status Codes:

MFnPhongShader::MFnPhongShader ( const MObject object,
MStatus ReturnStatus = NULL
)

Constructor.

Class constructor that initializes the function set to the given MObject.

Parameters:
[in] object The MObject to attach the function set to
[out] ReturnStatus the return status
Status Codes:


Member Function Documentation

MFn::Type MFnPhongShader::type (  )  const [virtual]

Function set type.

Return the class type : MFn::kPhong

Reimplemented from MFnReflectShader.

const char * MFnPhongShader::className (  )  const [protected, virtual]

Class name.

Return the class name : "MFnPhongShader"

Reimplemented from MFnReflectShader.

MObject MFnPhongShader::create ( bool  UIvisible = true,
MStatus ReturnStatus = NULL
)

Creates a new phong shader dependency graph node and adds it to the dependency graph. If the UIvisible parameter is true, the new node will be connected to the shader classification node (which allows the UI to recognize the node as a shader). If UIvisible is false, the node will be created in isolation.

Parameters:
[in] UIvisible determines whether or not the new node will be connected to the shader classification node.
[out] ReturnStatus return status
Returns:
MObject representing the new dependency node.
Status Codes:
  • MS::kSuccess operation successful
  • MS::kInsufficientMemory ran out of memory
  • MS::kNoModelActive no model is currently active
  • MS::kLicenseFailure application not licensed for attempted operation
  • MS::kFailure the new node could not be created, or the new node could not be added to the dependency graph, or the new node could not be connected to the classification node.

Reimplemented from MFnLambertShader.

float MFnPhongShader::cosPower ( MStatus ReturnStatus = NULL  )  const

Retrieves the value of the "cosPower" attribute of a phong shader node. This attribute determines the size of specular highlights produced by the shader.

Parameters:
[out] ReturnStatus return status
Returns:
The value of the "cosPower" attribute of the shader node.
Status Codes:

MStatus MFnPhongShader::setCosPower ( const float &  cos_power  )

Sets the value of the "cosPower" attribute of a shader node.

Parameters:
[in] cos_power value to which the attribute will be set.
Returns:
Return status
Status Codes:
