MPxManipulatorNode Class Reference
[OpenMayaUI - API module for user interfaceProxy classes]

#include <MPxManipulatorNode.h>

Inheritance diagram for MPxManipulatorNode:

Inheritance graph
[legend]

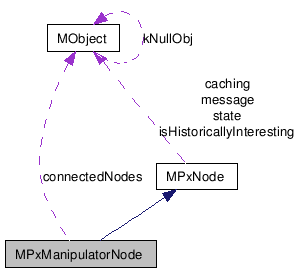

Collaboration diagram for MPxManipulatorNode:

Collaboration graph
[legend]

List of all members.


Detailed Description

Base class for manipulator creation.

MPxManipulatorNode is the base class used for creating user-defined manipulators. This class is derived from MPxNode since manipulators in Maya are dependency nodes.

An MPxManipulatorNode should implement the following method:

virtual void draw(M3dView &view, const MDagPath &path,M3dView::DisplayStyle style, M3dView::DisplayStatus status);

Additionally, several of the following virtuals will need to be defined:

virtual MStatus doPress( M3dView& view );
virtual MStatus doDrag( M3dView& view );
virtual MStatus doRelease( M3dView& view );

Implement the following method to properly support undo:

virtual MStatus connectToDependNode(const MObject &dependNode);

The draw() method is very important since drawing and picking are done together. The colorAndName() method should be called before drawing a GL component that should be pickable. Several color methods which return color indexes that Maya use are provided to allow custom manipulators to have a similar look.

When drawing a GL pickable component, an active name must be set. Use the glFirstHandle() to get this value from the base class.

A manipulator can be connected to a depend node instead of updating a node attribute directly in one of the do*() methods. To connect to a depend node, you must:

This class can work standalone or with MPxManipContainer.
Examples:

lineManip.h, lineManipContainer.cpp, lineManipContainer.h, squareScaleManip.h, and squareScaleManipContext.h.


Public Member Functions

 MPxManipulatorNode ()
virtual ~MPxManipulatorNode ()
virtual MStatus connectToDependNode (const MObject &dependNode)
virtual void draw (M3dView &view, const MDagPath &path, M3dView::DisplayStyle style, M3dView::DisplayStatus status)
virtual MStatus doPress (M3dView &view)
virtual MStatus doDrag (M3dView &view)
virtual MStatus doRelease (M3dView &view)
MStatus finishAddingManips ()
MStatus colorAndName (M3dView &view, MGLuint glName, bool glNameIsPickable, short colorIndex) const
MStatus glFirstHandle (MGLuint &firstHandle)
MStatus glActiveName (MGLuint &glName)
MStatus mouseRay (MPoint &linePoint, MVector &lineDirection) const
MStatus mouseRayWorld (MPoint &linePoint, MVector &lineDirection) const
MStatus mousePosition (short &x_pos, short &y_pos)
MStatus mouseDown (short &x_pos, short &y_pos)
MStatus mouseUp (short &x_pos, short &y_pos)
MStatus addDoubleValue (const MString &valueName, double defaultValue, int &valueIndex)
MStatus addPointValue (const MString &valueName, const MPoint &defaultValue, int &valueIndex)
MStatus addVectorValue (const MString &valueName, const MVector &defaultValue, int &valueIndex)
MStatus setDoubleValue (int valueIndex, double value)
MStatus setPointValue (int valueIndex, const MPoint &value)
MStatus setVectorValue (int valueIndex, const MVector &value)
MStatus getDoubleValue (int valueIndex, bool previousValue, double &value)
MStatus getPointValue (int valueIndex, bool previousValue, MPoint &value)
MStatus getVectorValue (int valueIndex, bool previousValue, MVector &value)
MStatus connectPlugToValue (const MPlug &plug, int valueIndex, int &plugIndex)
short mainColor ()
short xColor ()
short yColor ()
short zColor ()
short prevColor ()
short lineColor ()
short dimmedColor ()
short selectedColor ()
short labelColor ()
short labelBackgroundColor ()

Static Public Member Functions

static MPxManipulatorNodenewManipulator (const MString &manipName, MObject &manipObject, MStatus *ReturnStatus=NULL)

Static Public Attributes

static MObject connectedNodes
 Connected node, message attribute.

Constructor & Destructor Documentation

MPxManipulatorNode::MPxManipulatorNode (  )

Class constructor

MPxManipulatorNode::~MPxManipulatorNode (  )  [virtual]

Class destructor


Member Function Documentation

MStatus MPxManipulatorNode::connectToDependNode ( const MObject node  )  [virtual]

This method connects the manipulator to the dependency node. This is a virtual method and needs to be overridden from the plug-in.

Parameters:
[in] node the node to which the manipulator should be connected
Returns:
MS::kSuccess if successful, an error status otherwise. The base class returns MS::kFailure if there are no connections between manip values and plug values.
Examples:

void MPxManipulatorNode::draw ( M3dView view,
const MDagPath path,
M3dView::DisplayStyle  style,
M3dView::DisplayStatus  status
) [virtual]

This method is overloaded to draw the manipulators. Selection is also setup with this method using the colorAndName() method call.

        // Begin the drawing
        view.beginGL();

        // Place before you draw the manipulator component that can
        // be pickable.
        MGLuint glPickableItem;
        glFirstHandle( glPickableItem );

        // Top
        topName = glPickableItem;
        colorAndName( view, glPickableItem, true, mainColor() );
        gGLFT->glBegin( GL_LINES );
                gGLFT->glVertex3fv( tl );
                gGLFT->glVertex3fv( tr );
        gGLFT->glEnd();

        // Right
        glPickableItem++;
        rightName = glPickableItem;
        colorAndName( view, glPickableItem, true, mainColor() );
        gGLFT->glBegin( GL_LINES );
                gGLFT->glVertex3fv( tr );
                gGLFT->glVertex3fv( br );
        gGLFT->glEnd();

        // ...

        // End the drawing
        view.endGL();

Parameters:
[in] view the view in which to draw
[in] path the current path
[in] style the display appearance
[in] status the display status
Examples:

MStatus MPxManipulatorNode::doPress ( M3dView view  )  [virtual]

This method gets called when the manipulator receives a mouse down event.

You should return kUnknownParameter to allow Maya to process the event also.

Parameters:
[in] view the view that is active
Returns:
Examples:

MStatus MPxManipulatorNode::doDrag ( M3dView view  )  [virtual]

This method gets called when the manipulator recieves a mouse drag event.

You should return kUnknownParameter to allow Maya to process the event also.

Parameters:
[in] view the view that is active
Returns:
Examples:

MStatus MPxManipulatorNode::doRelease ( M3dView view  )  [virtual]

This method gets called when the manipulator recieves a mouse release event.

You should return kUnknownParameter to allow Maya to process the event also.

Parameters:
[in] view the view that is active
Returns:
Examples:

MStatus MPxManipulatorNode::finishAddingManips (  )

This method should be called from the user-defined manipulator plug-in near the end of the connectToDependNode method so that the converter in the manipulator can be initialized. The converter cannot be initialized until all the connections from the manip values to the plug values have been specified.

Returns:

MStatus MPxManipulatorNode::colorAndName ( M3dView view,
MGLuint  glName,
bool  glNameIsPickable,
short  colorIndex
) const

This method is used to set the color of the GL component that is being drawn next. It is also used to set GL name of the component so that picking can be supported.

Parameters:
[in] view the view that is active
[in] glName the unsigned int name of the object. Make unique.
[in] glNameIsPickable if true, the component will be pickable
[in] colorIndex color to use. Can call one of class color methods.
Returns:

MStatus MPxManipulatorNode::glFirstHandle ( MGLuint &  firstHandle  )

This method is used to find the unsigned int value that should be used for the first GL handle.

Parameters:
[in] firstHandle returns the first handle
Returns:

MStatus MPxManipulatorNode::glActiveName ( MGLuint &  glName  )

This method returns the unsigned int value which specifies the current active handle.

Parameters:
[in] glName active handle
Returns:

MStatus MPxManipulatorNode::mouseRay ( MPoint linePoint,
MVector lineDirection
) const

This method returns the location of the mouse within a view. The location is defined by a point and a direction through the point. Both point and direction are in local space.

Parameters:
[out] linePoint local space line point of mouse
[out] lineDirection local direction of mouse in view
Returns:

MStatus MPxManipulatorNode::mouseRayWorld ( MPoint linePoint,
MVector lineDirection
) const

This method returns the location of the mouse within a view. The location is defined by a point and a direction through the point. Both point and direction are in world space.

Parameters:
[out] linePoint world space line point of mouse
[out] lineDirection world direction of mouse in view
Returns:

MStatus MPxManipulatorNode::mousePosition ( short &  x_pos,
short &  y_pos
)

This method returns the current mouse position within a view. The position is in port coordinates.

Parameters:
[out] x_pos returns the x port coordinate
[out] y_pos returns the y port coordinate
Returns:

MStatus MPxManipulatorNode::mouseDown ( short &  x_pos,
short &  y_pos
)

This method returns the mouse down position within a view. The position is in port coordinates.

Parameters:
[out] x_pos returns the mouse down x port coordinate
[out] y_pos returns the mouse down y port coordinate
Returns:

MStatus MPxManipulatorNode::mouseUp ( short &  x_pos,
short &  y_pos
)

This method returns the mouse up position within a view. The position is in port coordinates.

Parameters:
[out] x_pos returns the mouse up x port coordinate
[out] y_pos returns the mouse up y port coordinate
Returns:

MStatus MPxManipulatorNode::addDoubleValue ( const MString valueName,
double  defaultValue,
int &  valueIndex
)

Manipulators which call connectPlugToValue() must first create the value on the node. Use this method to create a value of double type.

Parameters:
[in] valueName name of the value
[in] defaultValue default double value
[in] valueIndex returned value index. Used in connectPlugToValue()
Returns:

MStatus MPxManipulatorNode::addPointValue ( const MString valueName,
const MPoint defaultValue,
int &  valueIndex
)

Manipulators which call connectPlugToValue() must first create the value on the node. Use this method to create a value of double MPoint.

Parameters:
[in] valueName name of the value
[in] defaultValue default MPoint value
[in] valueIndex returned value index. Used in connectPlugToValue()
Returns:

MStatus MPxManipulatorNode::addVectorValue ( const MString valueName,
const MVector defaultValue,
int &  valueIndex
)

Manipulators which call connectPlugToValue() must first create the value on the node. Use this method to create a value of double MVector.

Parameters:
[in] valueName name of the value
[in] defaultValue default MVector value
[in] valueIndex returned value index. Used in connectPlugToValue()
Returns:

MStatus MPxManipulatorNode::setDoubleValue ( int  valueIndex,
double  value
)

This method is used for setting a double value associated with the manipulator.

Parameters:
[in] valueIndex the index of the value to be set
[in] value the value to set it to
Returns:

MStatus MPxManipulatorNode::setPointValue ( int  valueIndex,
const MPoint value
)

This method is used for setting an MPoint value associated with the manipulator.

Parameters:
[in] valueIndex the index of the value to be set
[in] value the value to set it to
Returns:

MStatus MPxManipulatorNode::setVectorValue ( int  valueIndex,
const MVector value
)

This method is used for setting a MVector value associated with the manipulator.

Parameters:
[in] valueIndex the index of the value to be set
[in] value the value to set it to
Returns:

MStatus MPxManipulatorNode::getDoubleValue ( int  valueIndex,
bool  previousValue,
double &  value
)

This method is used for getting a double value associated with the manipulator.

Parameters:
[in] valueIndex the index of the value to be set
[in] previousValue if true, get the previous value. if false, get the current value
[out] value return the double value
Returns:

MStatus MPxManipulatorNode::getPointValue ( int  valueIndex,
bool  previousValue,
MPoint value
)

This method is used for getting a MPoint value associated with the manipulator.

Parameters:
[in] valueIndex the index of the value to be set
[in] previousValue if true, get the previous value. if false, get the current value
[out] value return the double value
Returns:

MStatus MPxManipulatorNode::getVectorValue ( int  valueIndex,
bool  previousValue,
MVector value
)

This method is used for getting a MVector value associated with the manipulator.

Parameters:
[in] valueIndex the index of the value to be set
[in] previousValue if true, get the previous value. if false, get the current value
[out] value return the double value
Returns:

MStatus MPxManipulatorNode::connectPlugToValue ( const MPlug plug,
int  valueIndex,
int &  plugIndex
)

This method is called in the connectToDependNode() virtual if it is implemented for the custom manipulator. It will connect a plug to an already added manipulator value of the same type.

Parameters:
[in] plug the plug to connect the value to
[in] valueIndex the index of the value. index is set by add*Value() method
[out] plugIndex a new index for the plug that is being connected
Returns:

MPxManipulatorNode * MPxManipulatorNode::newManipulator ( const MString manipName,
MObject manipObject,
MStatus ReturnStatus = NULL
) [static]

This static function is used to create a user-defined manipulator. The manipObject argument is set to the new manipulator node. Note that the manipName argument must be the name of a manipulator derived from MPxManipulatorNode. Also note that this method creates the newManipulator, but doesn't add it to the DAG. The primary use of this method is in conjunction with MPxSelectionContext::addManipulator, to add user-defined manipulators to a context.

Parameters:
[in] manipName manipulator name
[in] manipObject manipulator object
Returns:
The new manipulator

short MPxManipulatorNode::mainColor (  )

This method returns the main color index.

short MPxManipulatorNode::xColor (  )

This method returns the color index of the x axis.

short MPxManipulatorNode::yColor (  )

This method returns the color index of the y axis.

short MPxManipulatorNode::zColor (  )

This method returns the color index of the z axis.

short MPxManipulatorNode::prevColor (  )

This method returns the previously color used by the colorAndName() method.

short MPxManipulatorNode::lineColor (  )

This method returns the color index of a line.

short MPxManipulatorNode::dimmedColor (  )

This method returns the color index for a dimmed or unselectable component.

short MPxManipulatorNode::selectedColor (  )

This method returns the color index of a selected component.

short MPxManipulatorNode::labelColor (  )

This method returns the color index of a label.

short MPxManipulatorNode::labelBackgroundColor (  )

This method returns the color index of a label background.


Autodesk® Maya® 2010 © 1997-2009 Autodesk, Inc. All rights reserved. Generated with doxygen 1.5.6
