PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION > Class Template Reference


#include <adskPassShader.h>

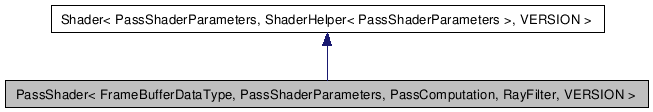

Inheritance diagram for PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >:

Collaboration diagram for PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >:

Detailed Description

Pass shader base class.

Template Parameters:

	PassShaderParameters	The type of the pass shader parameters.
	PassComputation	The helper function object which computes a value per sample. This function object will be constucted using using the current state, and the current parameters, and will be called with the state, parameters, and a reference to the current value in the frame buffer for the given sample.
	RayFilter	The helper function object which determines whether a ray should be processed or not. See `PassShaderEyeRayFilter` for an example implementation.
	VERSION	The version number of this shader.


Public Member Functions
	PassShader (miState pState, PassShaderParameters pParameters)
	PassShader constructor. This will be called once per shader instance, and is where data for each shader instance should be initialized.
virtual	~PassShader ()
	PassShader destructor. The member variables `mDestructorState` and `mDestructorParameters` will be set correctly when the destructor is called.
miBoolean	operator() (miColor pResult, miState pState, PassShaderParameters *pParameters)
	Main shading function.
Public Attributes
miUint	mFrameBufferID
miUint	mEncodingIndex
PassComputation	mPassComputation

template<typename FrameBufferDataType, typename PassShaderParameters, typename PassComputation, typename RayFilter, int VERSION>

PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >::PassShader	(	miState *	pState,
		PassShaderParameters *	pParameters
	)			`[inline]`

PassShader constructor. This will be called once per shader instance, and is where data for each shader instance should be initialized.

Parameters:

	pState	A pointer to the mental ray state structure.
	pParameters	A pointer to the shader parameters.

template<typename FrameBufferDataType, typename PassShaderParameters, typename PassComputation, typename RayFilter, int VERSION>

miBoolean PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >::operator()	(	miColor *	pResult,
		miState *	pState,
		PassShaderParameters *	pParameters
	)			`[inline]`

Main shading function.

This is the function which is called for shader samples.

Parameters:

	pResult	A pointer to the mental ray color result.
	pState	A pointer to the mental ray state structure.
	pParameters	A pointer to the shader parameters.

template<typename FrameBufferDataType, typename PassShaderParameters, typename PassComputation, typename RayFilter, int VERSION = 1>

miUint PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >::mFrameBufferID

The frame buffer IDs

template<typename FrameBufferDataType, typename PassShaderParameters, typename PassComputation, typename RayFilter, int VERSION = 1>

miUint PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >::mEncodingIndex

Index associated with the render pass. Used for lookups in the pass contribution encoding strings.

template<typename FrameBufferDataType, typename PassShaderParameters, typename PassComputation, typename RayFilter, int VERSION = 1>

PassComputation PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >::mPassComputation

Object used for performaing pass-specific computations
