Detailed Description

Definition in filekfbxutilities.h.

#include<fbxfilesdk/components/kbaselib/kaydaradef_h.h>
#include<fbxfilesdk/components/kbaselib/kaydara.h>
#include<fbxfilesdk/kfbxplugins/kfbxscene.h>
#include<fbxfilesdk/fbxfilesdk_nsbegin.h>
#include<fbxfilesdk/fbxfilesdk_nsend.h>

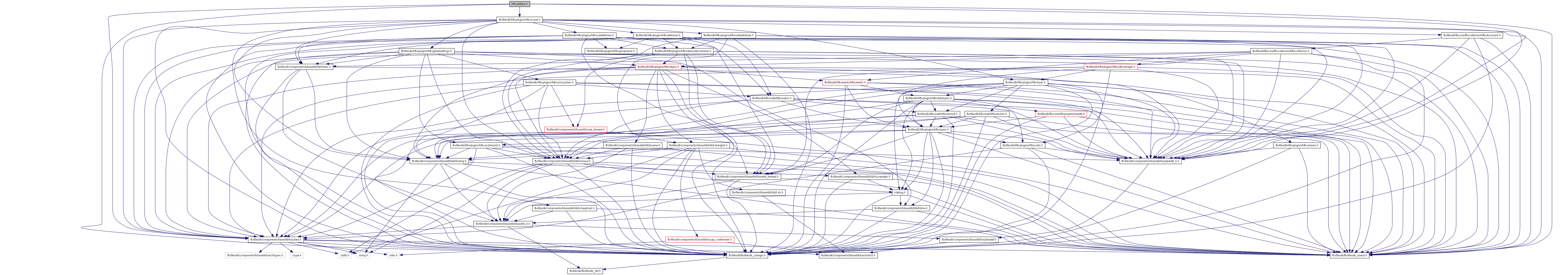

Include dependency graph for kfbxutilities.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
Scene cleaning
KFBX_DLL KArrayTemplate <KFbxNode*>	RemoveBadPolygonsFromMeshes(KFbxScene*pScene)
	Clean bad meshes in the scene by removing bad polygons.
File utilities
KFBX_DLL char *	FBXGet_Internet_Source_File(const char *url)
	Get the content of a file from an hyperlink.
KFBX_DLL void	FBXFree_Internet_Buffer(char *pBuf)
	Free the memory allocated byFBXGet_Internet_Source_File().
KFBX_DLLKString	KFbxFullPath(const char *pRelativePath)
	Get the full path of given path (if the given path is relative path, it will take current directory as default root path.
KFBX_DLLKString	KFbxExtractDirectory(const char *pFilePath)
	Extract Directory from the given file path.
KFBX_DLLKString	KFbxExtractFileName(const char *pFilePath, bool pWithExtension=true)
	Extract file name from the given file path.
KFBX_DLLKString	KFbxExtractFileExtension(const char *pFilePath)
	Extract the given file's extension.
KFBX_DLLKString	KFbxChangeFileExtension(const char *pFilePath, const char *pNewExtension)
	This function is used to change the given file's extension with given new extension, if the given file haven't extension,it will directly add the new extension at the end of given file.
KFBX_DLLKString	KFbxCleanPath(const char *pFilePath)
	Clean the redundant and useless denotations in given path name.
KFBX_DLLKString	KFbxGetRelativeFilePath(const char *pRootPath, const char *pNewFilePath)
	Get the given new path's relative path to the given root path.
KFBX_DLL bool	KFbxIsRelativePath(const char *pFilePath)
	Test if the given path is relative path, if it is return true.
KFBX_DLL bool	KFbxFileExist(const char *pFilePath)
	Find if the given file exist.If the given file without directory, it will find the file in the work directroy.
KFBX_DLL bool	KFbxEnsureDirectoryExistance(const char *pFilePath)
	Test if the given directory exists, if the directory does not exist, it will create this directory.
KFBX_DLLKString	KFbxGetApplicationDirectory()
	Get the application directory.
KFBX_DLLKString	KFbxMakeFullPath(const char *pRootPath, const char *pFilePath)
	Get the full path.
KFBX_DLL size_t	KGetProcessVirtualMemoryAvailSize()
	Returns the amount of virtual memory available to the process; will take into account swap file, and the process address space if there are such limits (ie: Win32 process can access 2, 3 or 4gb depending on the OS they're running on, Win64 has a much larger limit, limited possibly by the swap file).

Function Documentation

KFBX_DLL void FBXFree_Internet_Buffer

(

char *

pBuf

)

Free the memory allocated byFBXGet_Internet_Source_File().

Parameters:

pBuf

Pointer previously returned by a call toFBXGet_Internet_Source_File().

KFBX_DLL char* FBXGet_Internet_Source_File

(

const char *

url

)

Get the content of a file from an hyperlink.

Parameters:

url

The hyperlink to the file. The URL must start with<http://>ex:http://www.autodesk.com.

Returns:

An allocated<char *buffer>containing the source text. You must useFBXFree_Internet_Buffer()to free the allocated memory.

KFBX_DLLKStringKFbxChangeFileExtension	(	const char *	pFilePath,
		const char *	pNewExtension
	)

This function is used to change the given file's extension with given new extension, if the given file haven't extension,it will directly add the new extension at the end of given file.

The given new extension must add "." before the extension name.

Parameters:

	pFilePath	The old file path.
	pNewExtension	The given new extension, it must add "." before the extension name

Returns:

New file path with new extension name.

KFBX_DLLKStringKFbxCleanPath

(

const char *

pFilePath

)

Clean the redundant and useless denotations in given path name.

Parameters:

pFilePath

The file path.

Returns:

Cleaned path.

KFBX_DLL bool KFbxEnsureDirectoryExistance

(

const char *

pFilePath

)

Test if the given directory exists, if the directory does not exist, it will create this directory.

Parameters:

pFilePath

The given file path

Returns:

Trueif the directory exists or is created successfully,Falseif the directory does not exist nor isn't created successfully.

KFBX_DLLKStringKFbxExtractDirectory

(

const char *

pFilePath

)

Extract Directory from the given file path.

Parameters:

pFilePath

The given file path.

Returns:

The directory without file name.If there isn't any '\' or '/' in the given file path, it will directly return the given file path.

KFBX_DLLKStringKFbxExtractFileExtension

(

const char *

pFilePath

)

Extract the given file's extension.

Parameters:

pFilePath

The given file path.

Returns:

The file extension.

KFBX_DLLKStringKFbxExtractFileName	(	const char *	pFilePath,
		bool	pWithExtension=true
	)

Extract file name from the given file path.

Parameters:

	pFilePath	The given file path.
	pWithExtension	Decide the file name with extension or without extension. If it is true, return the file name with extension,if it is false, return the file name without extension.

Returns:

The file name.

KFBX_DLL bool KFbxFileExist

(

const char *

pFilePath

)

Find if the given file exist.If the given file without directory, it will find the file in the work directroy.

Parameters:

pFilePath

The given file path.

Returns:

Trueif the file exists,falseotherwise.

KFBX_DLLKStringKFbxFullPath

(

const char *

pRelativePath

)

Get the full path of given path (if the given path is relative path, it will take current directory as default root path.

)

Parameters:

pRelativePath

The relative path.

Returns:

Full path

KFBX_DLLKStringKFbxGetApplicationDirectory

(

)

Get the application directory.

Returns:

The application directory.

KFBX_DLLKStringKFbxGetRelativeFilePath	(	const char *	pRootPath,
		const char *	pNewFilePath
	)

Get the given new path's relative path to the given root path.

Parameters:

	pRootPath	The root path.
	pNewFilePath	The given new path.

Returns:

The relative path.

KFBX_DLL bool KFbxIsRelativePath

(

const char *

pFilePath

)

Test if the given path is relative path, if it is return true.

Parameters:

pFilePath

The given file path.

Returns:

Trueif it is a relative path,falseotherwise.

KFBX_DLLKStringKFbxMakeFullPath	(	const char *	pRootPath,
		const char *	pFilePath
	)

Get the full path.

Parameters:

	pRootPath	The root path.
	pFilePath	The file path.

KFBX_DLL size_t KGetProcessVirtualMemoryAvailSize

(

)

Returns the amount of virtual memory available to the process; will take into account swap file, and the process address space if there are such limits (ie: Win32 process can access 2, 3 or 4gb depending on the OS they're running on, Win64 has a much larger limit, limited possibly by the swap file).

KFBX_DLL KArrayTemplate<KFbxNode*>RemoveBadPolygonsFromMeshes

(

KFbxScene*

pScene

)

Clean bad meshes in the scene by removing bad polygons.

Parameters:

pScene

Pointer to the scene object.

Returns:

Array of nodes containing modified meshes.
