#include<kfbxlodgroup.h>

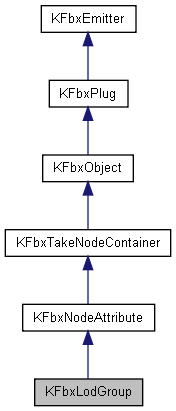

Inheritance diagram for KFbxLodGroup:

[legend]

List of all members.

Detailed Description

This node attribute contains the properties of a null node.

Definition at line54of filekfbxlodgroup.h.

Property Names
static const char *	sMinMaxDistance
static const char *	sMinDistance
static const char *	sMaxDistance
static const char *	sThresholds
static const char *	sWorldSpace
static const char *	sDisplayLevels
Property Default Values
static const fbxBool1	sDefaultMinMaxDistance
static const fbxDouble1	sDefaultMinDistance
static const fbxDouble1	sDefaultMaxDistance
static const fbxBool1	sDefaultWorldSpace
Public Types
enum	EDisplayLevel
	types.More...
Public Member Functions
virtualEAttributeType	GetAttributeType() const
	Return the type of node attribute which is EAttributeType::eLODGROUP.
int	GetNumThresholds() const
	Get the size of the threshold list.
bool	AddThreshold(fbxDistancepThreshValue)
	Add a new threshold value to the current list.
bool	SetThreshold(int pEl,fbxDistancepThreshValue)
	Set the threshold value for the specified object.
bool	GetThreshold(int pEl,fbxDistance&pThreshValue)
	Get the threshold value for the specified object.
int	GetNumDisplayLevels() const
	Get the size of the displayLevel list.
bool	AddDisplayLevel(KFbxLodGroup::EDisplayLevelpValue)
	Add a new displayLevel value to the current list.
bool	SetDisplayLevel(int pEl,KFbxLodGroup::EDisplayLevelpValue)
	Set the display level value for the specified object.
bool	GetDisplayLevel(int pEl,KFbxLodGroup::EDisplayLevel&pValue)
	Get the display level value for the specified object.
Public Attributes
KFbxTypedProperty<fbxBool1>	MinMaxDistance
	This property handles the use of the Min/Max distances.
KFbxTypedProperty<fbxDouble1>	MinDistance
	This property handles the Min distance value.
KFbxTypedProperty<fbxDouble1>	MaxDistance
	This property handles the Max distance value.
KFbxTypedProperty<fbxBool1>	WorldSpace
	This property handles the WorldSpace flag.

Member Enumeration Documentation

enumEDisplayLevel

types.

• eUseLOD
• eShow
• eHide

Definition at line89of filekfbxlodgroup.h.

Member Function Documentation

virtualEAttributeTypeGetAttributeType

(

)

const[virtual]

Return the type of node attribute which is EAttributeType::eLODGROUP.

Reimplemented fromKFbxNodeAttribute.

int GetNumThresholds

(

)

const

Get the size of the threshold list.

Returns:

The current size of the threshold list.

bool AddThreshold

(

fbxDistance

pThreshValue

)

Add a new threshold value to the current list.

Parameters:

pThreshValue

Threshold distance from the previous entry in the threshold list

Remarks:

This list can only expand so the only way to shrink it, is to completely destroy this object.

This method does not check the received values and blindly add them to the list. Therefore duplicated values can exist in different positions in the list.

Returns:

true if successful and false if any error occurred.

bool SetThreshold	(	int	pEl,
		fbxDistance	pThreshValue
	)

Set the threshold value for the specified object.

Parameters:

	pEl	The index of the object we want to set the threshold.
	pThreshValue	Threshold distance from the previous entry in the threshold list

Returns:

true if successful and false if the specified index is invalid.

bool GetThreshold	(	int	pEl,
		fbxDistance&	pThreshValue
	)

Get the threshold value for the specified object.

Parameters:

	pEl	The index of the object we want to get the threshold.
	pThreshValue	the current threshold value.

Returns:

true if successfull and false if the specified index is invalid.

Remarks:

in case of a failure, the pThreshValue is left unchanged.

int GetNumDisplayLevels

(

)

const

Get the size of the displayLevel list.

Returns:

The current size of the displayLevel list.

bool AddDisplayLevel

(

KFbxLodGroup::EDisplayLevel

pValue

)

Add a new displayLevel value to the current list.

Parameters:

pValue

Display level value

Remarks:

This list can only expand so the only way to shrink it, is to completely destroy this object.

This method does not check the received values and blindly add them to the list. Therefore duplicated values can exist in different positions in the list.

Returns:

true if successful and false if any error occurred.

bool SetDisplayLevel	(	int	pEl,
		KFbxLodGroup::EDisplayLevel	pValue
	)

Set the display level value for the specified object.

Parameters:

	pEl	The index of the object we want to set the display level.
	pValue	New display level value

Returns:

true if successful and false if the specified index is invalid.

bool GetDisplayLevel	(	int	pEl,
		KFbxLodGroup::EDisplayLevel&	pValue
	)

Get the display level value for the specified object.

Parameters:

	pEl	The index of the object we want to get the display level value.
	pValue	the current display level value.

Returns:

true if successfull and false if the specified index is invalid.

Remarks:

in case of a failure, the pValue is left unchanged.

Member Data Documentation

KFbxTypedProperty<fbxBool1>MinMaxDistance

This property handles the use of the Min/Max distances.

To access this property do: MinMaxDistance.Get(). To set this property do: MinMaxDistance.Set(bool).

Default value is false.

Definition at line108of filekfbxlodgroup.h.

KFbxTypedProperty<fbxDouble1>MinDistance

This property handles the Min distance value.

To access this property do: MinDistance.Get(). To set this property do: MinDistance.Set(double).

Default value is -100

Definition at line117of filekfbxlodgroup.h.

KFbxTypedProperty<fbxDouble1>MaxDistance

This property handles the Max distance value.

To access this property do: MaxDistance.Get(). To set this property do: MaxDistance.Set(double).

Default value is 100

Definition at line126of filekfbxlodgroup.h.

KFbxTypedProperty<fbxBool1>WorldSpace

This property handles the WorldSpace flag.

To access this property do: WorldSpace.Get(). To set this property do: WorldSpace.Set(bool).

Default value is false

Definition at line135of filekfbxlodgroup.h.
