#include<kfbxlight.h>

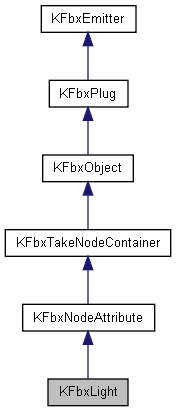

Inheritance diagram for KFbxLight:

Detailed Description

This node attribute contains methods for accessing the properties of a light.

Definition at line55of filekfbxlight.h.


Light Properties
enum	ELightType
	Light types.More...
enum	EDecayType
	Decay types.More...
K_DEPRECATED void	SetLightType(ELightTypepLightType)
	Set the light type.
K_DEPRECATEDELightType	GetLightType() const
	Get the light type.
K_DEPRECATED void	SetCastLight(bool pCastLight)
	Activate or disable the light.
K_DEPRECATED bool	GetCastLight() const
	Get the light state.
K_DEPRECATED void	SetCastShadows(bool pCastShadows)
	Set the shadow state for the light.
K_DEPRECATED bool	GetCastShadows() const
	Get the shadow state for the light.
K_DEPRECATED void	SetShadowColor(KFbxColor&pColor)
	Set the shadow color for the light.
K_DEPRECATEDKFbxColor	GetShadowColor() const
	Get the shadow color for the light.
void	SetShadowTexture(KFbxTexture*pTexture)
	Set the shadow texture for the light.
KFbxTexture*	GetShadowTexture() const
	Get the light state.
Light Property Names
static const char *	sLightType
static const char *	sCastLight
static const char *	sDrawVolumetricLight
static const char *	sDrawGroundProjection
static const char *	sDrawFrontFacingVolumetricLight
static const char *	sColor
	Property Names.
static const char *	sIntensity
static const char *	sHotSpot
static const char *	sConeAngle
static const char *	sFog
static const char *	sDecayType
static const char *	sDecayStart
static const char *	sFileName
static const char *	sEnableNearAttenuation
static const char *	sNearAttenuationStart
static const char *	sNearAttenuationEnd
static const char *	sEnableFarAttenuation
static const char *	sFarAttenuationStart
static const char *	sFarAttenuationEnd
static const char *	sCastShadows
static const char *	sShadowColor
Light Property Default Values
static constELightType	sDefaultLightType
static const fbxBool1	sDefaultCastLight
static const fbxBool1	sDefaultDrawVolumetricLight
static const fbxBool1	sDefaultDrawGroundProjection
static const fbxBool1	sDefaultDrawFrontFacingVolumetricLight
static const fbxDouble3	sDefaultColor
	Property Default Values.
static const fbxDouble1	sDefaultIntensity
static const fbxDouble1	sDefaultHotSpot
static const fbxDouble1	sDefaultConeAngle
static const fbxDouble1	sDefaultFog
static constEDecayType	sDefaultDecayType
static const fbxDouble1	sDefaultDecayStart
static constfbxString	sDefaultFileName
static const fbxBool1	sDefaultEnableNearAttenuation
static const fbxDouble1	sDefaultNearAttenuationStart
static const fbxDouble1	sDefaultNearAttenuationEnd
static const fbxBool1	sDefaultEnableFarAttenuation
static const fbxDouble1	sDefaultFarAttenuationStart
static const fbxDouble1	sDefaultFarAttenuationEnd
static const fbxBool1	sDefaultCastShadows
static const fbxDouble3	sDefaultShadowColor
Properties
KFbxTypedProperty<ELightType>	LightType
	This property handles the light type.
KFbxTypedProperty<fbxBool1>	CastLight
	This property handles the cast light on object flag.
KFbxTypedProperty<fbxBool1>	DrawVolumetricLight
	This property handles the draw volumetric ligtht flag.
KFbxTypedProperty<fbxBool1>	DrawGroundProjection
	This property handles the draw ground projection flag.
KFbxTypedProperty<fbxBool1>	DrawFrontFacingVolumetricLight
	This property handles the draw facing volumetric projection flag.
KFbxTypedProperty<fbxDouble3>	Color
	This property handles the light color.
KFbxTypedProperty<fbxDouble1>	Intensity
	This property handles the light intensity.
KFbxTypedProperty<fbxDouble1>	HotSpot
	This property handles the light inner cone angle (in degrees).
KFbxTypedProperty<fbxDouble1>	ConeAngle
	This property handles the light outer cone angle (in degrees).
KFbxTypedProperty<fbxDouble1>	Fog
	This property handles the light fog intensity.
KFbxTypedProperty<EDecayType>	DecayType
	This property handles the decay type.
KFbxTypedProperty<fbxDouble1>	DecayStart
	This property handles the decay start distance.
KFbxTypedProperty<fbxString>	FileName
	This property handles the gobo file name.
KFbxTypedProperty<fbxBool1>	EnableNearAttenuation
	This property handles the enable near attenuation flag.
KFbxTypedProperty<fbxDouble1>	NearAttenuationStart
	This property handles the near attenuation start distance.
KFbxTypedProperty<fbxDouble1>	NearAttenuationEnd
	This property handles the near end attenuation.
KFbxTypedProperty<fbxBool1>	EnableFarAttenuation
	This property handles the enable far attenuation flag.
KFbxTypedProperty<fbxDouble1>	FarAttenuationStart
	This property handles the far attenuation start distance.
KFbxTypedProperty<fbxDouble1>	FarAttenuationEnd
	This property handles the attenuation end distance.
KFbxTypedProperty<fbxBool1>	CastShadows
	This property handles the cast shadow flag.
KFbxTypedProperty<fbxDouble3>	ShadowColor
	This property handles the shadow color.
Gobo properties
K_DEPRECATED bool	SetFileName(char const *pFileName)
	Set the associated gobo file.
K_DEPRECATED char const *	GetFileName() const
	Get the associated gobo file path.
K_DEPRECATED void	SetDecayType(EDecayTypepDecayType)
	Sets the decay type.
K_DEPRECATEDEDecayType	GetDecayType() const
	Gets the decay type.
K_DEPRECATED void	SetDecayStart(double pDist)
	Sets the distance at which the light's intensity will decay.
K_DEPRECATED double	GetDecayStart() const
	Gets the distance at which the light instensity will decay.
K_DEPRECATED void	SetGroundProjection(bool pEnable)
	Enable gobo ground projection.
K_DEPRECATED bool	GetGroundProjection() const
	Get gobo ground projection flag.
K_DEPRECATED void	SetVolumetricProjection(bool pEnable)
	Enable gobo volumetric light projection.
K_DEPRECATED bool	GetVolumetricProjection() const
	Get gobo volumetric light projection flag.
K_DEPRECATED void	SetFrontVolumetricProjection(bool pEnable)
	Enable gobo front volumetric projection.
K_DEPRECATED bool	GetFrontVolumetricProjection() const
	Get gobo front volumetric light projection flag.
Default Animation Values
This set of functions provide direct access to default animation values specific to a light. The default animation values are found in the default take node of the associated node. These functions only work if the light has been associated with a node.
K_DEPRECATED void	SetDefaultColor(KFbxColor&pColor)
	Set default color.
K_DEPRECATEDKFbxColor&	GetDefaultColor(KFbxColor&pColor) const
	Get default color.
K_DEPRECATED void	SetDefaultIntensity(double pIntensity)
	Set default intensity.
K_DEPRECATED double	GetDefaultIntensity() const
	Get default intensity.
K_DEPRECATED void	SetDefaultConeAngle(double pConeAngle)
	Set default cone angle in degrees.
K_DEPRECATED double	GetDefaultConeAngle() const
	Get default cone angle in degrees.
K_DEPRECATED void	SetDefaultFog(double pFog)
	Set default fog.
K_DEPRECATED double	GetDefaultFog() const
	Get default fog.
Public Member Functions
virtualEAttributeType	GetAttributeType() const
	Return the type of node attribute which is EAttributeType::eLIGHT.

Member Enumeration Documentation

enumELightType

Light types.

ePOINT
eDIRECTIONAL
eSPOT

Definition at line74of filekfbxlight.h.

enumEDecayType

Decay types.

Used for setting the attenuation of the light.

eNONENo decay. The light's intensity will not diminish with distance.
eLINEARLinear decay. The light's intensity will diminish linearly with the distance from the light.
eQUADRATICQuadratic decay. The light's intensity will diminish with the squared distance from the light. This is the most physically accurate decay rate.
eCUBICCubic decay. The light's intensity will diminish with the cubed distance from the light.

Definition at line88of filekfbxlight.h.

Member Function Documentation

virtualEAttributeTypeGetAttributeType ( ) const[virtual]

Return the type of node attribute which is EAttributeType::eLIGHT.

Reimplemented fromKFbxNodeAttribute.

K_DEPRECATED void SetLightType ( ELightType pLightType )

Set the light type.

Parameters:

pLightType

The light type.

Remarks:: This function is deprecated. Use property LightType.Set(pLightType) instead.

K_DEPRECATEDELightTypeGetLightType ( ) const

Get the light type.

Returns:: The current light type.

Remarks:: This function is deprecated. Use property LightType.Get() instead.

K_DEPRECATED void SetCastLight ( bool pCastLight )

Activate or disable the light.

Parameters:

pCastLight Set totrueto enable the light.

Remarks:: This function is deprecated. Use property CastLight.Set(pCastLight) instead.

K_DEPRECATED bool GetCastLight ( ) const

Get the light state.

Returns:: trueif the light is currently active.

Remarks:: This function is deprecated. Use property CastLight.Get() instead.

K_DEPRECATED void SetCastShadows ( bool pCastShadows )

Set the shadow state for the light.

Parameters:

	pCastShadows	Set to`true`to have the light cast shadows. Activate or de-activate the shadow casting.
	pCastShadows	If`true`the casting is active.

Remarks:: This function is deprecated. Use property CastShadows.Set(pCastShadows) instead.

K_DEPRECATED bool GetCastShadows ( ) const

Get the shadow state for the light.

Returns:: trueif the light is currently casting shadows. Get shadow casting state.
trueif shadow casting is active.

Remarks:: This function is deprecated. Use property CastShadows.Get() instead.

K_DEPRECATED void SetShadowColor ( KFbxColor& pColor )

Set the shadow color for the light.

Parameters:

	pColor	The shadow color for the light expressed as kFbxColor. Set Shadow Color.
	pColor	Shadow color.

Remarks:: This function is deprecated. Use property ShadowColor.Set(pShadowColor) instead.

K_DEPRECATEDKFbxColorGetShadowColor ( ) const

Get the shadow color for the light.

Returns:: The shadow color of the light expressed as kFbxColor. Get Shadow Color.
Shadow Color.

Remarks:: This function is deprecated. Use property ShadowColor.Get() instead.

void SetShadowTexture ( KFbxTexture* pTexture )

Set the shadow texture for the light.

Parameters:

pTexture

The texture cast by the light shadow.

KFbxTexture* GetShadowTexture ( ) const

Get the light state.

Returns:: Pointer to the texture cast by the light shadow, orNULLif the shadow texture has not been set.

K_DEPRECATED bool SetFileName ( char const * pFileName )

Set the associated gobo file.

Parameters:

pFileName

The path of the gobo file.

Returns:: falseif the pointer is null.

Remarks:: The gobo file name must be valid. In addition, the gobo file must be an 8 bit grayscale TIFF image file with height and width dimensions must equal a power of two, and it cannot exceed 256 pixels.
This function is deprecated. Use property FileName.Set() instead.

K_DEPRECATED char const* GetFileName ( ) const

Get the associated gobo file path.

Returns:: The associated gobo file path, or an empty string if the gobo file has not been set (seeKFbxLight::SetFileName())

Remarks:: This function is deprecated. Use property FileName.Get() instead.

K_DEPRECATED void SetDecayType ( EDecayType pDecayType )

Sets the decay type.

Parameters:

pDecayType

The decay type

Remarks:: This function is deprecated. Use property DecayType.Set(pDecayType) instead.

K_DEPRECATEDEDecayTypeGetDecayType ( ) const

Gets the decay type.

Returns:: The decay type

Remarks:: This function is deprecated. Use property DecayType.Get() instead.

K_DEPRECATED void SetDecayStart ( double pDist )

Sets the distance at which the light's intensity will decay.

Parameters:

pDist

The distance

Remarks:: This function is deprecated. Use property DecayStart.Set(pDist) instead.

K_DEPRECATED double GetDecayStart ( ) const

Gets the distance at which the light instensity will decay.

Returns:: The distance

Remarks:: This function is deprecated. Use property DecayStart.Get() instead.

K_DEPRECATED void SetGroundProjection ( bool pEnable )

Enable gobo ground projection.

Parameters:

pEnable Set totrueto have the gobo project on the ground/floor.

Remarks:: This function is deprecated. Use property DrawGroundProjection.Set(pEnable) instead.

K_DEPRECATED bool GetGroundProjection ( ) const

Get gobo ground projection flag.

Returns:: trueif gobo ground projection is enabled.

Remarks:: This function is deprecated. Use property DrawGroundProjection.Get() instead.

K_DEPRECATED void SetVolumetricProjection ( bool pEnable )

Enable gobo volumetric light projection.

Parameters:

pEnable Set totrueto enable volumetric lighting projection.

Remarks:: This function is deprecated. Use property DrawVolumetricLight.Set(pEnable) instead.

K_DEPRECATED bool GetVolumetricProjection ( ) const

Get gobo volumetric light projection flag.

Returns:: trueif gobo volumetric light projection is enabled.

Remarks:: This function is deprecated. Use property DrawVolumetricLight.Get() instead.

K_DEPRECATED void SetFrontVolumetricProjection ( bool pEnable )

Enable gobo front volumetric projection.

Parameters:

pEnable Set totrueto enable front volumetric lighting projection.

Remarks:: This option is not supported in MotionBuilder.
This function is deprecated. Use property DrawFrontFacingVolumetricLight.Set(pEnable) instead.

K_DEPRECATED bool GetFrontVolumetricProjection ( ) const

Get gobo front volumetric light projection flag.

Returns:: trueif gobo front volumetric light projection is enabled.

Remarks:: This option is not supported in MotionBuilder.
This function is deprecated. Use property DrawFrontFacingVolumetricLight.Get() instead.

K_DEPRECATED void SetDefaultColor ( KFbxColor& pColor )

Set default color.

Parameters:

pColor

The color of the light.

Remarks:: The default value is white.
This function is deprecated. Use property Color.Set(pColor) instead.

K_DEPRECATEDKFbxColor&GetDefaultColor ( KFbxColor& pColor ) const

Get default color.

Parameters:

pColor

The color of the light.

Returns:: Input parameter filled with appropriate data.

Remarks:: The default value is white.
This function is deprecated. Use property Color.Get() instead.

K_DEPRECATED void SetDefaultIntensity ( double pIntensity )

Set default intensity.

Parameters:

pIntensity

The intensity value of the light.

Remarks:: The intensity range is from 0 to 200, where 200 is full intensity. The default value is 100.
This function is deprecated. Use property Intensity.Set(pIntensity) instead.

K_DEPRECATED double GetDefaultIntensity ( ) const

Get default intensity.

Returns:: The intensity value of the light.

Remarks:: The intensity range is from 0 to 200, where 200 is full intensity. The default value is 100.
This function is deprecated. Use property Intensity.Get() instead.

K_DEPRECATED void SetDefaultConeAngle ( double pConeAngle )

Set default cone angle in degrees.

The cone angle is the outer cone. The inner cone is set using the HotSpot property.

Parameters:

pConeAngle

The cone angle value of the light.

Remarks:: The cone angle has range is from 0 to 160 degrees. The default value is 45 degrees. This function has no effect if the light type is not set to eSPOT.
This function is deprecated. Use property ConeAngle.Set(pConeAngle) instead.

K_DEPRECATED double GetDefaultConeAngle ( ) const

Get default cone angle in degrees.

Returns:: The cone angle value of the light.

Remarks:: The cone angle has range is from 0 to 160 degrees. The default value is 45 degrees. This function has no effect if the light type is not set to eSPOT.
This function is deprecated. Use property ConeAngle.Get() instead.

K_DEPRECATED void SetDefaultFog ( double pFog )

Set default fog.

Parameters:

pFog

The fog value of the light.

Remarks:: This fog range is from 0 to 200, where 200 is full fog opacity. The default value is 50. This function has no effect if the light type is not set to eSPOT.
This function is deprecated. Use property Fog.Set(pFog) instead.

K_DEPRECATED double GetDefaultFog ( ) const

Get default fog.

Returns:: The fog value of the light.

Remarks:: This fog range is from 0 to 200, where 200 is full fog opacity. The default value is 50. This function has no effect if the light type is not set to eSPOT.
This function is deprecated. Use property Fog.Get() instead.

Member Data Documentation

const char*sColor[static]

Property Names.

Reimplemented fromKFbxNodeAttribute.

Definition at line401of filekfbxlight.h.

const fbxDouble3sDefaultColor[static]

Property Default Values.

Reimplemented fromKFbxNodeAttribute.

Definition at line428of filekfbxlight.h.

KFbxTypedProperty<ELightType>LightType

This property handles the light type.

To access this property do: LightType.Get(). To set this property do: LightType.Set(ELightType).

Default value is ePOINT

Definition at line464of filekfbxlight.h.

KFbxTypedProperty<fbxBool1>CastLight

This property handles the cast light on object flag.

To access this property do: CastLight.Get(). To set this property do: CastLight.Set(fbxBool1).

Default value is true

Definition at line473of filekfbxlight.h.

KFbxTypedProperty<fbxBool1>DrawVolumetricLight

This property handles the draw volumetric ligtht flag.

To access this property do: DrawVolumetricLight.Get(). To set this property do: DrawVolumetricLight.Set(fbxBool1).

Default value is true

Definition at line482of filekfbxlight.h.

KFbxTypedProperty<fbxBool1>DrawGroundProjection

This property handles the draw ground projection flag.

To access this property do: DrawGroundProjection.Get(). To set this property do: DrawGroundProjection.Set(fbxBool1).

Default value is true

Definition at line491of filekfbxlight.h.

KFbxTypedProperty<fbxBool1>DrawFrontFacingVolumetricLight

This property handles the draw facing volumetric projection flag.

To access this property do: DrawFrontFacingVolumetricLight.Get(). To set this property do: DrawFrontFacingVolumetricLight.Set(fbxBool1).

Default value is false

Definition at line500of filekfbxlight.h.

KFbxTypedProperty<fbxDouble3>Color

This property handles the light color.

To access this property do: Color.Get(). To set this property do: Color.Set(fbxDouble3).

Default value is (1.0, 1.0, 1.0)

Reimplemented fromKFbxNodeAttribute.

Definition at line509of filekfbxlight.h.

KFbxTypedProperty<fbxDouble1>Intensity

This property handles the light intensity.

To access this property do: Intensity.Get(). To set this property do: Intensity.Set(fbxDouble1).

Default value is 100.0

Definition at line518of filekfbxlight.h.

KFbxTypedProperty<fbxDouble1>HotSpot

This property handles the light inner cone angle (in degrees).

Also know as the HotSpot!

To access this property do: HotSpot.Get(). To set this property do: HotSpot.Set(fbxDouble1).

Default value is 45.0

Definition at line527of filekfbxlight.h.

KFbxTypedProperty<fbxDouble1>ConeAngle

This property handles the light outer cone angle (in degrees).

Also known as the Falloff

To access this property do: ConeAngle.Get(). To set this property do: ConeAngle.Set(fbxDouble1).

Default value is 45.0

Definition at line536of filekfbxlight.h.

KFbxTypedProperty<fbxDouble1>Fog

This property handles the light fog intensity.

To access this property do: Fog.Get(). To set this property do: Fog.Set(fbxDouble1).

Default value is 50.0

Definition at line545of filekfbxlight.h.

KFbxTypedProperty<EDecayType>DecayType

This property handles the decay type.

To access this property do: DecayType.Get(). To set this property do: DecayType.Set(EDecayType).

Default value is eNONE

Definition at line554of filekfbxlight.h.

KFbxTypedProperty<fbxDouble1>DecayStart

This property handles the decay start distance.

To access this property do: DecayStart.Get(). To set this property do: DecayStart.Set(fbxDouble1).

Default value is 0.0

Definition at line563of filekfbxlight.h.

KFbxTypedProperty<fbxString>FileName

This property handles the gobo file name.

To access this property do: FileName.Get(). To set this property do: FileName.Set(fbxString).

Default value is ""

Definition at line572of filekfbxlight.h.

KFbxTypedProperty<fbxBool1>EnableNearAttenuation

This property handles the enable near attenuation flag.

To access this property do: EnableNearAttenuation.Get(). To set this property do: EnableNearAttenuation.Set(fbxBool1).

Default value is false

Definition at line581of filekfbxlight.h.

KFbxTypedProperty<fbxDouble1>NearAttenuationStart

This property handles the near attenuation start distance.

To access this property do: NearAttenuationStart.Get(). To set this property do: NearAttenuationStart.Set(fbxDouble1).

Default value is 0.0

Definition at line590of filekfbxlight.h.

KFbxTypedProperty<fbxDouble1>NearAttenuationEnd

This property handles the near end attenuation.

To access this property do: NearAttenuationEnd.Get(). To set this property do: NearAttenuationEnd.Set(fbxDouble1).

Default value is 0.0

Definition at line599of filekfbxlight.h.

KFbxTypedProperty<fbxBool1>EnableFarAttenuation

This property handles the enable far attenuation flag.

To access this property do: EnableFarAttenuation.Get(). To set this property do: EnableFarAttenuation.Set(fbxBool1).

Default value is false

Definition at line608of filekfbxlight.h.

KFbxTypedProperty<fbxDouble1>FarAttenuationStart

This property handles the far attenuation start distance.

To access this property do: FarAttenuationStart.Get(). To set this property do: FarAttenuationStart.Set(fbxDouble1).

Default value is 0.0

Definition at line617of filekfbxlight.h.

KFbxTypedProperty<fbxDouble1>FarAttenuationEnd

This property handles the attenuation end distance.

To access this property do: FarAttenuationEnd.Get(). To set this property do: FarAttenuationEnd.Set(fbxDouble1).

Default value is 0.0

Definition at line626of filekfbxlight.h.

KFbxTypedProperty<fbxBool1>CastShadows

This property handles the cast shadow flag.

To access this property do: CastShadows.Get(). To set this property do: CastShadows.Set(fbxBool1).

Default value is false

Definition at line635of filekfbxlight.h.

KFbxTypedProperty<fbxDouble3>ShadowColor

This property handles the shadow color.

To access this property do: ShadowColor.Get(). To set this property do: ShadowColor.Set(fbxDouble3).

Default value is (0.0, 0.0, 0.0)

Definition at line644of filekfbxlight.h.

Detailed Description

Light Properties

Light Property Names

Light Property Default Values

Properties

Gobo properties

Default Animation Values

Public Member Functions

Member Enumeration Documentation

Member Function Documentation

Member Data Documentation
