Defining custom properties (user properties)

You can definecustom propertiesfor any object. To learn how, look at sample program UserProperties (seeUserProperties).

To learn how how to get data from custom properties, see functionDisplayUserProperties()in sample program ImportScene.

Defining a custom object type

The FBX SDK object model can be extended with acustom object type. For an example, see how a new class MyKFbxMesh is created from class KFbxMesh in sample program ExportScene03 (seeExportScene03).

Defining a custom type (user data) for layer elements

To create a layer element with a custom type, use class KFbxLayerElementUserData. Like any other layer element, it can be mapped by polygon vertex, by vertex, by polygon, etc.

See functionCreateCubeWithMaterialAndMyKFbxMesh()in sample program ExportScene03 (seeExportScene03). It creates a custom compound based on float and boolean data types, and adds data per vertex.

Supporting additional file formats

FBX imports and exports scene data using several file formats, including FBX, COLLADA, OBJ, etc.

Each of these file formats has its own writer class (subclassed from classKFbxWriter) reader and reader class (subclassed from classKFbxReader).

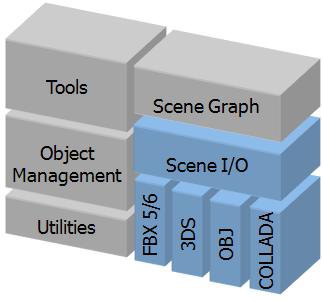

FBX SDK implements Scene I/O using a plug-in architecture. This makes it relatively easy to extend FBX SDK so that it supports an additional file format (usually called a"custom"file format) of your own design.

Sample programMyOwnReaderWriter(seeSample programs) shows how to use FBX SDK to write and read"CustomWriter"files, which use file extension.abc.

In general, to support your own custom file format, you must:

• Implement your own writer class (seeMyOwnWriter.cppand.h).
• Implement your own reader class (seeMyOwnReader.cppand.h).

You must also use classKFbxIOPluginRegistry(seeMyOwnWriterReaderPlugin.cppand.h) to:

• Register your reader and writer as a Scene I/O plug-in.
• Register your own file extension (which need not be unique).
• Register your own file description (which must be unique).

TheMyOwnWriterReaderfolder does not contain a stand-alone sample program. Instead, it contains sample functions that supportCustomWriterfiles. The sample functions are in turn used by other sample programs (ExportScene05,ImportScene, andViewScene) to write and readCustomWriterfiles.

See alsoExtending FBX or Collada file formatson this page.

Extending FBX or Collada file formats

FBX Extensions SDK allows you to extend FBX file format (versions 5 and 6) and the Collada file format. You can:

• Extend the FBX and/or Collada file format to support additional kinds of data.
• Extend the functionality of the FBX plug-ins for 3ds Max/Maya to support the reading and writing of files that use your extended file format.
• Use FBX SDK directly to read and write files that use your extended file format, without passing through 3ds Max or Maya.

FBX Extensions SDK contains:

• Source code and project files for the I/O plug-ins that read and write scenes to FBX files.
• Source code and project files for the I/O plug-ins that read and write scenes to Collada files.
• Library files that link to the 3ds Max/Maya plug-ins.
• Documentation

You can download FBX Extensions SDK by going towww.autodesk.com/fbx.
