Export > Include > Geometry >

Split Per-Vertex Normals





Activate this option in order to split geometry vertex Normals based on edge continuity.

Note This option only applies to older MotionBuilder workflows so you can ensure visual fidelity of surface continuity. It lets you transfer hard edge information to MotionBuilder. This transfer is required because of a MotionBuilder limitation found in versions 2010 and earlier.

Do not use this option if you do not require hard edges in MotionBuilder, since this operation duplicates vertex information and converts geometry.

When Do I Use This?

Use this option to preserve whether edges are hard (divided) or not (continuous) when you operate between 3ds Max or Maya and MotionBuilder 2010 and earlier. If you disable this option, all Smoothing Groups in 3ds Max are ignored as well as all hard/soft edge information in Maya.

For example, a 3ds Max-created box that would normally have defined edges would lose them, with all faces visually connected, without visible edges dividing them, in MotionBuilder. This is result is hardly noticeable for organic objects, but is very noticeable on hard surfaces such as tables and cars, and so on.

See the Split per-vertex Normals workflow to import FBX files exported from 3ds Max into MotionBuilder with proper edge continuity while retaining the original 3ds Max edge continuity for import back into 3ds Max.

Split per-vertex Normals workflow:

  1. Export from 3ds Max with the Split per-vertex Normals option activated.
  2. Import your scene in MotionBuilder using FBX File Import, finalize your animation and click Save to resave the FBX file.
  3. In 3ds Max, import the FBX file with your original 3ds Max scene open. Choose Include File content Update scene elements to import/update only the animation in the scene.

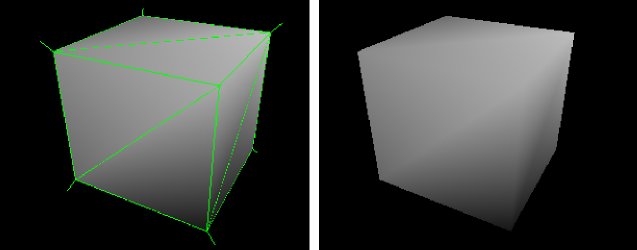

(Above) Split per-vertex Normals option disabled on export produces this result in MotionBuilder 2010 and earlier.

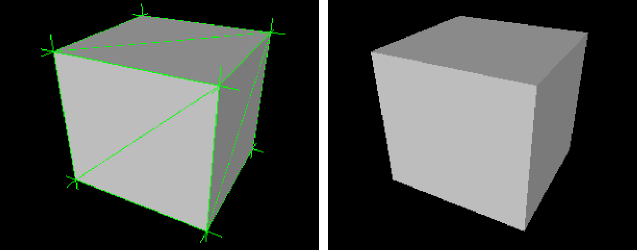

(Above) Split per-vertex Normals option activated on export produces this result in MotionBuilder 2010 and earlier.
