kfcurveglobal.h File Reference

Detailed Description

#include <fbxfilesdk/components/kfcurve/kfcurve_h.h>
#include <fbxfilesdk/components/kbaselib/kaydara.h>
#include <fbxfilesdk/components/kbaselib/klib/karrayul.h>
#include <fbxfilesdk/components/kbaselib/klib/ktime.h>
#include <fbxfilesdk/components/kfcurve/kfcurve_forward.h>
#include <fbxfilesdk/components/kfcurve/kfcurve.h>
#include <fbxfilesdk/fbxfilesdk_nsbegin.h>
#include <fbxfilesdk/fbxfilesdk_nsend.h>

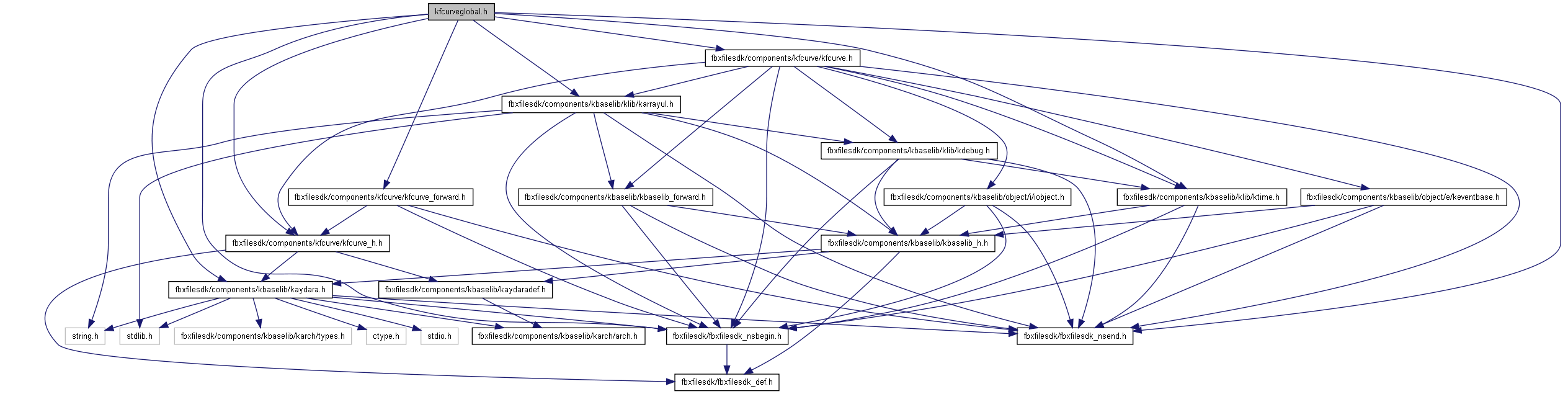

Include dependency graph for kfcurveglobal.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.


Classes
class	KSmartPlotOptions
	KSmartPlotOptions. More...
class	KMergeLayerOptions
	KMergeLayerOptions. More...
Functions
KFBX_DLL void	KFCurve_PlotInLayers (HKFCurveNode pParentNode, KArrayTemplate< int > *pSourceLayers, int pDestLayer, kUInt pOptions, KTime pStart, KTime pStop, KTime pPlotPeriod, HKFCurveNode pDestinationNode, HKFCurveNode pTotalNode, bool pUseTimeWarp, HKSmartPlotOptions pSmartPlotOptions=NULL)
	Plots inside a curvenode.
KFBX_DLL bool	AxisAlignmentInEulerAngle (double pAB[3], double pA[3], double pB[3], double pAngles[3])
	Calculate the euler rotation required to align axis pAB-pA on pAB-pB.
KFBX_DLL void	KFCURVE_BreakTangents (HKFCurveNode pFCurveNode, HKFCurveNode pReferenceFCurveNode, KTime pEpsilonTime, double pTangentThreshold)
	Compare the FCurve with the reference FCurve and break the tangents when necessary so that both FCurves match.
KFBX_DLL void	KFCURVE_IncreaseFidelity (HKFCurveNode pFCurveNode, HKFCurveNode pReferenceFCurveNode, double pFidelityThreshold, int pSegmentCount, bool pBreakTangents, KTime pEpsilonTime, double pTangentThreshold, bool pSyncAddedKeys=false, KArrayTemplate< HKFCurve > pSyncWithFCurves=NULL, KArrayTemplate< HKFCurve > pSyncWithReferenceFCurves=NULL)
	Compare the FCurve with the reference FCurve and add keys when necessary so that both FCurves match.
KFBX_DLL bool	KFCURVE_IsAllSameInterpolation (HKFCurveNode pFCurveNode, kFCurveInterpolation pInterpolation, bool pAllLayer)
	Determined if all the keys in the underlying KFCurveNode have the same interpolation type.
KFBX_DLL void	KFCURVE_ConstantCurveMerge (HKFCurveNode pDstNode, HKFCurveNode pSrcNode, KTime pStart, KTime pStop)
	Smart merge version for curves that have only constant keys.

Function Documentation

KFBX_DLL bool AxisAlignmentInEulerAngle	(	double	pAB[3],
		double	pA[3],
		double	pB[3],
		double	pAngles[3]
	)

Calculate the euler rotation required to align axis pAB-pA on pAB-pB.

Parameters:

	pAB	The intersection of the 2 axis.
	pA	A point on axis to be aligned.
	pB	A point on reference axis.
	pAngles	Resulting euler angles.

Returns:: how the operation succeed.

KFBX_DLL void KFCURVE_BreakTangents	(	HKFCurveNode	pFCurveNode,
		HKFCurveNode	pReferenceFCurveNode,
		KTime	pEpsilonTime,
		double	pTangentThreshold
	)

Compare the FCurve with the reference FCurve and break the tangents when necessary so that both FCurves match.

Parameters:

	pFCurveNode	FCurveNode to modify.
	pReferenceFCurveNode	FCurveNode we use as the reference.
	pEpsilonTime	Epsilon time used to evaluate the tangents.
	pTangentThreshold	Threshold used when comparing tangents. If the difference is over the threshold, we break the tangent.

KFBX_DLL void KFCURVE_ConstantCurveMerge	(	HKFCurveNode	pDstNode,
		HKFCurveNode	pSrcNode,
		KTime	pStart,
		KTime	pStop
	)

Smart merge version for curves that have only constant keys.

The current implementation of SmartMerge does not work very well with different types of constant keys.

Parameters:

	pDstNode	The Destination KFCurveNode in which all layers will be merged.
	pSrcNode	Multi-layered KFCurveNode that has to be merged
	pStart	Merge start time
	pStop	Merge stop time

KFBX_DLL void KFCURVE_IncreaseFidelity	(	HKFCurveNode	pFCurveNode,
		HKFCurveNode	pReferenceFCurveNode,
		double	pFidelityThreshold,
		int	pSegmentCount,
		bool	pBreakTangents,
		KTime	pEpsilonTime,
		double	pTangentThreshold,
		bool	pSyncAddedKeys = `false`,
		KArrayTemplate< HKFCurve > *	pSyncWithFCurves = `NULL`,
		KArrayTemplate< HKFCurve > *	pSyncWithReferenceFCurves = `NULL`
	)

Compare the FCurve with the reference FCurve and add keys when necessary so that both FCurves match.

Parameters:

	pFCurveNode	FCurveNode to modify.
	pReferenceFCurveNode	FCurveNode we use as the reference.
	pFidelityThreshold	Threshold used when comparing values. If the difference is over the threshold, we add a new key.
	pSegmentCount	Number of segments we divide the curve between every pairs of keys.
	pBreakTangents	True if we should break the tangents when they don't match the reference.
	pEpsilonTime	Epsilon time used to evaluate the tangents.
	pTangentThreshold	Threshold used when comparing tangents. If the difference is over the threshold, we break the tangent.
	pSyncAddedKeys	True if fidelity keys should be added to all FCurves of a vector.
	pSyncWithFCurves	For internal use, leave to NULL.
	pSyncWithReferenceFCurves	For internal use, leave to NULL.

KFBX_DLL bool KFCURVE_IsAllSameInterpolation	(	HKFCurveNode	pFCurveNode,
		kFCurveInterpolation	pInterpolation,
		bool	pAllLayer
	)

Determined if all the keys in the underlying KFCurveNode have the same interpolation type.

Parameters:

	pFCurveNode	FCurveNode to check.
	pInterpolation	The interpolation type we are querying for.
	pAllLayer	True if check is in all layers.

Returns:: True if the all all have pInterpolation type.

KFBX_DLL void KFCurve_PlotInLayers	(	HKFCurveNode	pParentNode,
		KArrayTemplate< int > *	pSourceLayers,
		int	pDestLayer,
		kUInt	pOptions,
		KTime	pStart,
		KTime	pStop,
		KTime	pPlotPeriod,
		HKFCurveNode	pDestinationNode,
		HKFCurveNode	pTotalNode,
		bool	pUseTimeWarp,
		HKSmartPlotOptions	pSmartPlotOptions = `NULL`
	)

Plots inside a curvenode.

Plot is risky for rotations because they are not commutative, so make sure layers to be plot are successive !!!

Parameters:

	pParentNode	The node containing all layers.
	pSourceLayers	Layers to be plotted.
	pDestLayer	Layers to be plotted on this layer.
	pOptions	Flags to set the behaviour.
	pStart	Start time of the plot.
	pStop	Stop time of the plot.
	pPlotPeriod
	pDestinationNode
	pTotalNode
	pUseTimeWarp
	pSmartPlotOptions
