KFbxVideo Class Reference

#include <kfbxvideo.h>

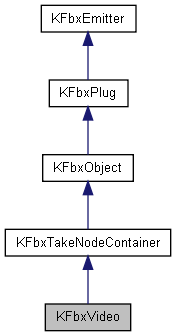

Inheritance diagram for KFbxVideo:

[legend]

List of all members.

---

Detailed Description

FBX SDK video class.

Definition at line 61 of file kfbxvideo.h.

Video attributes Management
enum	EInterlaceMode
	Video interlace modes. More...
enum	EAccessMode
	Video clip access mode. More...
void	ImageTextureSetMipMap (bool pUseMipMap)
	Set the use of MipMap on the video.
bool	ImageTextureGetMipMap ()
	Retrieve use MipMap state.
bool	SetFileName (char const *pName)
	Specify the Video full filename.
KString	GetFileName ()
	Retrieve the Video full filename.
bool	SetRelativeFileName (char const *pName)
	Specify the Video relative filename.
char *	GetRelativeFileName ()
	Retrieve the Video relative filename.
double	GetFrameRate ()
	Retrieve the Frame rate of the video clip.
int	GetLastFrame ()
	Retrieve the last frame of the video clip.
int	GetWidth ()
	Retrieve the clip width.
int	GetHeight ()
	Retrieve the clip height.
void	SetStartFrame (int pStartFrame)
	Set the start frame of the video clip.
int	GetStartFrame ()
	Retrieve the start frame of the video clip.
void	SetStopFrame (int pStopFrame)
	Set the stop frame of the video clip.
int	GetStopFrame ()
	Retrieve the stop frame of the video clip.
void	SetPlaySpeed (double pPlaySpeed)
	Set the play speed of the video clip.
double	GetPlaySpeed ()
	Retrieve the play speed of the video clip.
void	SetOffset (KTime pTime)
	Set the time offset.
KTime	GetOffset ()
	Video interlace modes.
void	SetFreeRunning (bool pState)
	Set the Free Running state of the video clip.
bool	GetFreeRunning ()
	Retrieve the Free Running state.
void	SetLoop (bool pLoop)
	Set the Loop state of the video clip.
bool	GetLoop ()
	Retrieve the Loop state.
void	SetInterlaceMode (EInterlaceMode pInterlaceMode)
	Set the Interlace mode.
EInterlaceMode	GetInterlaceMode ()
	Retrieve the Interlace mode.
void	SetAccessMode (EAccessMode pAccessMode)
	Set the clip Access Mode.
EAccessMode	GetAccessMode ()
	Retrieve the clip Access Mode.
Error Management
enum	EError
	Error identifiers. More...
KError &	GetError ()
	Retrieve error object.
EError	GetLastErrorID () const
	Get last error code.
const char *	GetLastErrorString () const
	Get last error string.
Reset vedio
void	Reset ()
	Reset the video to default values.

---

Member Enumeration Documentation

enum EInterlaceMode

Video interlace modes.

• Node
• Fields
• HalfEven
• HalfOdd
• FullEven
• FullOdd
• FullEvenOdd
• FullOddEven

Definition at line 216 of file kfbxvideo.h.

enum EAccessMode

Video clip access mode.

• Disk
• Memory
• DiskAsync

Definition at line 244 of file kfbxvideo.h.

enum EError

Error identifiers.

• eTAKE_NODE_ERROR
• eERROR_COUNT

Definition at line 277 of file kfbxvideo.h.

---

Member Function Documentation

void Reset

(

)

Reset the video to default values.

void ImageTextureSetMipMap

(

bool

pUseMipMap

)

Set the use of MipMap on the video.

Parameters:

pUseMipMap

If true, use MipMap on the video.

bool ImageTextureGetMipMap

(

)

Retrieve use MipMap state.

Returns:

MipMap flag state.

bool SetFileName

(

char const *

pName

)

Specify the Video full filename.

Parameters:

pName

Video full filename.

Returns:

True,if update successfully, false otherwise.

Remarks:

Update the texture filename if the connection exists.

KString GetFileName

(

)

Retrieve the Video full filename.

Returns:

Video full filename.

bool SetRelativeFileName

(

char const *

pName

)

Specify the Video relative filename.

Parameters:

pName

Video relative filename.

Returns:

True, if update successfully, false otherwise.

Remarks:

Update the texture filename if the connection exists.

char* GetRelativeFileName

(

)

Retrieve the Video relative filename.

Returns:

Video relative filename.

double GetFrameRate

(

)

Retrieve the Frame rate of the video clip.

Returns:

Frame rate.

int GetLastFrame

(

)

Retrieve the last frame of the video clip.

Returns:

Last frame number.

int GetWidth

(

)

Retrieve the clip width.

Returns:

Video image width.

int GetHeight

(

)

Retrieve the clip height.

Returns:

Video image height.

void SetStartFrame

(

int

pStartFrame

)

Set the start frame of the video clip.

Parameters:

pStartFrame

Start frame number.

Remarks:

The parameter value is not checked. It is the responsibility of the caller to deal with bad frame numbers.

int GetStartFrame

(

)

Retrieve the start frame of the video clip.

Returns:

Start frame number.

void SetStopFrame

(

int

pStopFrame

)

Set the stop frame of the video clip.

Parameters:

pStopFrame

Stop frame number.

Remarks:

The parameter value is not checked. It is the responsibility of the caller to deal with bad frame numbers.

int GetStopFrame

(

)

Retrieve the stop frame of the video clip.

Returns:

Stop frame number.

void SetPlaySpeed

(

double

pPlaySpeed

)

Set the play speed of the video clip.

Parameters:

pPlaySpeed

Playback speed of the clip.

Remarks:

The parameter value is not checked. It is the responsibility of the caller to deal with bad playback speed values.

double GetPlaySpeed

(

)

Retrieve the play speed of the video clip.

Returns:

Playback speed.

void SetOffset

(

KTime

pTime

)

Set the time offset.

The offset can be used to shift the playback start time of the clip.

Parameters:

pTime

Time offset of the clip.

KTime GetOffset

(

)

Video interlace modes.

• Node
• Fields
• HalfEven
• HalfOdd
• FullEven
• FullOdd
• FullEvenOdd
• FullOddEven

void SetFreeRunning

(

bool

pState

)

Set the Free Running state of the video clip.

The Free Running flag can be used by a client application to implement a playback scheme that is independent of the main timeline.

Parameters:

pState

State of the Free running flag.

bool GetFreeRunning

(

)

Retrieve the Free Running state.

Returns:

Current free running flag.

void SetLoop

(

bool

pLoop

)

Set the Loop state of the video clip.

The Loop flag can be used by a client application to implement the loop playback of the video clip.

Parameters:

pLoop

State of the loop flag.

bool GetLoop

(

)

Retrieve the Loop state.

Returns:

Current loop flag.

void SetInterlaceMode

(

EInterlaceMode

pInterlaceMode

)

Set the Interlace mode.

Parameters:

pInterlaceMode

Interlace mode identifier.

EInterlaceMode GetInterlaceMode

(

)

Retrieve the Interlace mode.

Returns:

Interlace mode identifier.

void SetAccessMode

(

EAccessMode

pAccessMode

)

Set the clip Access Mode.

Parameters:

pAccessMode

Clip access mode identifier.

EAccessMode GetAccessMode

(

)

Retrieve the clip Access Mode.

Returns:

Clip access mode identifier.

KError& GetError

(

)

Retrieve error object.

Returns:

Reference to error object.

EError GetLastErrorID

(

)

const

Get last error code.

Returns:

Last error code.

const char* GetLastErrorString

(

)

const

Get last error string.

Returns:

Textual description of the last error.
