KFbxLibrary Class Reference

#include <kfbxlibrary.h>

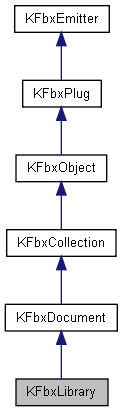

Inheritance diagram for KFbxLibrary:

[legend]

List of all members.

---

Detailed Description

This object represents a shading node library.

Definition at line 53 of file kfbxlibrary.h.

Public Member Functions
KFbxLibrary *	GetParentLibrary (void) const
	Get a handle on the parent library if exists.
void	LocalizationBaseNamePrefix (const char *pPrefix)
	The prefix must not include the dash and language code, nor must it contain the extension.
KString	LocalizationBaseNamePrefix () const
	Retrieve the localization prefix.
bool	AddSubLibrary (KFbxLibrary *pSubLibrary)
	Adds a sub Library.
bool	RemoveSubLibrary (KFbxLibrary *pSubLibrary)
	Removes a sub Library.
int	GetSubLibraryCount (void) const
	Gets the total number of sub libraries.
KFbxLibrary *	GetSubLibrary (int pIndex) const
	Sub library accessor.
int	GetSubLibraryCount (const KFbxImplementationFilter &pCriteria) const
	Get the number of sub libraries that contains shading node according to their implementations.
KFbxLibrary *	GetSubLibrary (int pIndex, const KFbxImplementationFilter &pCriteria) const
	Get a handle on the (pIndex)th sub-library that corresponds to the given filtering parameters.
bool	ImportAssets (KFbxLibrary *pSrcLibrary)
	Transfer ownership from the src library to us for all assets meeting the filter.
bool	ImportAssets (KFbxLibrary *pSrcLibrary, const KFbxCriteria &pAssetFilter)
	Transfer ownership from the src library to us for all assets meeting the filter.
template<class T>
T *	InstantiateMember (T const *pFBX_TYPE, const KFbxObjectFilter &pFilter, bool pRecurse=true, KFbxObject *pOptContainer=NULL)
	Return a new instance of a member of the library.
KFbxLocalizationManager &	GetLocalizationManager () const
	Get the localization manager for the library.
virtual const char *	Localize (const char *pID, const char *pDefault=NULL) const
	Localization helper function.
bool	AddShadingObject (KFbxObject *pShadingObject)
	Adds a shading node.
bool	RemoveShadingObject (KFbxObject *pShadingObject)
	Removes a shading node.
int	GetShadingObjectCount (void) const
	Gets the total number of shading nodes.
KFbxObject *	GetShadingObject (int pIndex) const
	Shading node accessor.
int	GetShadingObjectCount (const KFbxImplementationFilter &pCriteria) const
	Get the number of shading nodes according to their implementations.
KFbxObject *	GetShadingObject (int pIndex, const KFbxImplementationFilter &pCriteria) const
	Get a handle on the (pIndex)th sub-library that corresponds to the given filtering parameters.
Static Public Member Functions
static KFbxCriteria	GetAssetCriteriaFilter ()
	Returns a criteria filter which can be used to .
static KFbxCriteria	GetAssetDependentsFilter ()
	Returns a filter which should be used when cloning / exporting objects -- this filters out objects that should stay in the asset library.

---

Member Function Documentation

KFbxLibrary* GetParentLibrary

(

void

)

const

Get a handle on the parent library if exists.

Reimplemented from KFbxObject.

void LocalizationBaseNamePrefix

(

const char *

pPrefix

)

The prefix must not include the dash and language code, nor must it contain the extension.

But it can contain a folder, or sub-folder, if you want, such as:

locales/mydocloc

This will be resolved using the XRef Manager, with priority given to the library's .fbm folder, if it has one.

Parameters:

pPrefix

New prefix to be set.

KString LocalizationBaseNamePrefix

(

)

const

Retrieve the localization prefix.

bool AddSubLibrary

(

KFbxLibrary *

pSubLibrary

)

Adds a sub Library.

Parameters:

pSubLibrary

The sub library to be added.

Returns:

True if success, false otherwise.

bool RemoveSubLibrary

(

KFbxLibrary *

pSubLibrary

)

Removes a sub Library.

Parameters:

pSubLibrary

The sub library to be removed.

Returns:

True if success, false otherwise.

int GetSubLibraryCount

(

void

)

const

Gets the total number of sub libraries.

KFbxLibrary* GetSubLibrary

(

int

pIndex

)

const

Sub library accessor.

Parameters:

pIndex

The sub library index.

int GetSubLibraryCount

(

const KFbxImplementationFilter &

pCriteria

)

const

Get the number of sub libraries that contains shading node according to their implementations.

Parameters:

pCriteria

filtering criteria that identifies the kind of implementations to take into account.

Returns:

the number of sub-libraries corresponding to the filtering parameters

KFbxLibrary* GetSubLibrary	(	int	pIndex,
		const KFbxImplementationFilter &	pCriteria
	)			const

Get a handle on the (pIndex)th sub-library that corresponds to the given filtering parameters.

Parameters:

	pIndex
	pCriteria	filtering criteria that identifies the kind of implementations to take into account.

Returns:

a handle on the (pIndex)th sub-library that corresponds to the given filtering parameters

static KFbxCriteria GetAssetCriteriaFilter

(

)

[static]

Returns a criteria filter which can be used to .

.. filter ... objects when iterating items in the library; only real 'assets' will be returned, rather than FBX support objects. This includes, at this time, lights, environments, materials and textures (maps) This is typically used to IMPORT from a library.

static KFbxCriteria GetAssetDependentsFilter

(

)

[static]

Returns a filter which should be used when cloning / exporting objects -- this filters out objects that should stay in the asset library.

This is typically used to EXPORT from a library (or CLONE from a library, although CloneAsset does all the nitty gritty for you)

bool ImportAssets

(

KFbxLibrary *

pSrcLibrary

)

Transfer ownership from the src library to us for all assets meeting the filter.

Name clashing and other details are assumed to have been resolved beforehand.

External asset files required by the assets are copied over -- not moved. It's up to the owner of pSrcLibrary to clean up (maybe they can't; the files may be on a read-only transport). If this document hasn't been committed yet, then the assets WON'T be copied.

Returns true if no assets meeting the filter were skipped. If there are no assets meeting the filter, then true would be returned, as nothing was skipped.

This may leave the source library in an invalid state, if for instance you decide to transfer texture objects to our library, but you keep materials in the source library.

To safeguard against this, the transfer will disconnect objects, and you'd thus be left with materials without textures.

When transferring an object, all its dependents come with it. If you move a material, it WILL grab its textures. Just not the other way around.

Parameters:

pSrcLibrary

The source library.

bool ImportAssets	(	KFbxLibrary *	pSrcLibrary,
		const KFbxCriteria &	pAssetFilter
	)

Transfer ownership from the src library to us for all assets meeting the filter.

Name clashing and other details are assumed to have been resolved beforehand.

External asset files required by the assets are copied over -- not moved. It's up to the owner of pSrcLibrary to clean up (maybe they can't; the files may be on a read-only transport). If this document hasn't been committed yet, then the assets WON'T be copied.

Returns true if no assets meeting the filter were skipped. If there are no assets meeting the filter, then true would be returned, as nothing was skipped.

This may leave the source library in an invalid state, if for instance you decide to transfer texture objects to our library, but you keep materials in the source library.

To safeguard against this, the transfer will disconnect objects, and you'd thus be left with materials without textures.

When transferring an object, all its dependents come with it. If you move a material, it WILL grab its textures. Just not the other way around.

Parameters:

	pSrcLibrary	The source library.
	pAssetFilter	The asset filter.

T * InstantiateMember	(	T const *	pFBX_TYPE,
		const KFbxObjectFilter &	pFilter,
		bool	pRecurse = true,
		KFbxObject *	pOptContainer = NULL
	)			[inline]

Return a new instance of a member of the library.

This instantiates the first object found that matches the filter.

Parameters:

	pFBX_TYPE	The type of member
	pFilter	A user specified filter
	pRecurse	Check sub-libraries
	pOptContainer	Optional container for the cloned asset

Returns:

A new instance of the member. Note that the new member is not inserted into this library.

Definition at line 309 of file kfbxlibrary.h.

References KFbxCollection::GetMember(), KFbxCollection::GetMemberCount(), InstantiateMember(), and KFbxObjectFilter::Match().

Referenced by InstantiateMember().

KFbxLocalizationManager& GetLocalizationManager

(

)

const

Get the localization manager for the library.

virtual const char* Localize	(	const char *	pID,
		const char *	pDefault = NULL
	)			const [virtual]

Localization helper function.

Calls the FBX SDK manager implementation. sub-classes which manage their own localization could over-ride this.

Parameters:

	pID	the identifier for the text to localize.
	pDefault	the default text. Uses pID if NULL.

Returns:

the potentially localized text. May return the parameter passed in.

Reimplemented from KFbxObject.

bool AddShadingObject

(

KFbxObject *

pShadingObject

)

Adds a shading node.

Parameters:

pShadingObject

The shading node to be added.

bool RemoveShadingObject

(

KFbxObject *

pShadingObject

)

Removes a shading node.

Parameters:

pShadingObject

The shading node to be removed.

int GetShadingObjectCount

(

void

)

const

Gets the total number of shading nodes.

KFbxObject* GetShadingObject

(

int

pIndex

)

const

Shading node accessor.

Parameters:

pIndex

Shading node index.

Returns:

The (pIndex)th shading node.

int GetShadingObjectCount

(

const KFbxImplementationFilter &

pCriteria

)

const

Get the number of shading nodes according to their implementations.

Parameters:

pCriteria

filtering criteria that identifies the kind of implementations to take into account.

Returns:

the number of shading nodes corresponding to the filtering parameters

KFbxObject* GetShadingObject	(	int	pIndex,
		const KFbxImplementationFilter &	pCriteria
	)			const

Get a handle on the (pIndex)th sub-library that corresponds to the given filtering parameters.

Parameters:

	pIndex
	pCriteria	filtering criteria that identifies the kind of implementations to take into account.

Returns:

a handle on the (pIndex)th shading node that corresponds to the given filtering parameters
