KFbxLayerElementUserData Class Reference

#include <kfbxlayer.h>

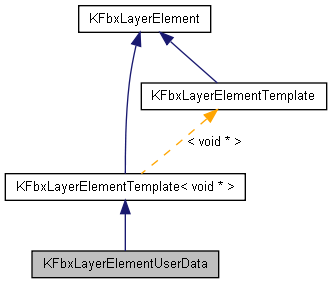

Inheritance diagram for KFbxLayerElementUserData:

[legend]

List of all members.

---

Detailed Description

Layer element for mapping custom user data to a geometry.

This layer element is different from the other types of layer elements in that it has multiple direct arrays. There is one array for each user data attribute. Each array is indexed by the index array.

Definition at line 1473 of file kfbxlayer.h.

Public Member Functions
KFbxLayerElementArrayTemplate < void * > *	GetDirectArrayVoid (int pIndex, bool *pStatus=NULL)
	Returns the direct array with the specified attribute index.
KFbxLayerElementArrayTemplate < void * > const *	GetDirectArrayVoid (int pIndex, bool *pStatus=NULL) const
	Returns the direct array with the specified attribute index.
KFbxLayerElementArrayTemplate < void * > *	GetDirectArrayVoid (const char *pName, bool *pStatus=NULL)
	Returns the direct array with the specified attribute name.
KFbxLayerElementArrayTemplate < void * > const *	GetDirectArrayVoid (const char *pName, bool *pStatus=NULL) const
	Returns the direct array with the specified attribute name.
KFbxDataType	GetDataType (int pIndex) const
	Returns the data type for the specified index.
KFbxDataType	GetDataType (const char *pName) const
	Returns the specified attribute data type.
const char *	GetDataName (int pIndex) const
	Returns the attribute name at the specified index.
void	ResizeAllDirectArrays (int pSize)
	Resizes all direct arrays to the specified size.
void	RemoveFromAllDirectArrays (int pIndex)
	Removes a single element at pIndex from every direct array.
int	GetArrayCount (int pIndex) const
	Returns the direct array count for the attribute at pIndex.
int	GetId () const
	Queries the this layer element's ID.
int	GetDirectArrayCount () const
	Returns this layer element's direct array count.
KFbxLayerElementUserData &	operator= (KFbxLayerElementUserData const &pOther)
	Assignment operator which performs a deep copy.
bool	Clear ()
	Removes all data from this layer element.
virtual int	MemorySize () const
	Queries the amount of memory used by this object as well as its content.
Static Public Member Functions
static KFbxLayerElementUserData *	Create (KFbxLayerContainer *pOwner, char const *pName, int pId, KArrayTemplate< KFbxDataType > &pDataTypes, KArrayTemplate< const char * > &pDataNames)
	Allocation method.
static KFbxLayerElementUserData *	Create (KFbxLayerContainer *pOwner, KFbxLayerElementUserData const &pOther)
	Allocation method.

---

Member Function Documentation

static KFbxLayerElementUserData* Create	(	KFbxLayerContainer *	pOwner,
		char const *	pName,
		int	pId,
		KArrayTemplate< KFbxDataType > &	pDataTypes,
		KArrayTemplate< const char * > &	pDataNames
	)			[static]

Allocation method.

Parameters:

	pOwner	The owner of this layer element.
	pName	The layer element name.
	pId	The layer element ID.
	pDataTypes	Attribute data types of this layer element, one direct array is allocated for each Attribute data type.
	pDataNames	Attribute names of this layer element.

Returns:

A pointer to the layer element or NULL if creation fails.

Remarks:

Only "bool", "int", "float" and "double" are supported.

static KFbxLayerElementUserData* Create	(	KFbxLayerContainer *	pOwner,
		KFbxLayerElementUserData const &	pOther
	)			[static]

Allocation method.

Parameters:

	pOwner	The owner of this layer element.
	pOther	Other layer element from which to copy.

Returns:

A pointer to the layer element or NULL if creation fails.

KFbxLayerElementArrayTemplate<void*>* GetDirectArrayVoid	(	int	pIndex,
		bool *	pStatus = NULL
	)			[inline]

Returns the direct array with the specified attribute index.

Parameters:

	pIndex	Specified attribute index.
	pStatus	A flag to indicate whether the direct array is returned successfully or not.

Returns:

The specified attribute's direct array.

Definition at line 1500 of file kfbxlayer.h.

References KFbxLayerElementTemplate::GetDirectArray().

Referenced by KFbxGetDirectArray().

KFbxLayerElementArrayTemplate<void*> const* GetDirectArrayVoid	(	int	pIndex,
		bool *	pStatus = NULL
	)			const [inline]

Returns the direct array with the specified attribute index.

Parameters:

	pIndex	Specified attribute index.
	pStatus	A flag to indicate whether the direct array is returned successfully or not.

Returns:

The specified attribute's direct array.

Definition at line 1520 of file kfbxlayer.h.

References KFbxLayerElementTemplate::GetDirectArray().

KFbxLayerElementArrayTemplate<void *>* GetDirectArrayVoid	(	const char *	pName,
		bool *	pStatus = NULL
	)			[inline]

Returns the direct array with the specified attribute name.

Parameters:

	pName	Specified attribute name.
	pStatus	A flag to indicate whether the direct array is returned successfully or not.

Returns:

The specified attribute's direct array.

Definition at line 1541 of file kfbxlayer.h.

KFbxLayerElementArrayTemplate<void *> const* GetDirectArrayVoid	(	const char *	pName,
		bool *	pStatus = NULL
	)			const [inline]

Returns the direct array with the specified attribute name.

Parameters:

	pName	Specified attribute name.
	pStatus	A flag to indicate whether the direct array is returned successfully or not.

Returns:

The specified attribute's direct array.

Definition at line 1559 of file kfbxlayer.h.

KFbxDataType GetDataType

(

int

pIndex

)

const [inline]

Returns the data type for the specified index.

Parameters:

pIndex

The index of the attribute being queried

Returns:

The data type, or DTNone if pIndex is out of range

Definition at line 1576 of file kfbxlayer.h.

KFbxDataType GetDataType

(

const char *

pName

)

const [inline]

Returns the specified attribute data type.

Parameters:

pName

The name of the attribute being queried

Returns:

The data type, or DTNone if no attribute has the given name

Definition at line 1588 of file kfbxlayer.h.

const char* GetDataName

(

int

pIndex

)

const [inline]

Returns the attribute name at the specified index.

Parameters:

pIndex

Attribute index

Returns:

The name, or NULL if pIndex is out of range.

Definition at line 1605 of file kfbxlayer.h.

void ResizeAllDirectArrays

(

int

pSize

)

[inline]

Resizes all direct arrays to the specified size.

Parameters:

pSize

The new size of the direct arrays.

Definition at line 1616 of file kfbxlayer.h.

References KFbxLayerElementTemplate::GetDirectArray().

void RemoveFromAllDirectArrays

(

int

pIndex

)

[inline]

Removes a single element at pIndex from every direct array.

Parameters:

pIndex

The index of the element to be removed.

Definition at line 1638 of file kfbxlayer.h.

References KFbxLayerElementTemplate::GetDirectArray().

int GetArrayCount

(

int

pIndex

)

const [inline]

Returns the direct array count for the attribute at pIndex.

Parameters:

pIndex

The attribute index

Returns:

The specified attribute's direct array count.

Definition at line 1661 of file kfbxlayer.h.

References KFbxLayerElementTemplate::GetDirectArray().

int GetId

(

)

const [inline]

Queries the this layer element's ID.

Returns:

The ID expressed as an int

Definition at line 1685 of file kfbxlayer.h.

int GetDirectArrayCount

(

)

const [inline]

Returns this layer element's direct array count.

Returns:

The direct array count expressed as an int.

Remarks:

This count should be equal to the count of user data attributes.

Definition at line 1691 of file kfbxlayer.h.

References KFbxLayerElementTemplate::GetDirectArray().

Referenced by operator=().

KFbxLayerElementUserData& operator=

(

KFbxLayerElementUserData const &

pOther

)

[inline]

Assignment operator which performs a deep copy.

Parameters:

pOther

Other KFbxLayerElementUserData from which to perform a deep copy.

Returns:

This KFbxLayerElementUserData.

Definition at line 1697 of file kfbxlayer.h.

References KFbxLayerElementTemplate::Clear(), KFbxLayerElementTemplate::GetDirectArray(), GetDirectArrayCount(), KFbxLayerElementTemplate::GetIndexArray(), and KFbxLayerElement::GetReferenceMode().

bool Clear

(

)

[inline, virtual]

Removes all data from this layer element.

Returns:

True always

Reimplemented from KFbxLayerElementTemplate< void * >.

Definition at line 1759 of file kfbxlayer.h.

References KFbxLayerElementTemplate::Clear(), and KFbxLayerElementTemplate::GetDirectArray().

virtual int MemorySize

(

)

const [inline, virtual]

Queries the amount of memory used by this object as well as its content.

It does not consider the content pointed.

Returns:

The amount of memory used.

Definition at line 1792 of file kfbxlayer.h.
