KFbxExporter Class Reference

#include <kfbxexporter.h>

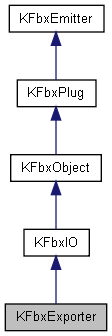

Inheritance diagram for KFbxExporter:

[legend]

List of all members.

---

Detailed Description

Class to export SDK objects into an FBX file.

Typical workflow for using the KFbxExporter class:

1. create an exporter
2. initialize it with a file name
3. set numerous states, take information, defining how the exporter will behave
4. call KFbxExporter::Export() with the entity to export

Definition at line 98 of file kfbxexporter.h.

Export Functions
virtual bool	Initialize (const char *pFileName, int pFileFormat=-1)
	Initialize object.
KFbxStreamOptions *	GetExportOptions ()
	Get file export options settings.
bool	Export (KFbxDocument *pDocument, KFbxStreamOptions *pStreamOptions=NULL)
	Export the document to the currently created file.
void	ReleaseExportOptions (KFbxStreamOptions *pStreamOptions)
	Release the file export options.
File Format
K_DEPRECATED void	SetFileFormat (int pFileFormat)
	Set the exported file format.
int	GetFileFormat ()
	Get the format of the exported file.
bool	IsFBX ()
	Return true if the file format is a recognized FBX format.
char const *const *	GetCurrentWritableVersions ()
	Get writable version for the current file format.
bool	SetFileExportVersion (KString pVersion, KFbxSceneRenamer::ERenamingMode pRenamingMode)
	Set file version for a given file format.
void	SetResamplingRate (double pResamplingRate)
	Set the resampling rate (only used when exporting to FBX5.3 and lower).
void	SetDefaultRenderResolution (KString pCamName, KString pResolutionMode, double pW, double pH)
	Set the default rendering resolution.
KFbxFileHeaderInfo *	GetFileHeaderInfo ()
	Get the complete file header information.

---

Member Function Documentation

virtual bool Initialize	(	const char *	pFileName,
		int	pFileFormat = -1
	)			[virtual]

Initialize object.

Parameters:

	pFileName	Name of file to access.
	pFileFormat	file format identifier User does not need to specify it by default. if not specified, plugin will detect the file format according to file suffix automatically.

Returns:

true on success, false otherwise.

Remarks:

To identify the error that occurred, call KFbxIO::GetLastErrorID().

KFbxStreamOptions* GetExportOptions

(

)

Get file export options settings.

Returns:

Pointer to file export options or NULL on failure.

Remarks:

Caller gets ownership of the returned structure.

bool Export	(	KFbxDocument *	pDocument,
		KFbxStreamOptions *	pStreamOptions = NULL
	)

Export the document to the currently created file.

Parameters:

	pDocument	Document to export.
	pStreamOptions	Pointer to file export options.

Returns:

true on success, false otherwise.

Remarks:

To identify the error, call KFbxIO::GetLastErrorID().

void ReleaseExportOptions

(

KFbxStreamOptions *

pStreamOptions

)

Release the file export options.

Parameters:

pStreamOptions

Pointer to file export options.

K_DEPRECATED void SetFileFormat

(

int

pFileFormat

)

Set the exported file format.

Parameters:

pFileFormat

File format identifier.

int GetFileFormat

(

)

Get the format of the exported file.

Returns:

File format identifier.

bool IsFBX

(

)

Return true if the file format is a recognized FBX format.

char const* const* GetCurrentWritableVersions

(

)

Get writable version for the current file format.

Returns:

char**

bool SetFileExportVersion	(	KString	pVersion,
		KFbxSceneRenamer::ERenamingMode	pRenamingMode
	)

Set file version for a given file format.

Parameters:

	pVersion	String description of the file format.
	pRenamingMode	Renaming mode.

Returns:

true if mode is set correctly

void SetResamplingRate

(

double

pResamplingRate

)

[inline]

Set the resampling rate (only used when exporting to FBX5.3 and lower).

Parameters:

pResamplingRate

resampling rate

Definition at line 179 of file kfbxexporter.h.

void SetDefaultRenderResolution	(	KString	pCamName,
		KString	pResolutionMode,
		double	pW,
		double	pH
	)

Set the default rendering resolution.

Parameters:

	pCamName	name of the camera.
	pResolutionMode	resolution mode.
	pW	width.
	pH	height.

KFbxFileHeaderInfo* GetFileHeaderInfo

(

)

Get the complete file header information.

Returns:

valid pointer to the complete header information
