Print Size Wizard



Command entry:Rendering menu Print Size Assistant

The Print Size Wizard feature is useful when you plan to print a rendered image. It lets you specify output size, resolution, and orientation in terms of the printed image; that is, using a standard measuring system rather than pixels. It also indicates the approximate uncompressed size of the image file. You can render directly from the wizard on your computer or over a network, or transfer the settings to the Render Setup dialog.

Procedures

To use the Print Size wizard:

  1. Set up a scene to render.
  2. From the Rendering menu, choose Print Size Assistant.
  3. Choose a preset paper size, or specify a custom size in inches or millimeters. Alternatively, specify an image size in pixels.
  4. Choose or specify a DPI (dots per inch) ratio for the printed output.
  5. Choose an output orientation: Portrait or Landscape.
  6. When ready to render to a file, turn on Save File, click the Files button, and use the resulting Select TIFF File dialog to specify an output image file.
  7. Do one of the following:
    • To render immediately, click Render.
    • To set further rendering properties, click Render Setup.

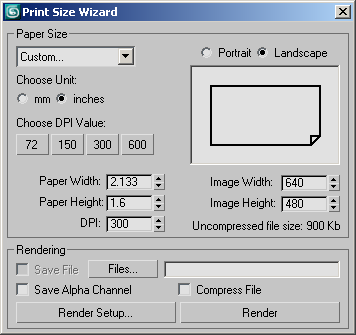

Interface

Paper Size group

drop-down list

The Paper Size drop-down list lets you choose from several standard print resolutions and aspect ratios. Choose one of these formats, or leave it set to Custom to use the other controls in the Paper Size group. These are the options you can choose from on the list:

  • Custom
  • A - 11 x 8.5 in. (at 300 dpi)
  • B - 17 x 11 in. (at 200 dpi)
  • C - 22 x 17 in. (at 150 dpi)
  • D - 34 x 22 in. (at 100 dpi)
  • E - 44 x 34 in. (at 75 dpi)
  • A0 - 1189 x 841 mm (at 75 dpi)
  • A1 - 841 x 594 mm (at 100 dpi)
  • A2 - 594 x 420 mm (at 150 dpi)
  • A3 - 420 x 297 mm (at 200 dpi)
  • A4 - 297 x 210 mm (at 300 dpi)
  • A5 - 210 x 148 mm (at 300 dpi)
  • Letter (11 x 8.5 in. at 300 dpi)
  • Legal (14 x 8.5 in. at 300 dpi)
  • Tabloid (17 x 11 in. at 300 dpi)
    TipYou can customize the Paper Size list by editing the file plugcfg\printwiz.ini . If you choose to edit the file, first be sure to save a backup copy of the original.
Portrait/Landscape

Choose Portrait for vertically oriented output or Landscape for horizontal output. The window image provides a graphic depiction of the orientation.

NoteChanging between Portrait and Landscape simply switches the Width and Height settings. The actual orientation depends on the image dimensions. For example, if you choose Portrait, and then specify a custom size whose width is greater than its height, the resulting orientation will be horizontal.
TipAfter changing this setting, be sure to preview the image using the Show Safe Frames function on the Point-Of-View (POV) viewport label menu. This shows how the output orientation corresponds to the viewport.
Choose Unit

Lets you specify whether the measurement units for Paper Width and Paper Height are in millimeters (mm) or inches.

Choose DPI Value

Provides four buttons for commonly used dots-per-inch settings: 72, 150, 300, and 600. Click one to set it in the DPI property, below.

Paper Width/Height

Specifies the output width and height in mm (millimeters) or inches, depending on which is chosen under Choose Unit.

NoteChanging either setting also changes the corresponding Image size setting.
Image Width/Height

Specifies the output width and height in pixels.

NoteChanging either setting also changes the corresponding Paper size setting.
DPI

Specifies the output resolution in dots per inch. The easiest way to set this is by clicking one of the buttons under Choose DPI Value. If you're using a different resolution, set it here manually.

Only TIFF files support DPI information. If you render to a different image format, you might have to later adjust the image resolution using an image-processing application.

NoteChanging the DPI setting also changes the Image Width/Height settings, keeping the same aspect ratio.
Uncompressed File Size

Displays the size of the rendered TIFF image file if no compression is used.

Rendering group

Rendering directly from the Print Size Wizard allows you to output the current frame to a disk file in TIFF format. This format is commonly used in the publishing industry. To render to a different format, use the wizard's Render Setup button.

Save File

When on, 3ds Max saves the rendered image to disk when you render. Save File is available only after you specify the output file using the Files button. Default=off.

Files

Opens the Select TIFF File dialog, which lets you specify the output file name and location. If, during the current session, you already rendered an image to disk using the Render Setup dialog, the last file name you used appears in this field.

Save Alpha Channel

When on, 3ds Max includes an eight-bit alpha channel in the rendered TIFF file. Default=off.

Compress File

When on, uses compression when saving the file.

Render Setup

Opens the Render Setup dialog and transfers any settings (such as image size) you've made in the Print Size Wizard. Here you can make further changes and then render the scene.

Render

Renders the scene to the Rendered Frame Window. Also renders to a disk file if you've turned on Save File and specified a file name.
