To see linked parameter information in a 3D view

• Click the eye icon and choose Relations in the view.

  If the selected object has a parameter on its transformations that are linked to parameters on other objects, those objects are linked to the selected object by dotted white lines.

  You can click a dotted line to see a list of expressions that involve the linked object. You can identify simple linked parameters by the l_fcv expression, multi-linked parameters by the l_interp expression, and orientation-linked parameters by the l_interpOri expression.

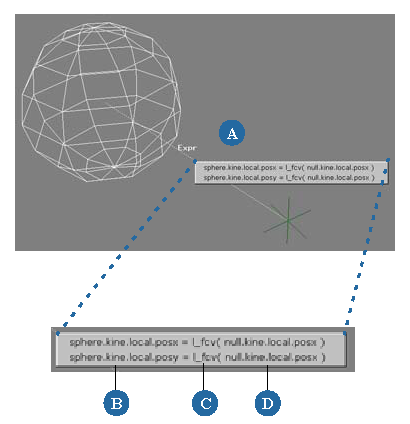

  A	The dotted line indicates an expression involving the other object. Click it to see a list of expressions.
  B	In the expression, linked parameters are on the left.
  C	l_fcv indicates a linked parameter.
  D	The driving parameter is on the right.

To see link information in the schematic view

As is the case with all expressions:

• If an object has linked parameters on its transformations, the letter E is displayed above it.

• For linked parameters, there is also the label L.

• If Show Expressions is on in the view, an object with an expression is linked to objects whose parameters are involved by solid green arrows labelled Expr.

You can select these arrows by clicking and dragging slightly — a list of expressions appear.

E and L labels indicate that there is an expression and a linked parameter on the sphere.

The arrow indicates that an expression is involved with the sphere. Select the arrow for a list of expressions.
