Create Strands




This compound creates continuous shape segments drawn behind a particle, like a strand or trail. It does not create a new set of particles.

Plug this compound's Execute output into an Execute on Emit port of an Emit compound or into an Execute on Trigger port of a State compound, if you're using a state system.

If you want the strands to follow moving particles like a tail, plug the Constrain Strand Length or Align Strand to Particle Trajectory compound into the ICETree node.

For more information, see Creating Strands.

Tasks: Particles/Strands

Output Ports: Execute_on_Emit

Num Segments

The number of segments in each strand. Note that this doesn't affect the overall strand length, just how the strand is divided.

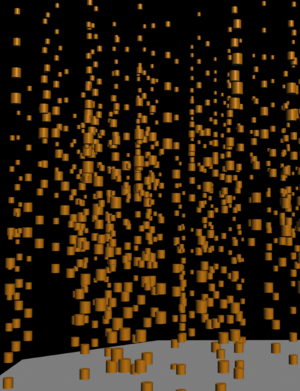

Number of Segments is 5 (no lofting); Strand Length is 1.

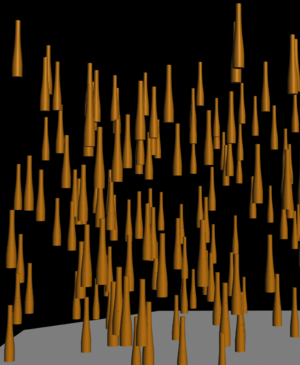

Number of Segments is 20 (no lofting); Strand Length is 1.

Strand Length

The total length of each strand in Softimage units. If you have few segments, there are spaces between each one. With lofting, you can "extrude" the shape along the whole length of the strand.

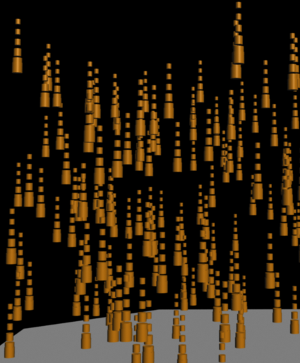

Strand Length is 3 (no lofting); Number of Segments is 5.

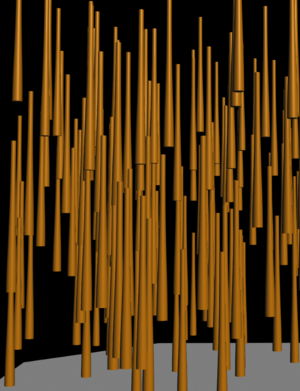

Strand Length is 3, with lofting.

Reverse Strand Direction

Inverts the strand's shape based on the direction of the strand's profile curve.

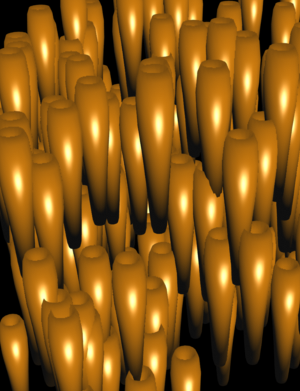

In the image below, Lofting Along Strand with a torus instanced shape with Reverse Strand Direction selected.

Strand Size Profile

This curve defines the size and shape of the strand, starting from the strand's base (point on the left) to the tip (point on the right). By default, the strand's size is the same as its particle's at the base, then tapers off toward the tip.

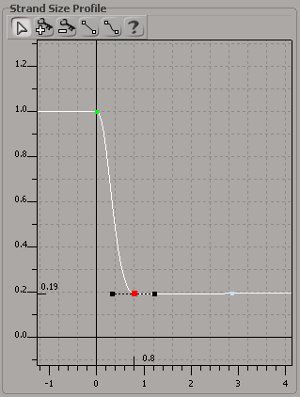

Strand Size Profile curve showing a sharp drop-off from the base (point on the left of the curve) to the tip (selected point).

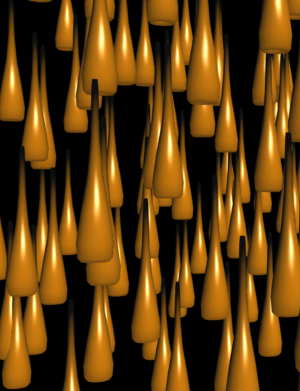

Strand with shape lofted according to the profile curve's shape.

Loft Shape Along Strand

Extrudes the selected particle shape in Y along the strand's length so that it appears to be one continuous segment. This option uses the StrandDeform attribute.

The Box, Cylinder, Capsule, and Cone shape types are currently supported for lofting, as well as instanced shape geometry.

If this option is off, the particle shape is repeated separately at each segment (StrandPosition attribute).

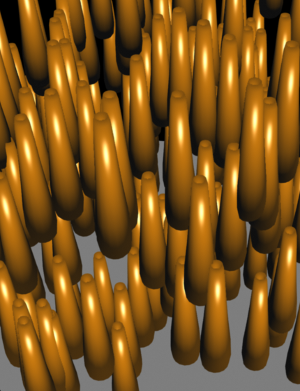

Lofting Along Strand with a torus as instanced geometry.

Lofting Along Strand with a Cylinder shape.



Strand Color Gradient

Sets the color of the strand using a gradient scale that represents the strand.

Note that the color gradient is displayed in the render region only if you have an appropriate color gradient shader set up for the particles in the render tree, such as the Particle Density shader or the Particle Strand Gradient Compound.

  • You can set the color in each box below the gradient by selecting it and then using the color sliders.

  • You can add more boxes by clicking anywhere beneath the gradient, or remove boxes by selecting them and pressing Delete.

  • Set the position of each box by dragging it, or enter a value between 0 and 1 in the Pos text box below.

  • Drag the small circles above the gradient to set the range of each color defined in a box.

Select Strand Color Method

The color channels from which you can choose to be used for the strand color gradient: Set New Color, Lightness, Hue, or Alpha.
